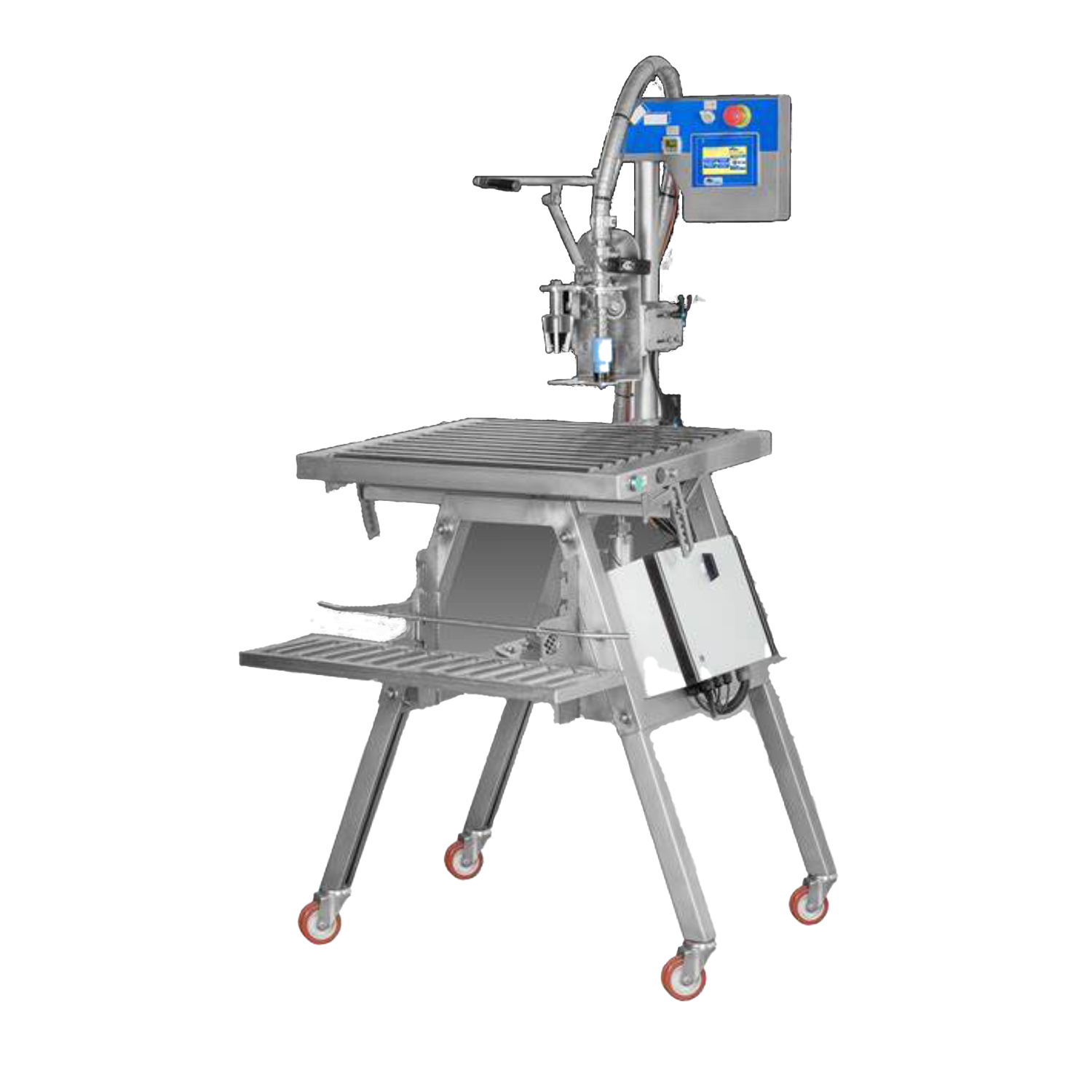

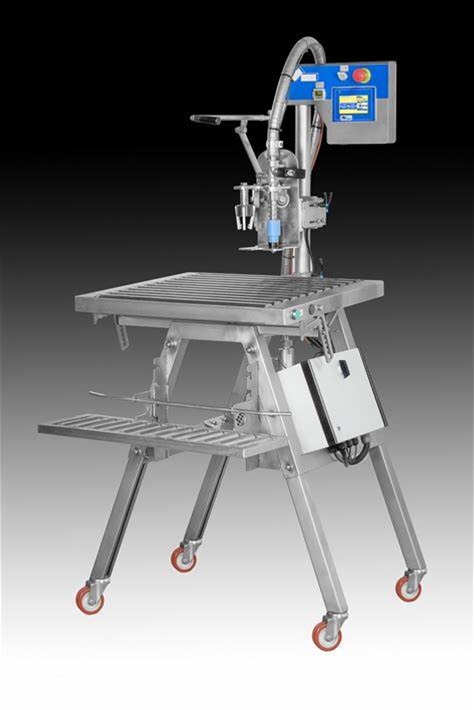

Bag In Box Filler - Easy Start Single Head

The Bag in Box Filler - Easy Start Single Head unit comes equipped with an ergonomic arm for a manual start, uncapping, and capping system. It is designed to fill bags from 1.5L to 20L. Bag types include Film w/ PE Barrier, Barrier Metal Film w/ PET, and EVOH Film with Barrier (and more). It is also compatible with any kind of taps, valves, and caps on the market and is CE Certified.

Constructed with stainless steel and featuring an adjustable roller table, box support, and wheels, it offers durability and mobility. This equipment comes equipped with a centrifugal pump, electromagnetic flow meter, and a touch screen.

With its advanced and user-friendly software system, the Bag in Box Filler (BIB) - Easy Start Arm provides a range of extensive features. These include effortless capacity adjustment, simple parameter customization, professional cleaning through the CIP system, an advanced purging mechanism, and a wide selection of accessories.

The operator will place the bag on the gripper claw and then extract the cap manually with the auxiliary arm. Next, the arm will move to the left in order to insert the nozzle over the neck of the bag. Once the start button is pressed, the Bag in Box Filler (BIB) - Easy Start Arm will automatically proceed to fill the bag up to the programmed capacity.

CLICK HERE TO WATCH A VIDEO OF THIS FILLER IN ACTION

DETAILS

• Single Head Manual Filling & Capping Unit
• BIB Bag Filling Capacity: 1.5L to 20L
• Spouted Pouch Filling Capacity: 750ml to 4L
• Capable of Filling Standup Pouches, Standup Bags, Pouches, Doypacks, and more.
• Can fill a wide range of liquid and food products: liquids, viscous, liquids with solids, and more.
• Bag Types Include: Film w/ PE Barrier, Barrier Metal FIlm w/ PET, and EVOH Film and Barrier
• Air Vacuum & Nitrogen Injection
• Equipped with Centrifugal Pump & Electromagnetic Flowmeter
• 4.3" Color Touch Screen w/ 1GM Memory
• Digital Pressure Indicator
• Multi-Fitment Stainless Steel Four-Finger Gripper
• Cleaning CIP
• Electromagnetic Flowmeter
• 1.5" Clamp Connections
• Silicone Seals & O-Rings (Viton or FKKM Optional)
• Table & Box Mount w/ Stainless Steel Rollers
• 65in x 47in x 34in
• 195 lbs
• CE Certified
• Manufactured by Cartobol

OPTIONS

• Viton Gaskets and O-Rings For High-Alcohol Content
• FFKM Gaskets & O-Rings for Chemicals
• Optional Nozzle & Claw Sizes for different product fill and different bag/pouch spout sizes.
• Alternate Pump for Viscous Products or Liquids w/ Solids
