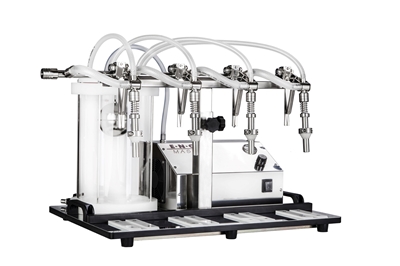

The Enolmaster Professional 4 Spout Vacuum Bottle Filler for Liqueurs, Oils, Syrups, Balsamic Vinegar, and other Viscous or Sugary Liquids - is constructed entirely of AISI 316 and AISI 304 stainless steel and is outfitted with four high-efficiency stainless steel filling nozzles. Using vacuum operated filling, the product will maintain its original quality. When placing the bottle under the machine, the fluid is drawn by the vacuum created inside it, without any contact between the product and pumps or mechanical components. Enolmaster fills about 600 bottles an hour (750ml), in perfect hygienic conditions and with no product spillage. The filling level is adjustable; once selected, it automatically fills the bottle to the desired level. In addition, the tank from which the fluid is taken for bottling can be placed up to 4 meters below the unit.
The Enolmaster is hands down the most popular filling system for Boutique Wineries, Craft Distilleries and countless other beverage and liquid markets for many reasons. The five most talked about is Accuracy - The flow into the bottle stops when it is supposed to stop; Gentle on your product - Your wine, cider, or other beverage is not exposed to the rigors of another pump; Compact - Has a small footprint taking up less space than other systems; Easy Set Up - No pumps and hoses as the unit is self contained; Durability - This system is designed, engineered and constructed to very high standards that when properly maintained provides for many years of use in a commercial environment.
The components of this filling system will handle alcohol content up to 90% but this is NOT certified explosion proof and should be used in well ventilated area. It should be noted that 70% alcohol is 140 proof and has a flash point of 70 Degrees Fahrenheit, making the product volatile as well as flammable. The standard version has an onboard electric motor and the Pneumatic version does not. Neither system is Atex Certified and the Pneumatic version is recommended for products with the highest alcohol content.
Enolmaster Manual
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY - We will call with actual shipping costs prior to shipping or charging your credit card.
WMD Equipment - Your Trusted Source for Filling Perfumes and Oils
The Enolmaster is hands down the most popular filling system for Boutique Wineries, Craft Distilleries and countless other beverage and liquid markets for many reasons. The five most talked about is Accuracy - The flow into the bottle stops when it is supposed to stop; Gentle on your product - Your wine, cider, or other beverage is not exposed to the rigors of another pump; Compact - Has a small footprint taking up less space than other systems; Easy Set Up - No pumps and hoses as the unit is self contained; Durability - This system is designed, engineered and constructed to very high standards that when properly maintained provides for many years of use in a commercial environment.
The components of this filling system will handle alcohol content up to 90% but this is NOT certified explosion proof and should be used in well ventilated area. It should be noted that 70% alcohol is 140 proof and has a flash point of 70 Degrees Fahrenheit, making the product volatile as well as flammable. The standard version has an onboard electric motor and the Pneumatic version does not. Neither system is Atex Certified and the Pneumatic version is recommended for products with the highest alcohol content.
- This unit is designed for Oils, Liqueurs, Balsamic Vinegar, Olive Oil, Syrups and other sugary or high temp liquids and Higher Alcohol Content above 20%
- Sugary products like liqueurs will foam and REQUIRE OIL BATH VACUUM FILTER - SEE BATH FILTER DETAILS for SPECIFIC APPLICATION
- For temperatures up to 248F or 120C
- To handle the higher Temperatures and Alcohol content beverages this unit is equipped with a Pyrex Vacuum Vessel and Pharmapress Hoses
- Contact us as we have most options available upon request
- Neck Inner Diameter 18mm to 28mm
- Bottle Height 250mm to 330mm
MORE DETAILS
- AISI 304 Stainless Steel Base and Frame
- AISI 316 Filling Nozzles
- Stainless Steel Float

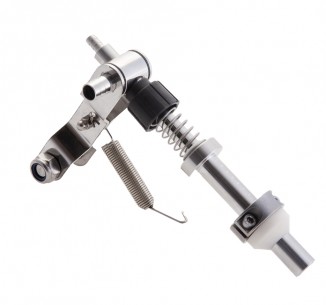

- Nozzle Options: Wine/Dry Spirits (Standard), Beer or Oil/Viscous Spirits, Mignon (Small Bottles)
- Options to be outfitted for Low Temp or Low Alcohol see our version for Wine
- 110v Single-Phase Motor
- Intended for Glass Bottles - Most Plastic Bottles will Collapse due to use of Vacuum
- *For plastic bottles we require you send us samples to confirm they will not collapse due to vacuum pressure
- Fills up to 600 Bottles per hour (750ml)
- Dimensions 650x460x450mm
- Weight 70 lb
- Italian made by Tenco
- Nozzle Options: Wine/Dry Spirits (Standard), Beer or Oil/Viscous Spirits, Mignon (Small Bottles)
- Oversized option for bottles with opening up 65mm diameter is available
- For Miniature Bottles with 7.5 - 20mm openings see our Miniature (aka Mignon) Version Miniature Bottles
- Wine, Still/non-Carbonated, Low Temp/Low Alcohol see our Wine & Cider Version
- For High Proof / High Alcohol see our Dry Spirits Version
- Inline Cartridge Filtering System (Will show as option when adding to Cart)
- Filter Cartridges
- Tomato Kit
- Jar Filling Kit
- Products that create foam or are sugary, such as Liqueurs or Vinegars, require the use of the Oil Bath Filter
