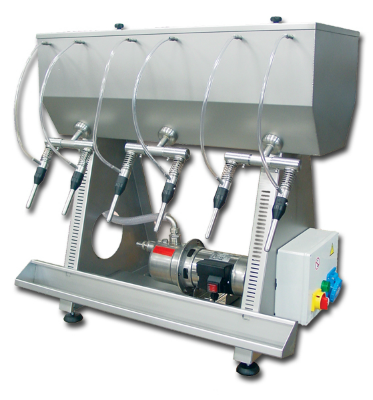

Tivoli Bottle Filler with Pump & Electric Float

Price: make selection(s)
  • Item #BFZ-TGE
- +
The Tivoli series by Zambelli are high-quality, professional bottle fillers that set the industry standard for smooth, efficient bottling of wine, spirits, oils, vinegars and other still/non-carbonated liquids. The Tivoli GE fillers feature all AISI 304 Stainless Steel construction and adjustable height spouts and bottle tray for accurate fill levels on a variety of bottles. These units are gravity fed, which means no foaming and minimal disturbance, and electronic sensors in the reservoir maintain the flow. Rubber tubing automatically directs excess sparging gasses to blanket the reservoir. Stainless Steel Ebara JE Pump, specifically designed to work in conjunction with Zambelli Bottle Fillers and Plate Filters, included.

DETAILS
  • Gravity fed w/ electronic sensors in reservoir
  • ASIS 304 stainless steel construction
  • Adjustable height spouts
  • Adjustable height tray
  • For bottles with opening diameter of 14mm to 44mm
  • Motor: 0.5 HP, 110v 1-PH, 3.6A
  • Mounted Ebara JEM56 Pump
  • Italian made by Zambelli

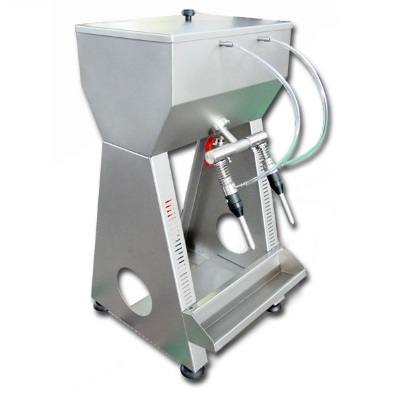

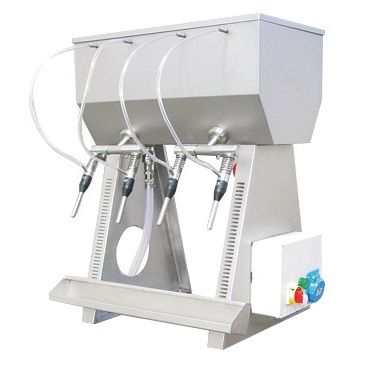

 TIVOLI 2 GETIVOLI 4 GETIVOLI 6 GE
MAXIMUM CAPACITY:
20 Liter55 Liter75 Liter
PRODUCTION:
200-300 Bottles/hr500-600 Bottle/hr750-900 Bottle/hr
DIMENSIONS:
15x16x34 inches24x20x36 inches33x20x36 inches
WEIGHT:
31 lbs51 lbs57 lbs

CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make it cost prohibitive to ship. Accordingly it may be received with very minor scratches not that dissimilar from those it will receive during normal use, but is guaranteed to arrive in working order.
