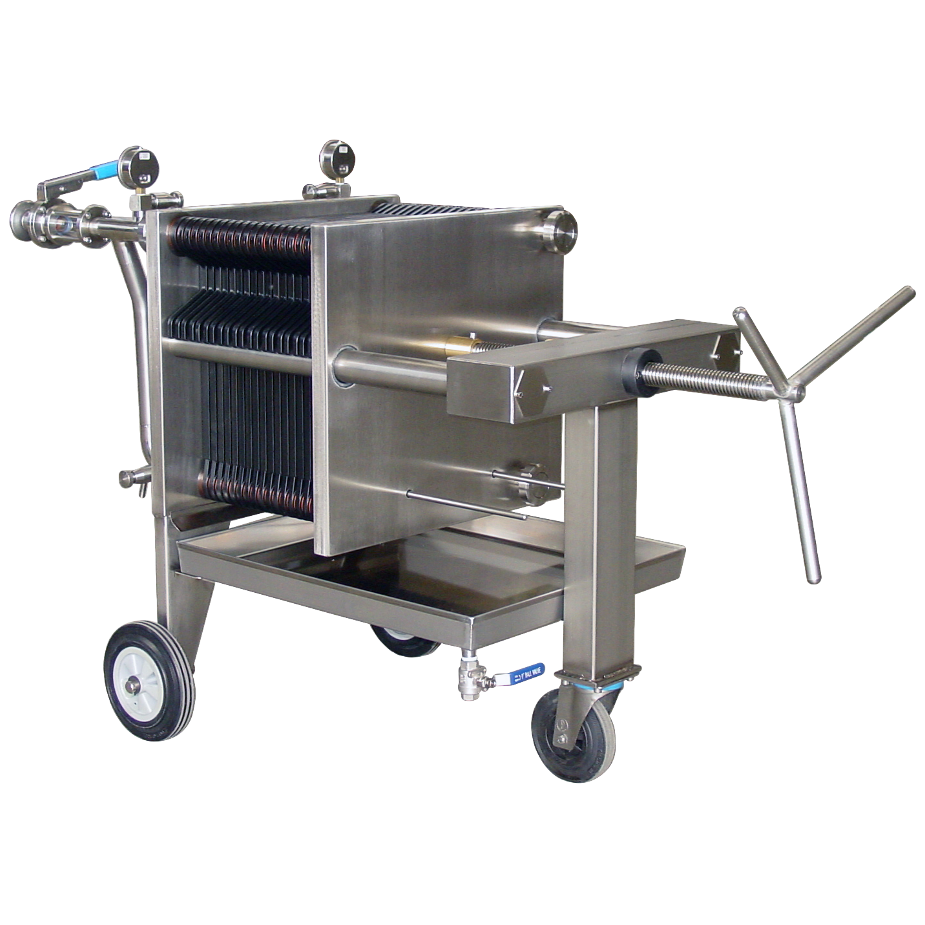

CF43 30 Plate Filter (40x40)
(28 - 51 HL/h)

Price: $5,900.00
  • Item #PFZ-CF43
- +
The Zambelli CF43 is a professional grade 40x40 plate filter designed for the small winery. Built from AISI 304 stainless steel, with 30 food-grade polypropylene plates providing a filtration surface of 4.8 m2, this filter is built to last a lifetime with minimal maintenance and consistent output of up to 5100 liters (1350 gallons) per hour. The included Crossover Plate (or "Inversion Plate") enables more than one grade of filter sheet to be used simultaneously- a process called "Double Filtration". The heavy-duty stainless frame features a drip tray, large wheels for sturdy mobility, dual pressure gauges, a sight gauge for monitoring clarity, and 1.5” Tri-Clamp inlet and outlet. Pump not included.

DETAILS
  • 30 Polypropylene Filter Plates (40 x 40 cm)
  • Filtration rate of 28 - 51 HL/h (740 - 1350 gal/h)
  • Total filtration area of 4.8 m(52 ft2)
  • Crossover Plate for Double Filtration
  • Dual Pressure Gauges
  • Butterfly Valves to regulate inlet and outlet flow
  • Sight gauge on outlet port
  • Pump not included
  • 1.5" Tri-Clamp inlet and outlet
  • AISI 304 stainless steel construction
  • 67" L x 28" W x 37" H
  • 615 lbs
  • Italian made by Zambelli

CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly they may be received with very minor scratches not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in working order.
