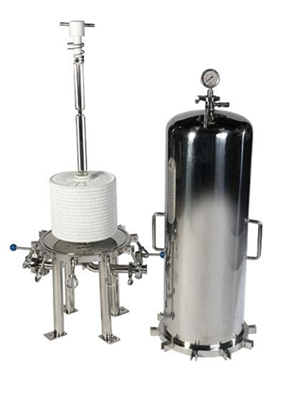

Lenticular filter housing standing on 4 legs, closure by stainless steel bolts, sealing by silicone gasket, flat gasket style adapter for modules. Available in 12-Inch and 16-Inch Diameters with capacity for 2, 3 or 4 Modules
Benefits of Lenticular Filter vs Plate & Frame Filter:
Includes all necessary fittings for filter operation.
316 stainless steel, sanitary construction
Surface Finish:
Mirror polished Ra<0.2μ
Includes: (each housing)
Maximum operating temperature: 140˚ C (284˚ F)
Maximum operating pressure: 10 bar (liquid pressure only)
Optional items for Lenticular housings (see related items above):
1-High center post for Lenticular filter housing.
Allows the housing to be used with only one filter module in it.
2-High center post for Lenticular filter housing.
Allows the housing to be used with only two filter module in it.
3-High center post for lenticular filter housing.
Allows the housing to be used with only three filter module in it.
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
WMD Equipment
Your Trusted Source for Filtration & Packaging Equipment & Supplies
Benefits of Lenticular Filter vs Plate & Frame Filter:
- Easier/Quicker Setup
- Easier/Quicker to Clean
- Greatly reduce risk of contamination/oxidation due to sealed system
- Filtration without product losses due to an enclosed design
- Simple to load and break down- no need for wetting and re-tightening
- Housings can be loaded with as few as one filter module (Additional Equipment Required)
- Filter modules can be back flushed and reused multiple times (When using backflushable modules and applicable hardware)
- A Lenticular Filter system with re-usable filter media cost less than other types of filters with comparable filtration capacity
- Takes up less space due to vertical design
- ***Note - A 12-Inch 3-Module Lenticular Filter has comparable filtertration capacity as a 40-Plate 40x40 Plate & Frame Filter
| 12-INCH HOUSING | FILTRATION SURFACE | DIA x HEIGHT | WEIGHT |
| 2 Module Lenticular Filter Housing 12” | 3.6 sq. meter | 15.7” x 48” | 165 lb |
| 3 Module Lenticular Filter Housing 12” | 5.4 sq. meter | 15.7” x 58” | 200 lb |
| 4 Module Lenticular Filter Housing 12” | 7.2 sq. meter | 15.7” x 60” | 215 lb |
| 16-INCH HOUSING | |||
| 2 Module Lenticular Filter Housing 16” | 10.0 sq. meter | 17.7” x 48” | 220 lb |
| 3 Module Lenticular Filter Housing 16” | 15.0 sq. meter | 17.7” x 58” | 250 lb |
| 4 Module Lenticular Filter Housing 16” | 20.0 sq. meter | 17.7” x 69” | 285 lb |
Includes all necessary fittings for filter operation.
- Inlet/Outlet 1.5” TC
- Gauge port 1.5” TC
- Drain outlet 1.0” TC
- Air vent 0.25” thread to hose barb
316 stainless steel, sanitary construction
Surface Finish:
Mirror polished Ra<0.2μ
Includes: (each housing)
- Pressure Gauge
- 2 Butterfly valves for inlet/outlet and drain
- Bottom Deflection Plate required for back wash
- All clamps and gaskets
Maximum operating temperature: 140˚ C (284˚ F)
Maximum operating pressure: 10 bar (liquid pressure only)
Optional items for Lenticular housings (see related items above):
1-High center post for Lenticular filter housing.
Allows the housing to be used with only one filter module in it.
2-High center post for Lenticular filter housing.
Allows the housing to be used with only two filter module in it.
3-High center post for lenticular filter housing.
Allows the housing to be used with only three filter module in it.
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
