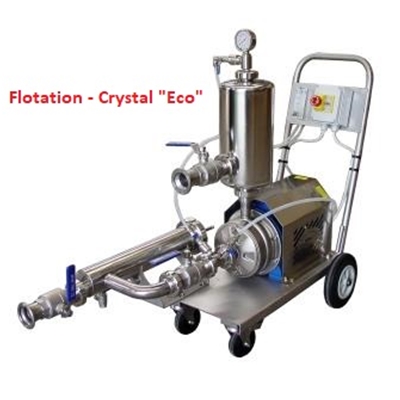

Flotation Unit Crystal - Eco or Deluxe

Price: make selection(s)
  • Item #FSFZ-

Micra-Switch

- +

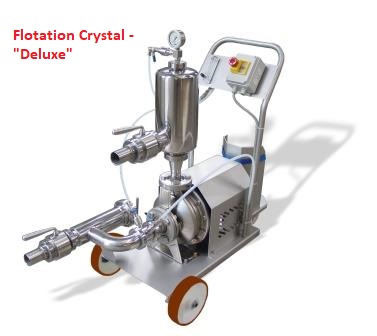

Zambelli Crystal ECO and Crystal DELUXE Floatation System

DETAILS:

  • Our flotation unit is suitable for pumping over and clarifying grape musts and fruit juices due to undergo a fermenting or concentration process.
  • Flotation allows quick and substantial separation of the yeast and sediments contained in the must, making a clean product ready for fermentation.
  • Our floating units are small and easily movable near tanks for clarification, and are ideal for small and medium wineries.
  • There is a substantial optimization of the process for must clarification: the results are economic benefits and quality in the must.
  • Crystal units are faster than the classical systems of clarification (saving time frigories-carriers).
  • Preserves the quality of clarified must by reducing contact with the lees (the separation of fast sediments in the must is a benefit for wine perfumes).
  • Always produces very high yields of clarification (average 95%).
  • Optional Micra-Metrica Valve Not Included but Shown in photo of Crystal Eco (See Drop Down to Add)
  • Pre-Screen is 3mm
  • 3-Phase 208 Volt
  • Built of mostly AISI 304 Stainless Steel

  Crystal ECO Crystal DELUXE
Hourly output
Max 120 Hl/h Max 220 Hl/h
Pressure Max 5 BAR  Max 5 BAR
Nitrogen consumption
5/15 Lt/min 15/25 Lt/min
Fittings Ø 2-Inch Tri-Clamp Ø 2-Inch Tri-Clamp
Dimensions 1100x515x985 mm 1200x530x985 mm
Weight Kg 71 Kg 105
