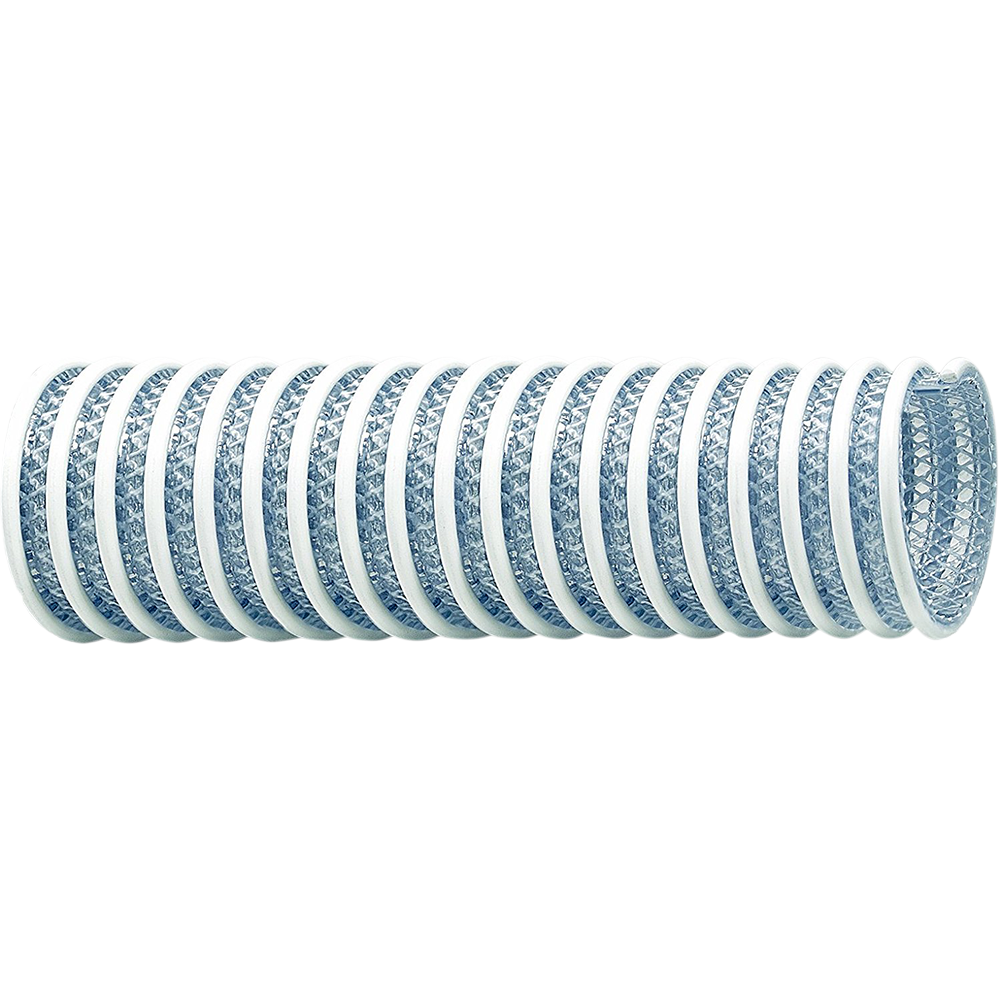

The 1780 series Heavy-Duty Flexible Transfer Hose by Unisoucce is constructed of clear, FDA-approved PVC tubing for resistance to moisture and chemicals and reinforced with an internal polyester braid for strength, and an external rigid PVC helix for flexibility and resistance to abrasion and crushing. The 1780 series hose will accommodate higher working pressures while maintaining excellent flexibility and light weight. Typical applications include processing wine, beer, paste food, dairy and liquid foods.
In compliance with criteria of 3-A, FDA, USDA.
Note: Orders containing more than 10 feet of 3.0" hose must ship LTL freight.
DETAILS
| 1.5" HOSE | 2.0" HOSE | 3.0" HOSE | |
| INNER DIAMETER (ID): |
1.50 in (38.10 mm) | 2.00 in (50.80 mm) | 3.00 in (76.20 mm) |
| OUTER DIAMETER (OD): |
2.03 in (51.56 mm) | 2.60 in (66.04 mm) | 3.70 in (93.98 mm) |
| BEND RADIUS (@ 70°F): |
2.50 in (63.50 mm)
|
4.00 in (101.60 mm)
|
6.30 in (160.02 mm)
|
| PRESSURE (@ 70°F): |
110 PSI | 100 PSI | 75 PSI |
| VACUUM RATING: |
29 Hg | 29 Hg | 29 Hg |
| WEIGHT: |
0.56 lb/ft | 0.75 lb/ft | 1.20 lb/ft |
Due to the large size of this Helix Hose 1.5-inch and 2-inch longer than 60ft and 3-inch longer than 20ft must ship via truck on a pallet.
