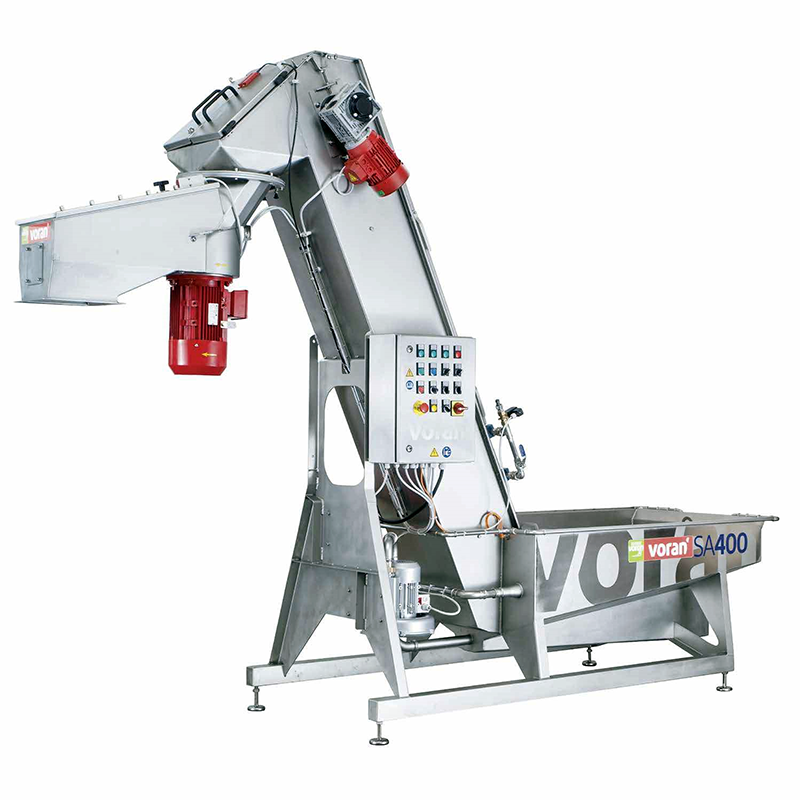

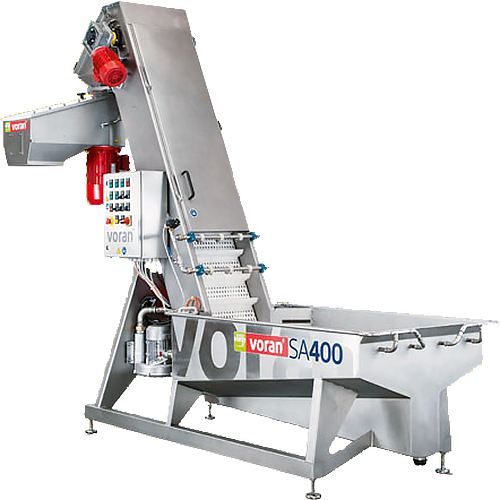

The Voran SA400 Elevator features a perfectly matched heavy-duty washing system and grinder with variable speed control via the on-board frequency converter. The Fresh Water Shower system both thoroughly cleans when necessary and conserves water when possible thanks to multiple selectable intelligent operating modes. The wash basin / load hopper contains air jets beneath the water's surface to keep the fruit and vegetables in constant movement toward the recirculating link conveyer of the elevator. The pivoting grinding system is equipped with its own water jets that remove debris from the mill to be collected in separate removable baskets. The SA400 is suitable for processing all types of fruits, berries or vegetables.
Click Here to watch the SA400's little brother, the SA300, operate
Click Here to watch the SA400's little brother, the SA300, operate
DETAILS
- Hourly Production: 1.1 - 8.8 Tons
- Ideal for cleaning and milling apples and pears for juice/cider production
- Supplied with 7 mm, 9 mm, and 12 mm Cutting Screens
- Additional Cutting, Perforated, and Slotted screens available
- Supplied with Variable Frequency Drive for infinite speed control
- Motor: 14.9 HP, 220v 3-Ph, 16A
- Bin Load: 29" H
- Mill Discharge: 57" - 62" H
- Dimensions: 144" L x 39" W x 101" H
- 1400 lbs Transport Weight
- AISI 304 stainless steel construction
- Made in Austria by Voran
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly they may be received with very minor scratches not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in working order.
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly they may be received with very minor scratches not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in working order.
