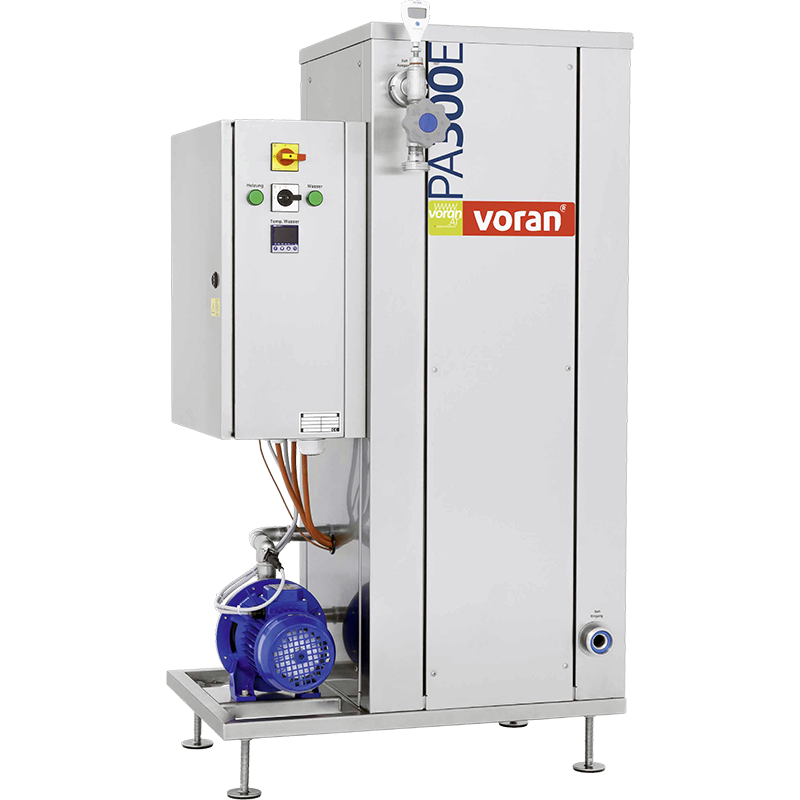

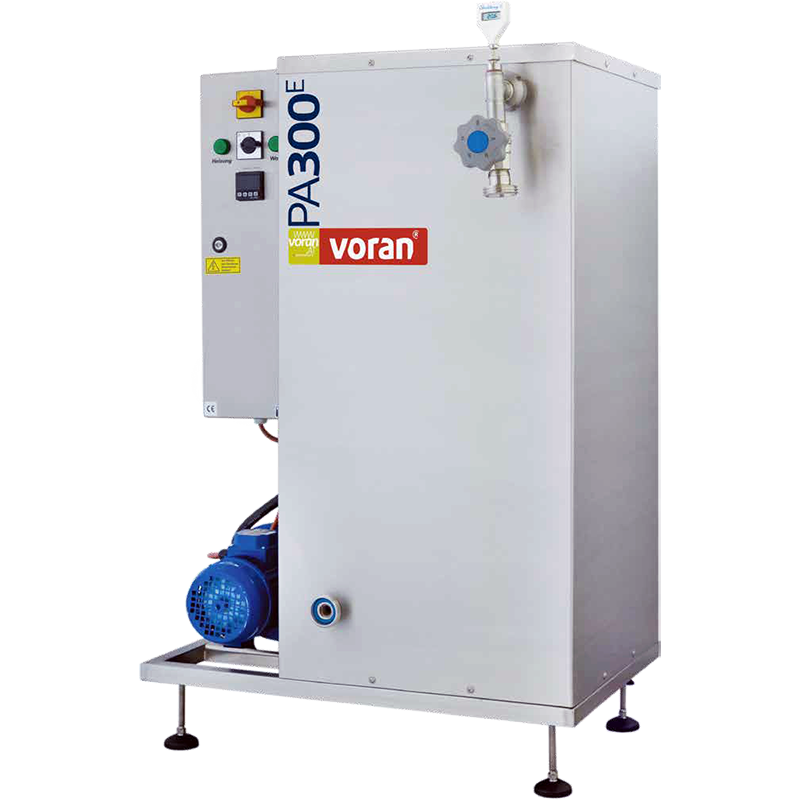

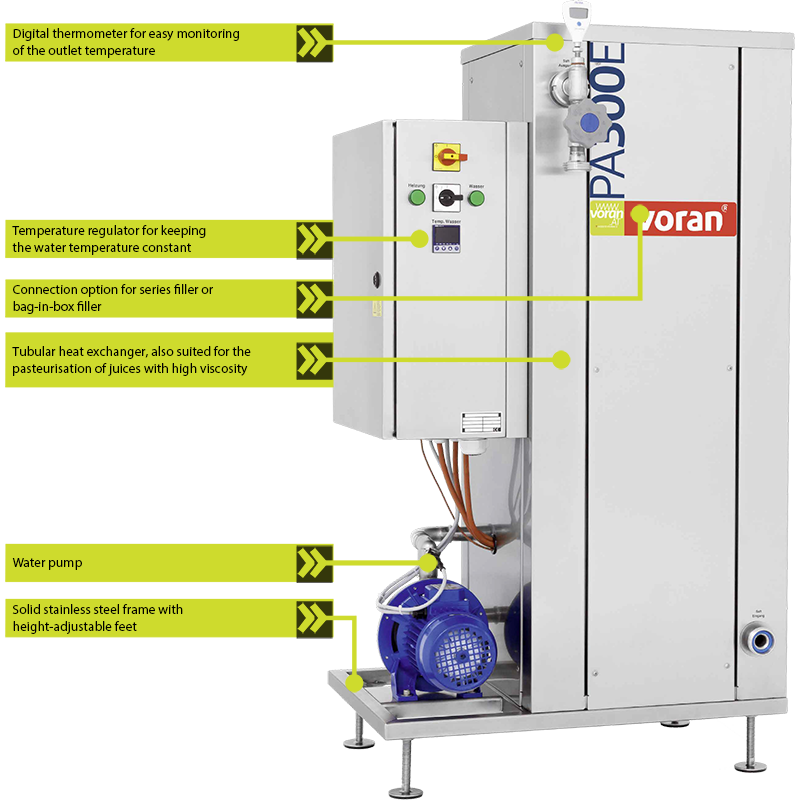

The PA300E by Voran is an electric Juice Pasteurizer with heating elements and tube heat exchanger. A digital control unit is used to adjusted the temperature of the heating elements within the water bath. An on-board pump is used to fill the water bath and recirculate the water throughout the pasteurization process to maintain consistent water temperature. Raw juice flows through the spiral heat exchanger within the water bath, heating the juice to the desired temperature. A digital thermometer is mounted on the outlet port to monitor the temperature of the juice as it leaves the paseurizer. The PA300E will process 300 Liters per hour at 80° C (176° F).
A separate pump (NOT INCLUDED WITH PA300E) is required to transfer juice to and from the pasterurizer.
An automated version of this unit, the PA300EA, with an on-board juice pump and automatic flow control can be found HERE.
A separate pump (NOT INCLUDED WITH PA300E) is required to transfer juice to and from the pasterurizer.
An automated version of this unit, the PA300EA, with an on-board juice pump and automatic flow control can be found HERE.
DETAILS
- Hourly Production: 300 Liters
- On-board pump to fill water bath and recirculate water
- Mechanical Float in water bath to control fill level
- Digital control unit to control heating elements in water bath
- Juice flows through stainless steel tubular heat exchange in water bath
- Digital display of juice temperature at outlet port
- Heating elements contain overheat protection
- External juice transfer pump required (NOT INCLUDED)
- Heating time (to 80° C): 10 min
- Required Water Volume: 35L
- Power: 27 kW, 3-PH 220v, 50A
- Dimensions: 30" L x 20" W x 55" H
- 400 lbs Transport Weight
- AISI 304 stainless steel construction
- Made in Austria by Voran
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly they may be received with very minor scratches not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in working orde
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly they may be received with very minor scratches not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in working orde
