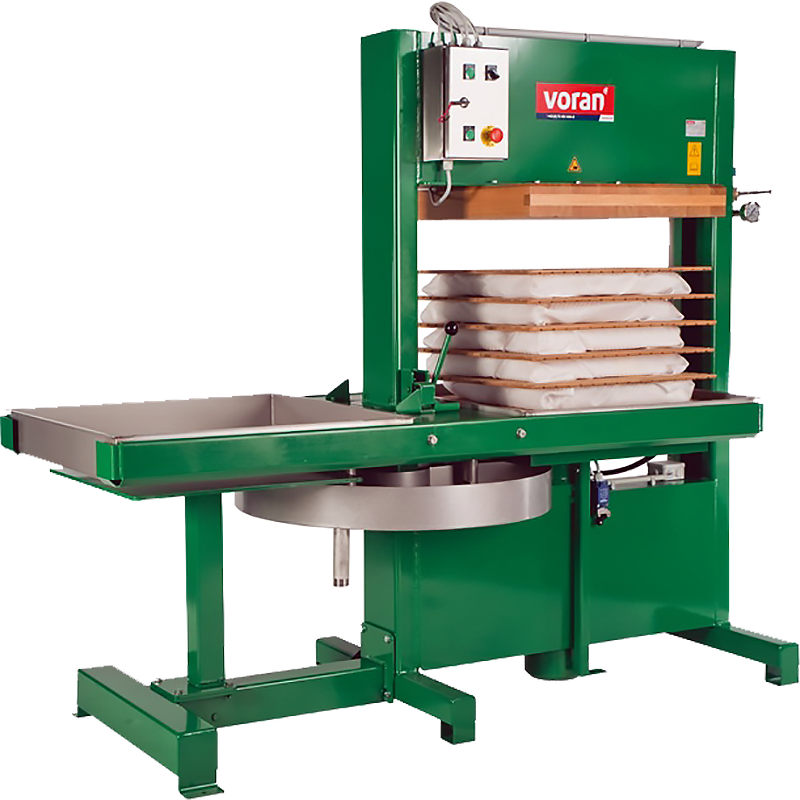

The Voran Rotary Carriage Packing Presses provide the highest yield to juice quality ratio, with a more efficient pressing process and larger output capacities than their Sliding Basin counterparts. Crushed fruit is wrapped in straining cloth and packed between acacia wood or stainless steel inserts stacked inside the one of the two stainless steel press basins. Once the basin is packed and rotated into place, the hydraulic pressing cylinder, strategically located beneath the basin to prevent any oil from coming into contact with the mash or juice, raises the packed basin up to the wooden press plate, applying the optimal level of pressure for high-quality and high-yield juice extraction. Meanwhile the second draining basin is being filled and prepared for pressing. Both the 180P2 and 180P2 INOX models feature a separate hydraulic lift and lower system for to assist in loading the pressing basins directly from a Washing Elevator/Mill.
Click Here to watch the 100P2 operate with the WALC40 Elevator & Mill
Click Here to watch the 100P2 operate with the WALC40 Elevator & Mill
DETAILS
- High yield (over 75%) with best juice quality
- Minimal suspension ration
- Optimal for Apples, Pears and other soft fruits & vegetables
- Easy & simple to operate
- Bottom-mounted Press Cylinder prevents oil from coming into contact with mash or juice
- On-board Pressure Gauge with Automatic Over-Pressure stop valve
- Quick operation and juice extraction prevent oxidation
- Acacia Wood or AISI 304 Inserts and Press Plate
- AISI 304 Stainless Steel Packing Frame and Basin
- Powder-Coated Steel or Stainless Steel Chassis
- Made in Austria by Voran
| 100P2 ROTARY CAGE | 180P2 ROTARY CAGE | 180P2-I ROTARY CAGE | |
| CAPACITY (PER HOUR): | 1325 lb (600 kg) | 2650 lb (1200 kg) | 2650 lb (1200 kg) |
| LOADING BASINS: | 2 | 2 | 2 |
| PRESS INSERTS: | 20 (50X50 cm) Wood | 26 (65X65 cm) Wood | 26 (65X65 cm) S Steel |
| PRESS CLOTHS: | 18 (80X80 cm) | 24 (100x100 cm) | 24 (100x100 cm) |
| POWER: | 2.0 HP, 3-Ph, 240v | 3.0 HP, 3-Ph, 240v | 3.0 HP, 3-Ph, 240v |
| DESIGN: | Powder-Coated Steel | Powder-Coated Steel | AISI 304 Stainless Steel |
| TOTAL DIMEMSIONS Length: Width: Height: |
77 in (2170 mm) 29 in (730 mm) 60 in (1510 mm) |
89 in (2250 mm) 34 in (850 mm) 75 in (1870 mm) |
89 in (2250 mm) 34 in (850 mm) 75 in (1870 mm) |
| WEIGHT: | 1325 lb (600 kg) | 2250 lb (1020 kg) | 2250 lb (1020 kg) |
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
