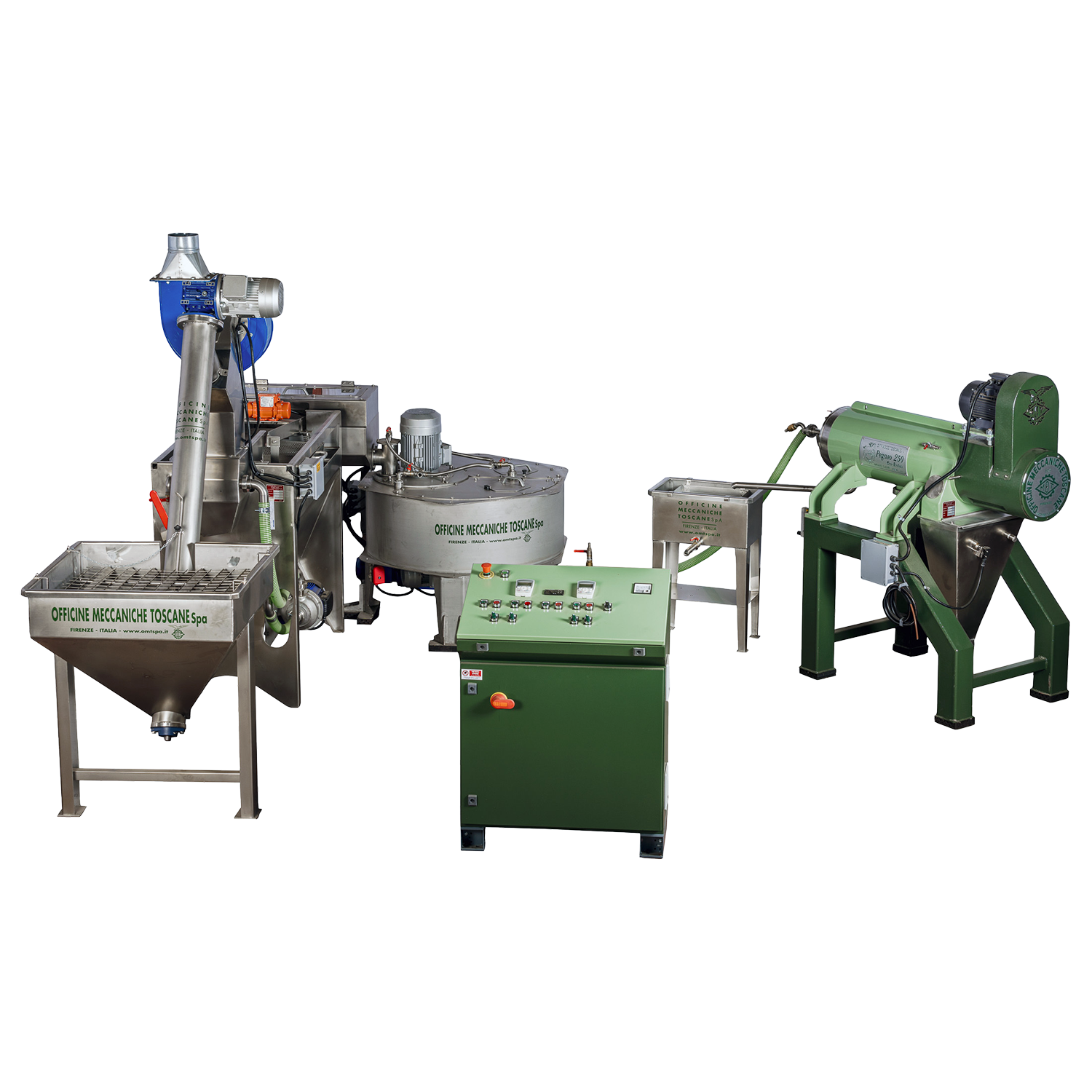

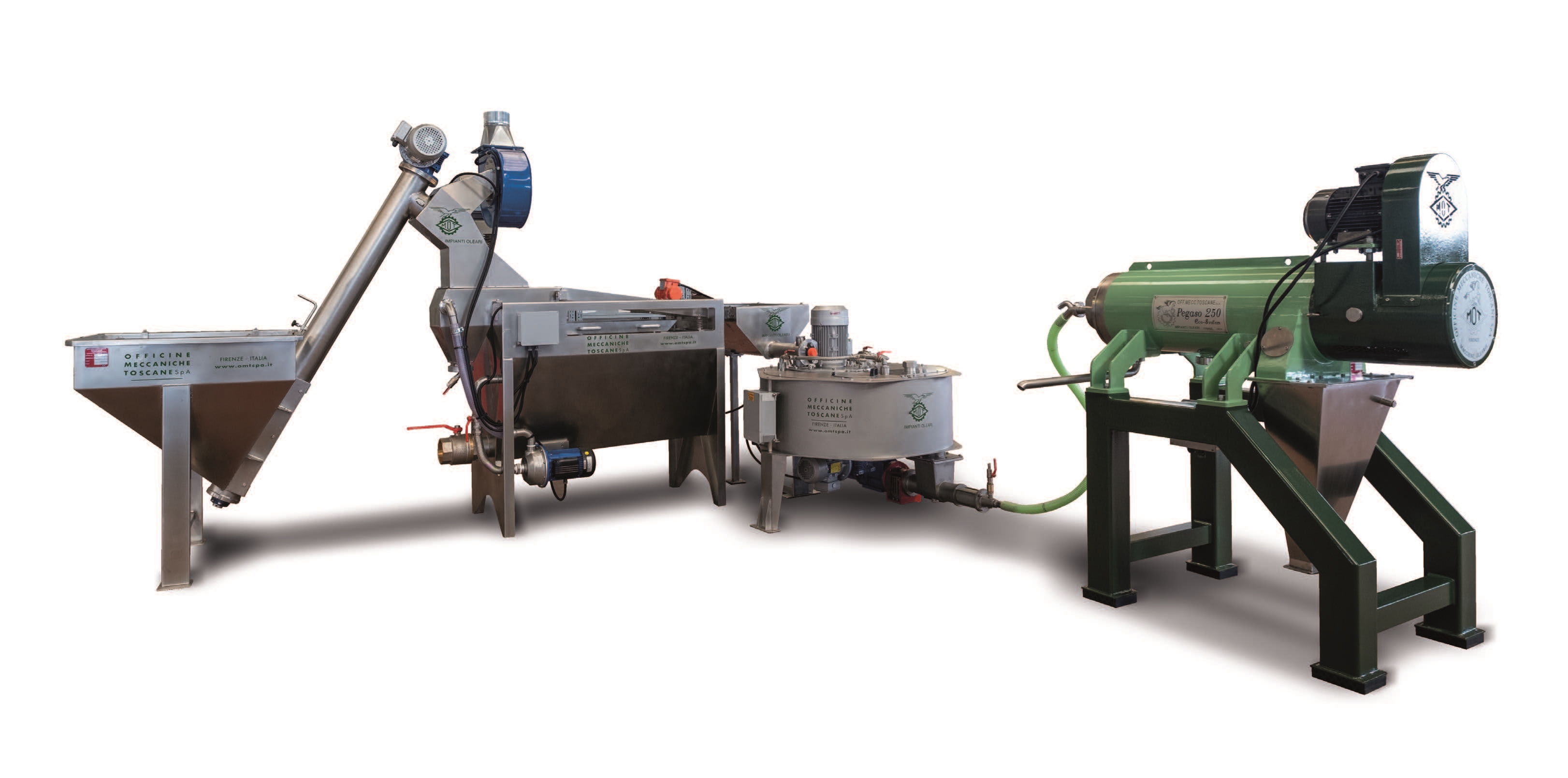

The OMT Pegaso Genesis 250 is a complete Turnkey Olive Oil Mill (aka Olive Oil Processing Plant) and is the ideal sized Olive Oil Mill for smaller producers. This Compact, Commercial, Continuous Processing Olive Oil Mill guarantees the same performance and oil quality of larger dimensioned Mills produced by Officine Meccaniche Toscane. The unparalleled technology and the materials fitted together in the PEGASO 250 has produced a complete, continuous, Mill with professional features, but in reduced dimensions. This Mill operates in a two-phase system and it produces oil without the use of vertical centrifugal separators. This Mill is equipped with the NEW GENESIS CRUSHER-MALAXING GROUP with a capacity of about 250 Liters. The crusher is equipped with knife breaking elements and it is integrated into the Malaxing Group which is equipped with innovative kneading blades to ensure efficient continuous processing. One of the main, and exclusive features of this Mill, is the very small mixing water consumption. Due to its compact size and modularity, no masonry, no plumbing, and no electrical work are necessary for setting up this plant.
Why choose an OMT Oil Mill/Plant:
- Compact, Cleanliness, Controlled Temperature, 80+years of experience... Resulting in efficient production of high quality Olive Oil.
- This Plant allows you to Inspect and Control Processing for premium quality and higher yield of EVOO
- High quality equipment with Robust, Industrial build for long life with minimal maintenance
- All parts in contact with olives, paste, or oil made of high quality AISI 304 stainless steel
- Safe operation, easy assembly and cleaning
- Minimal water consumption
- Washing - Efficient cleaning and De-Leafing of olives for preserving fruit integrity
- Crushing - Knife breaking technology that increases Polyphenols and Aromas
- Malaxing - Innovative Kneading Blades to ensure efficient continuous processing
- Genesis Malaxing - New, innovative, produces higher quality olive oil and higher yields than Horizontal/Linear Malaxers
- Extraction - Patented Horizontal Centrifuge (decanter) that extracts oil without centrifugal separators
- Final Separation or Filtration - Typically NOT required as a result of this Mill's unique processing attributes
The Pagaso Genesis 250 Olive Oil Mill includes:
- Olive Conveying Belt Feed Elevator, Washer, and De-Leafer which includes:
- Stainless Steel Hopper
- Automated Pegaso 500 Hydro-Pneumatic Stainless Steel Washing System which Includes Recirculation Pump and Vibrating Grid
- Motorized Conveying Elevator
- De-Leafer at Top of Elevator
- Belt Cleaning Brush is also included

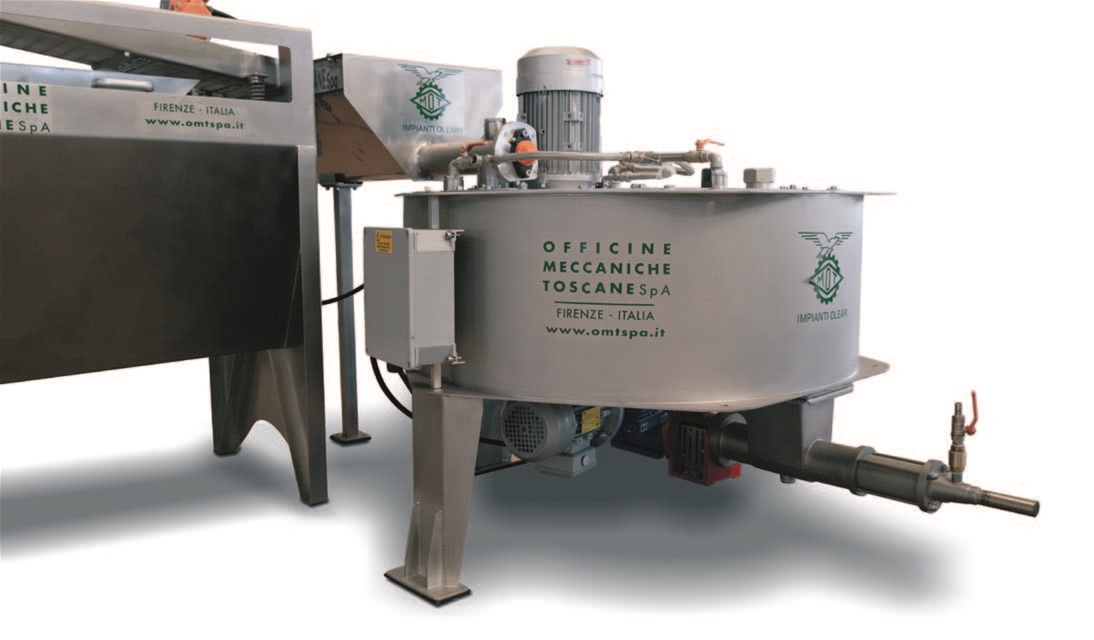

- Pegaso Genesis 250 Genesis Stainless Steel Crusher-Malaxing Unit which includes:
- Stainless steel conveyor
- Vertical Axis Knife Crusher and 250 Liter Kneading Tank with Stainless Steel Kneading Blades
- Tank is Double Walled/Jacketed to allow for temperature control (Heater/Chiller not Included)
- Temperature Probe
- Overflow Probe
- Mono Pump with Mechanical Variator for feeding the Centrifugal Decanter

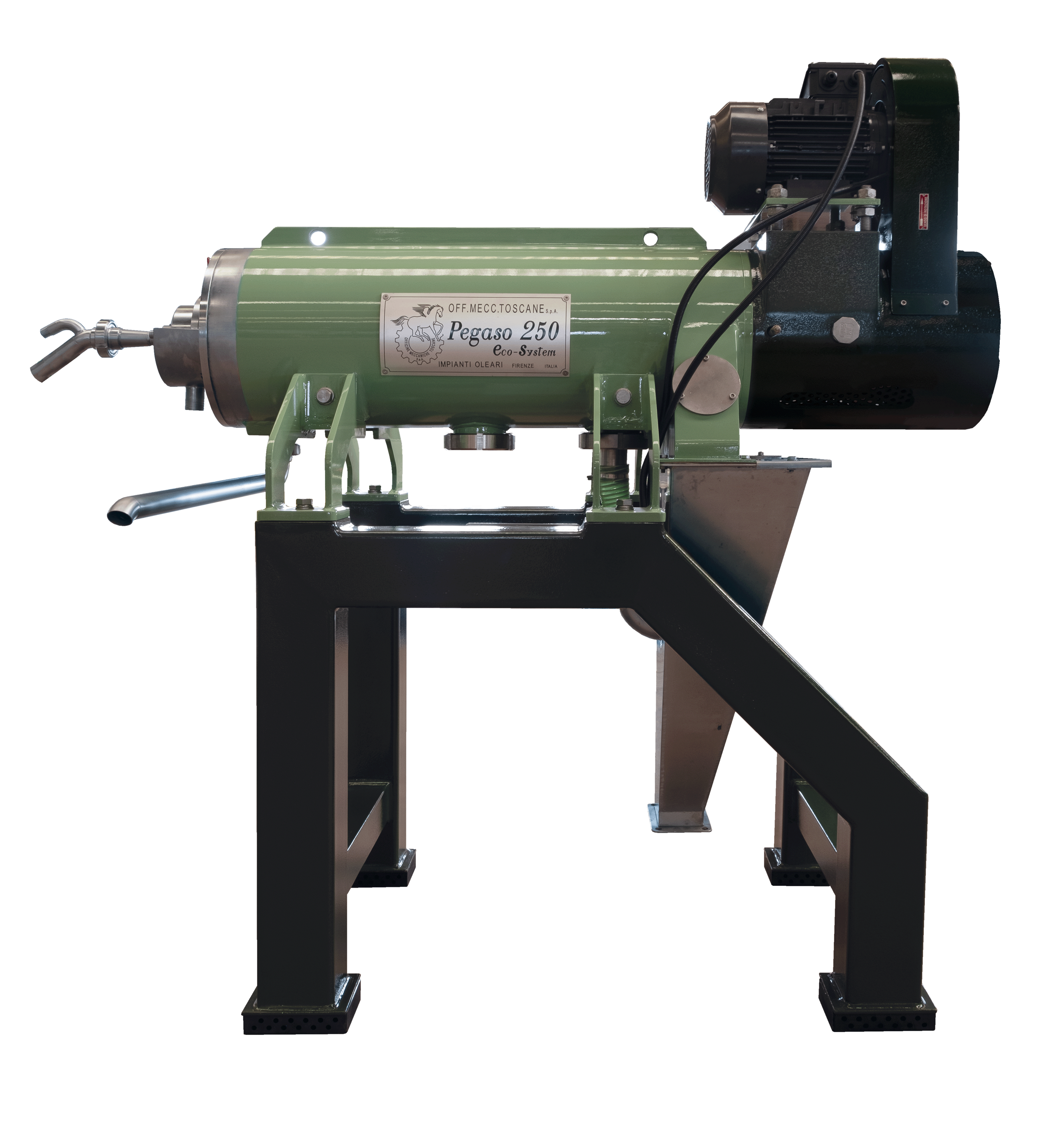

- Pegaso ECO 250 Horizontal 2-Phase Centrifugal Extractor Decanter
- Made up of stainless internal screw with exclusive OMT design
- Coated for resistance to abrasion with tungsten carbides
- Monolithic Casing
- Inverter for starting
- Heavy duty support base/frame
- Conveying System for Liquid Husk which includes:
- Stainless steel Charge Hopper
- Mono Pump
- Stainless Steel Tank for Finished Olive Oil
- Pegaso 250 Electronic Control Panel
DETAILS
- Hourly Production: 200kg to 250kg (subject to quality, ripeness, and preservation of olives)
- Automatic System
- Continuous Processing
- 2-Phase System
- 2-Phase Horizontal Centrifugal Extractor Decanter
- New and Innovative Genesis Crusher-Malaxing Group
- Drum internal length: 200mm
- Drum Useful Length: 850mm
- Power Consumption: 10 kw
- Floor Space requirements: 60 to 100 square feet
- Made in Italy by OMT
OPTIONS
- Traditional Horizontal/Linear Malaxer
- Touch Screen Control Panel
CALL TO ORDER
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY
We will call and/or email with actual shipping and crating costs prior finalizing your order.
