The OMT Pegaso X-Series (X15, X20, X30, X50) are complete Turnkey Olive Oil Mills (aka Olive Oil Processing Plants) which are ideal sized Olive Oil Mills for larger-sized producers. These Commercial, Continuous Processing, highly efficient, Olive Oil Mills produce high quality EVOO. The unparalleled technology and the materials fitted together in the PEGASO X-Series Mills have produced complete, continuous, professional Mills. These continuous Mills operate in a two-phase system and produce higher yield, higher quality EVOO, without the use of vertical centrifugal separators. These Mills can be equipped with the NEW GENESIS CRUSHER-MALAXING GROUP or Traditional Horizontal Malaxers. Number and size of Malaxers will be matched with the size of your system (1500kg, 2000kg, 3000kg, or 5000kg per hour). The crushers are equipped with knife breaking elements and are integrated into the Malaxing Genesis Group (if equipped) which are equipped with innovative kneading blades to ensure efficient continuous processing. One of the main, and exclusive features of these Mills, is the very small mixing water consumption. Due to compact size and modularity, no masonry, no plumbing, and no electrical work are necessary for setting up this plant.
Why choose an OMT Oil Mill/Plant:
- Compact, Cleanliness, Controlled Temperature, 80+years of experience... Resulting in efficient production of high quality Olive Oil.
- These Plants allow you to Inspect and Control Processing for premium quality and higher yield of EVOO
- High quality equipment with Robust, Industrial build for long life with minimal maintenance
- All parts in contact with olives, paste, or oil made of high quality AISI 304 stainless steel
- Safe operation, easy assembly and cleaning
- Minimal water consumption
- Washing - Efficient cleaning and De-Leafing of olives for preserving fruit integrity
- Crushing - Knife breaking technology that increases Polyphenols and Aromas
- Malaxing - Innovative Kneading Blades to ensure efficient continuous processing
- Genesis Malaxing (optional) - New, innovative, produces higher quality olive oil and higher yields than Horizontal/Linear Malaxer
- Horizontal Malaxers (optional)
- Extraction - Patented Horizontal Centrifuge (decanter) that extracts oil without centrifugal separators
- Final Separation or Filtration - Typically NOT required as a result of this Mill's unique processing attributes
The Pagaso X-Series Olive Oil Mills include:

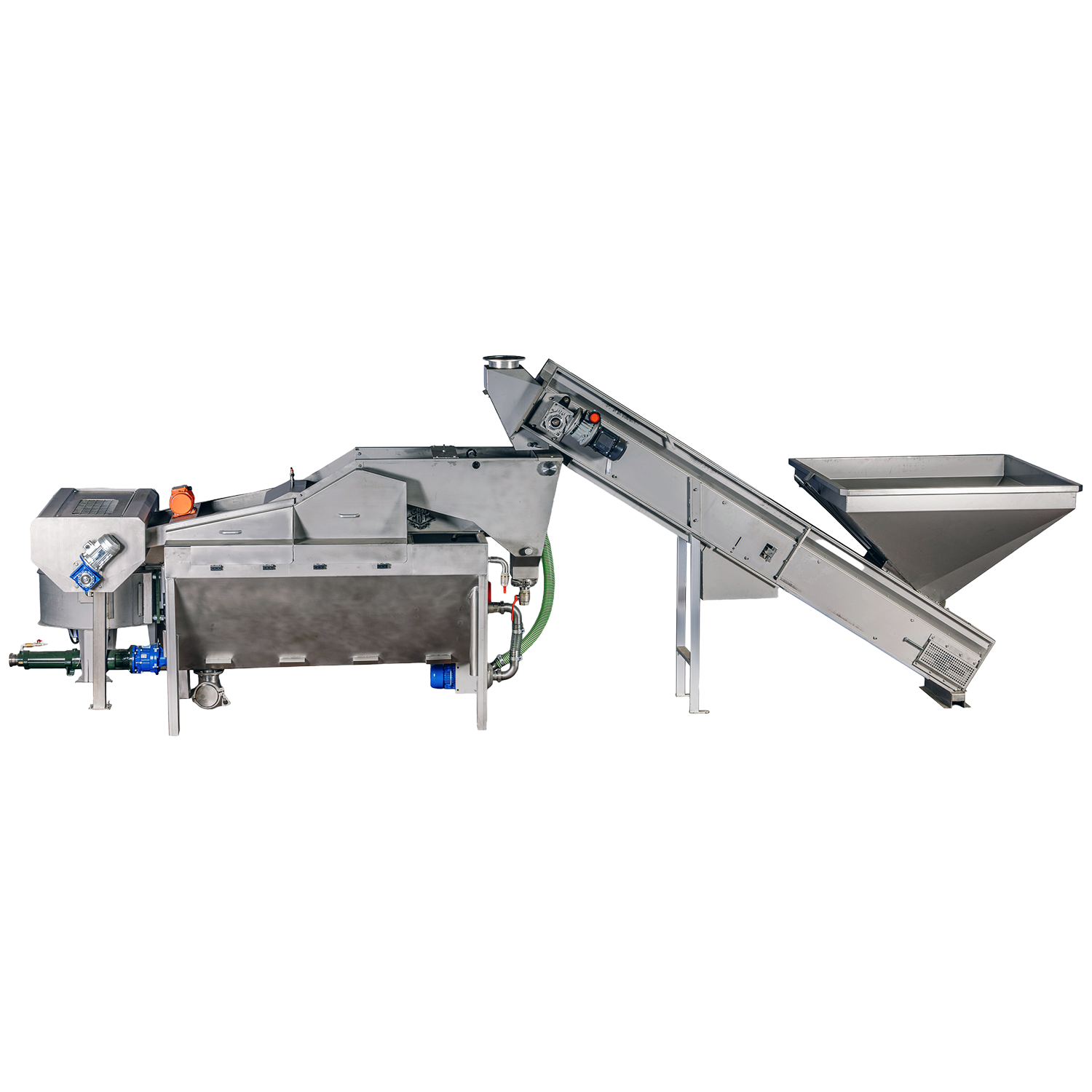

- Olive Conveying Belt Feed Elevator, Washer, and De-Leafer (sized for your system) which includes:
- Stainless Steel Hopper
- Automated Pegaso Hydro-Pneumatic Stainless Steel Washing System which Includes Recirculation Pump and Vibrating Grid
- Motorized Conveying Elevator
- De-Leafer at Top of Elevator
- Belt Cleaning Brush is also included
- Pegaso Genesis or Horizontal Crushing/Malaxing Group Contains (quantities and sizes designed for your system):
- Crusher-Malaxing-Pouring Unit, 2C Modular Genesis Malaxing Groups (optional)
- Crusher and Horizontal Malaxers (optional)
- Typically one Malaxer for each 500kg/hour of production
- Pegaso Genesis Stainless Steel Crusher-Malaxing-Pouring Unit which includes (if applicable and sized for your system):
- Stainless steel conveyor
- Vertical Axis Knife Crusher and Kneading Tank with Stainless Steel Kneading Blades
- Tank is Double Walled/Jacketed to allow for temperature control (Heater/Chiller not Included)
- Temperature Probe
- Overflow Probe
- Mono Pump with Mechanical Variator for feeding the Centrifugal Decanter

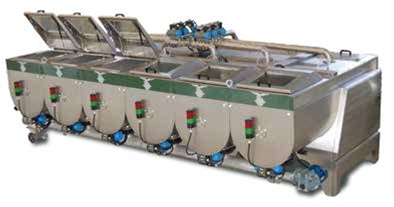

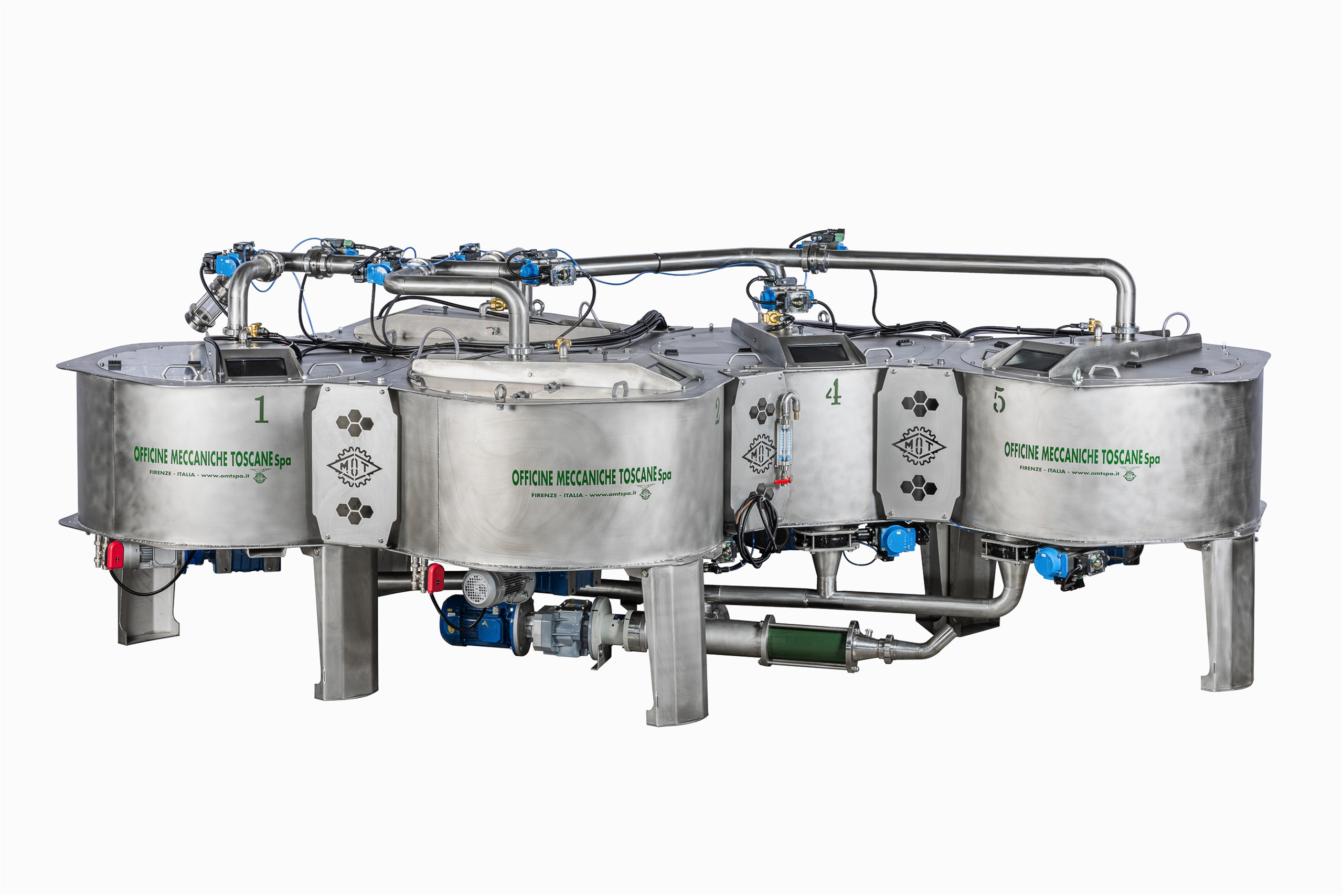

- Pegaso Genesis 2C Malaxing or Horizontal Malaxing Group (quantities and sizes designed for your system):
- Stainless Mixing Vats/Tank
- Vats/Tanks are Double Walled/Jacketed to allow for temperature control (Heater/Chiller not Included)
- Temperature Probes
- Overflow Probes
- Temperature control for independent control of each Vat/Tank
- Anti-Fog Inspection Glass
- New design of Mixing Blades for continuous processing of olive oil paste
- Mono Screw Pump with Inverter for feeding the Centrifugal Decanter

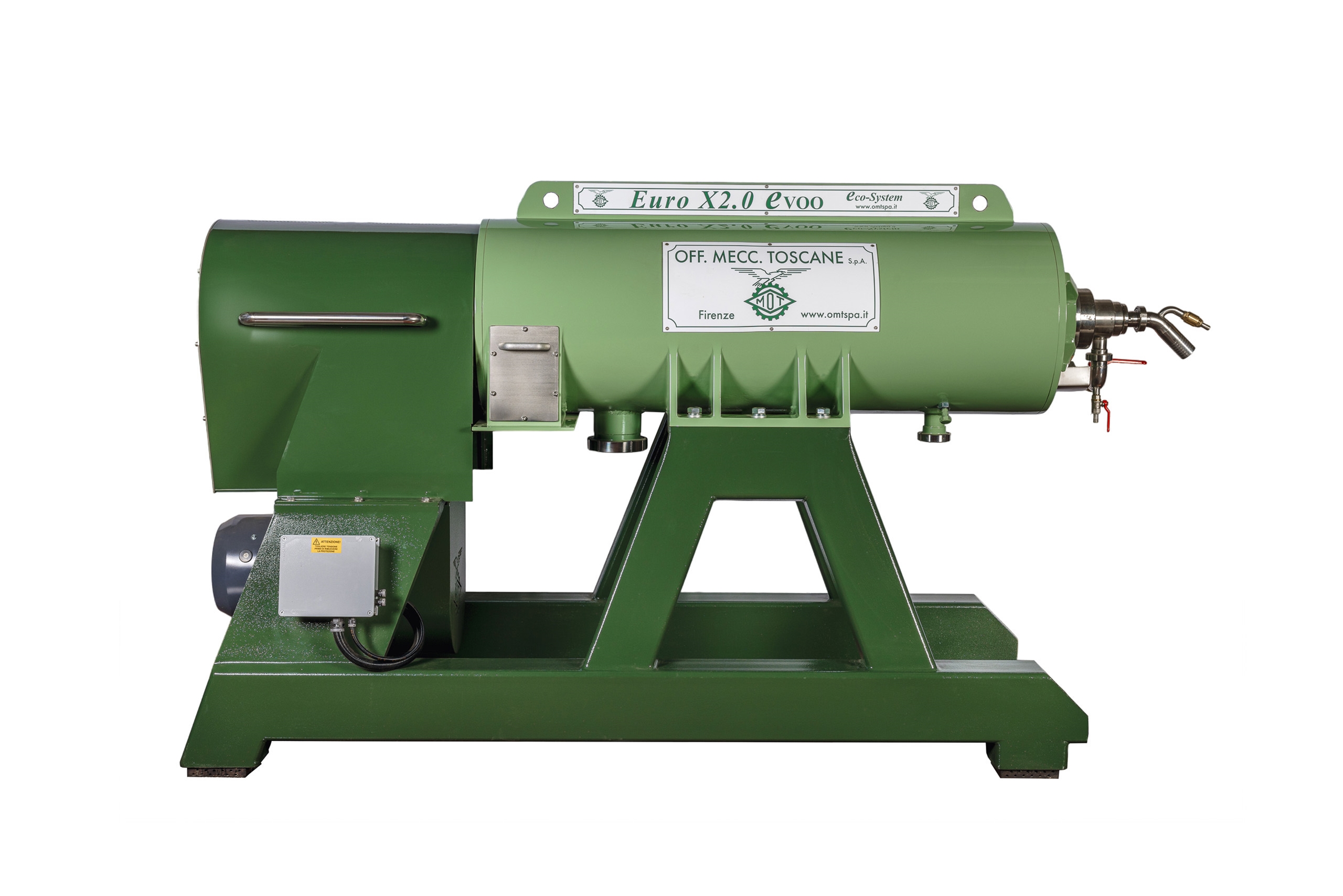

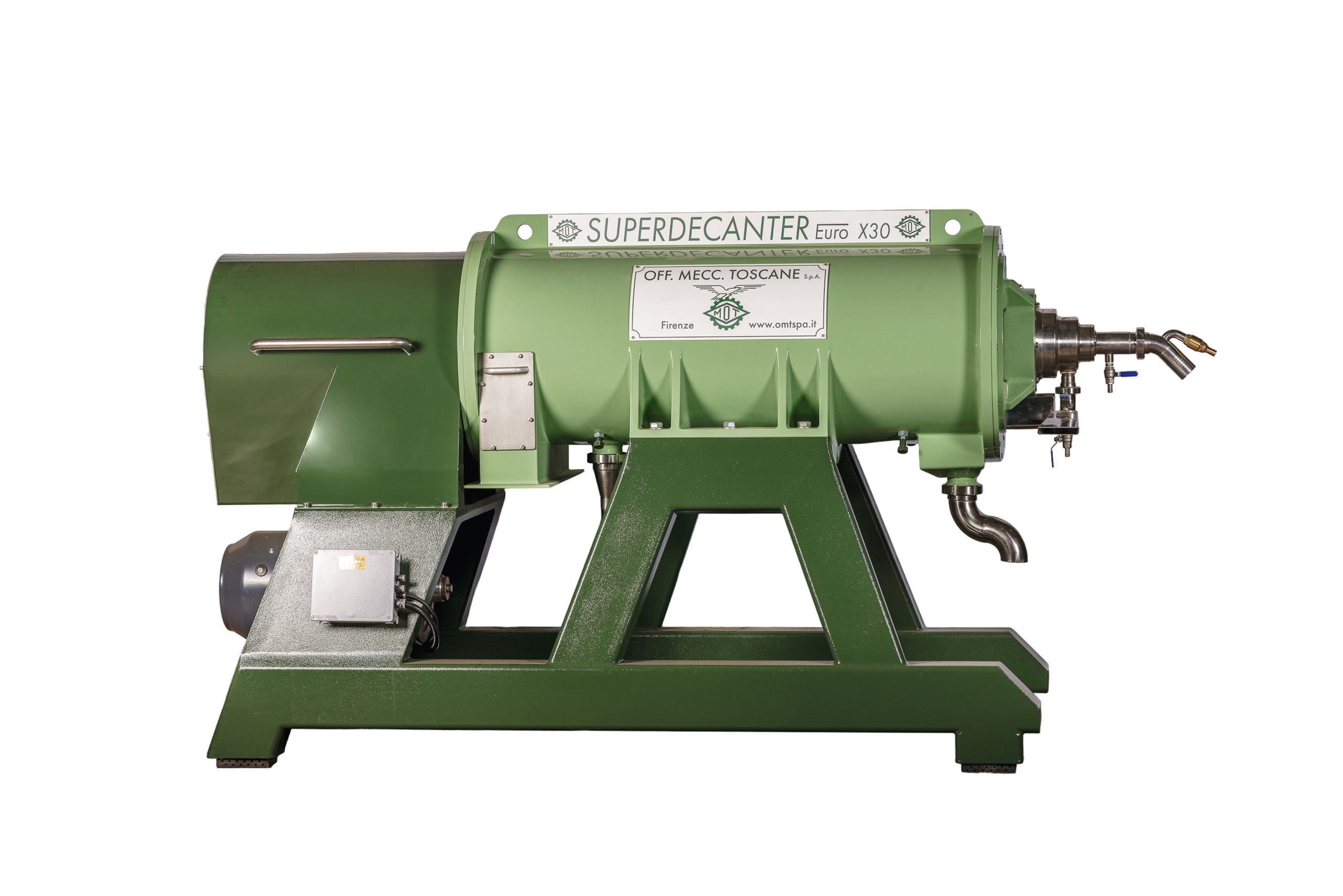

- Pegaso Euro X15, X20, X30 or X50 Horizontal 2-Phase Centrifugal Extractor Decanter
- Made up of stainless internal screw with exclusive OMT design
- Coated for resistance to abrasion with tungsten carbides
- Monolithic Casing
- Inverter for starting
- Heavy duty support base/frame
- Conveying System for Liquid Husk which includes:
- Stainless steel Charge Hopper
- Mono Pump
- Stainless Steel Tank for Finished Olive Oil

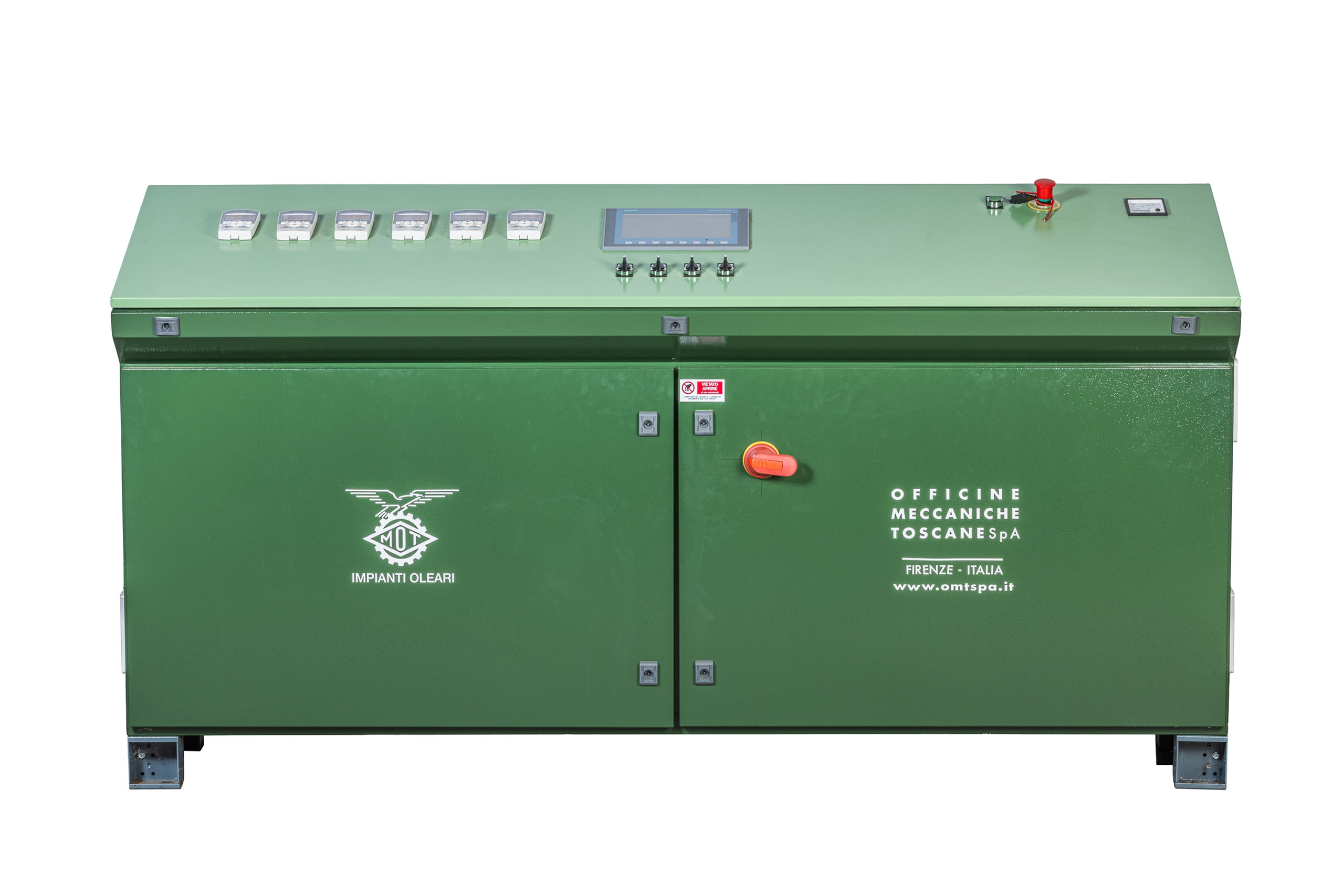

- Pegaso Electronic Control Panel
DETAILS
- Hourly Production: 1500kg, 2000kg, 3000kg, or 5000kg (subject to quality, ripeness, and preservation of olives)
- Automatic System
- Continuous Processing
- 2-Phase System
- 2-Phase Horizontal Centrifugal Extractor Decanter
- New and Innovative Genesis Crusher-Malaxing Group or Crusher and Horizontal Malaxing Group with Separate Crusher
- Drum internal length: 380mm (X15, X20), 450mm (X30, X50)
- Drum Useful Length: 1600mm (X15, X20, X30), 1932mm (X50)
- Drum Speed in RPM's: X15 = 3500, X20 = 3300, X30 = 3100, X50 = 3200
- Power & Consumption: 3-phase & 35kw, 50kw, 70kw or 100kw
- Floor Space requirements: 400 to 800 square feet
- Made in Italy by OMT
OPTIONS
- New Genesis Malaxing Group
- Traditional Horizontal/Linear Malaxing Group
- Touchscreen Control Panel - Allows Remote Support
CALL TO ORDER
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY
We will call and/or email with actual shipping and crating costs prior finalizing your order.
