Peristaltic pumps provide the gentlest and most sanitary method of transferring material, which is why most winemakers consider them to be their “Go To” Pump.
A flexible silicone hose runs from the intake to the discharge connection along the inside wall of the housing and is progressively squeezed by a set of rollers as they revolve around a center axis, moving material through the hose. The alternating compression and release creates a vacuum within the hose resulting in continuous flow of material through the pump. It is entirely contained within the hose from entrance to exit, avoiding any contact with mechanical components, and continuously moved via constant vacuum pressure.

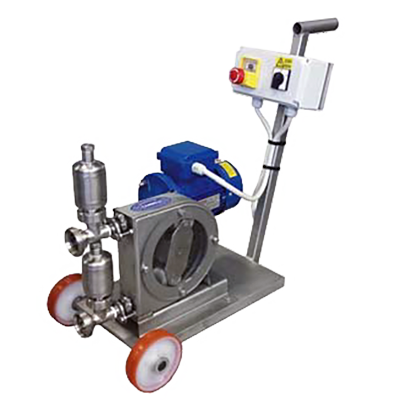

The Zambelli Zeta PE-16 and Zeta PE-25 Single-Speed Peristaltic Pumps are ideal for transferring wine between fermentations or in conjunction with your Plate Filter or Bottle Filler- providing the speed and power of a flexible impeller pump but with gentleness and consistency that goes unmatched.
DETAILS
A flexible silicone hose runs from the intake to the discharge connection along the inside wall of the housing and is progressively squeezed by a set of rollers as they revolve around a center axis, moving material through the hose. The alternating compression and release creates a vacuum within the hose resulting in continuous flow of material through the pump. It is entirely contained within the hose from entrance to exit, avoiding any contact with mechanical components, and continuously moved via constant vacuum pressure.
The Zambelli Zeta PE-16 and Zeta PE-25 Single-Speed Peristaltic Pumps are ideal for transferring wine between fermentations or in conjunction with your Plate Filter or Bottle Filler- providing the speed and power of a flexible impeller pump but with gentleness and consistency that goes unmatched.
- Self-priming—can be dry run without damaging the pump
- Reversible flow
- Intended for transferring fluid only
- 3 Bar Maximum Pressure
- Pressure Compensators at intake & discharge to ensure smooth consistent flow
- 220v single-phase motor
- 1.5" Tri-Clamp Intake & Discharge Connections
- Food-Grade NBR Inner Tube
- AISI 304 Stainless Steel
- Made in Italy
| ZETA-PE 16 | ZETA-PE 25 | |
| VOLUME: | 4 gal/min (15 lt) | 9 gal/min (32 lt) |
| PRESSURE: | 44 PSI (3 Bar) | 44 PSI (3 Bar) |
| MOTOR: | 0.5 HP, 220v 1-Ph, 1.7A | 0.8 HP, 220v 1-Ph, 2.5A |
| CONNECTION: | 1.5" Tri-Clamp | 1.5" Tri-Clamp |
| INNER HOSE DIAMETER: |
0.6 in (16 mm) | 1.0 in (25 mm) |
| DIMENSIONS Length: Width: Height: |
17 in (430 mm) 16 in (400 mm) 30 in (750 mm) |
21 in (530 mm) 17 in (420 mm) 30 in (750 mm) |
| WEIGHT: | 77 lb (35 kg) | 99 lb (45 kg) |
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
