Peristaltic Pump, "Zeta-PE"
Variable Speed with Hopper

Price: make selection(s)
  • Item #PPZ-
- +
Peristaltic pumps provide the gentlest and most sanitary method of transferring liquid, must, marc, and whole grapes; which is why most winemakers consider them to be their “Go To” Pump.

A flexible silicone hose runs from the intake to the discharge connection along the inside wall of the housing and is progressively squeezed by a set of rollers as they revolve around a center axis, moving material through the hose. The alternating compression and release creates a vacuum within the hose resulting in continuous flow of material through the pump. It is entirely contained within the hose from entrance to exit, avoiding any contact with mechanical components, and continuously moved via constant vacuum pressure.

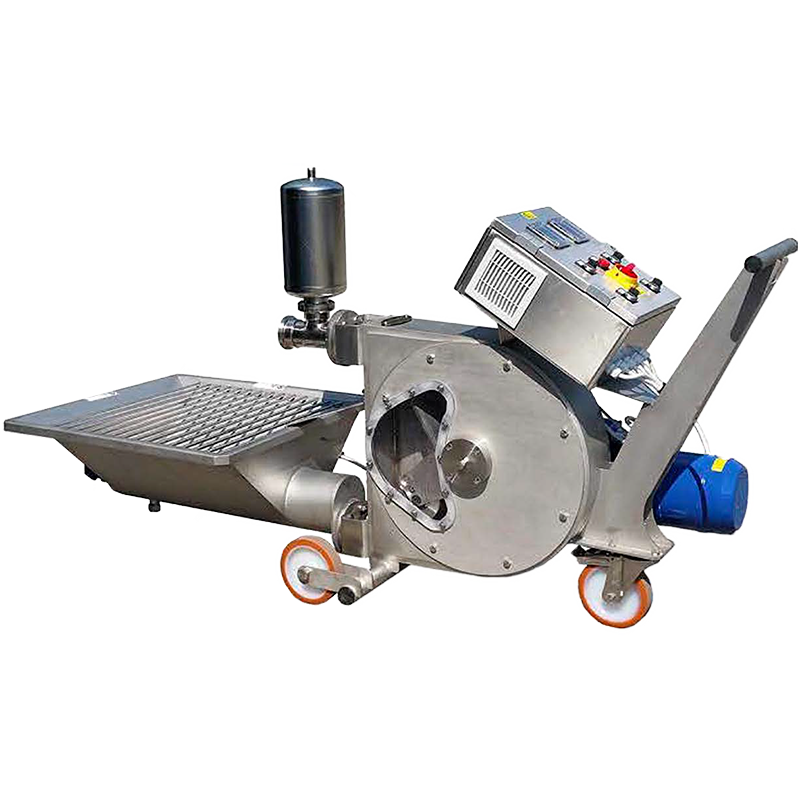

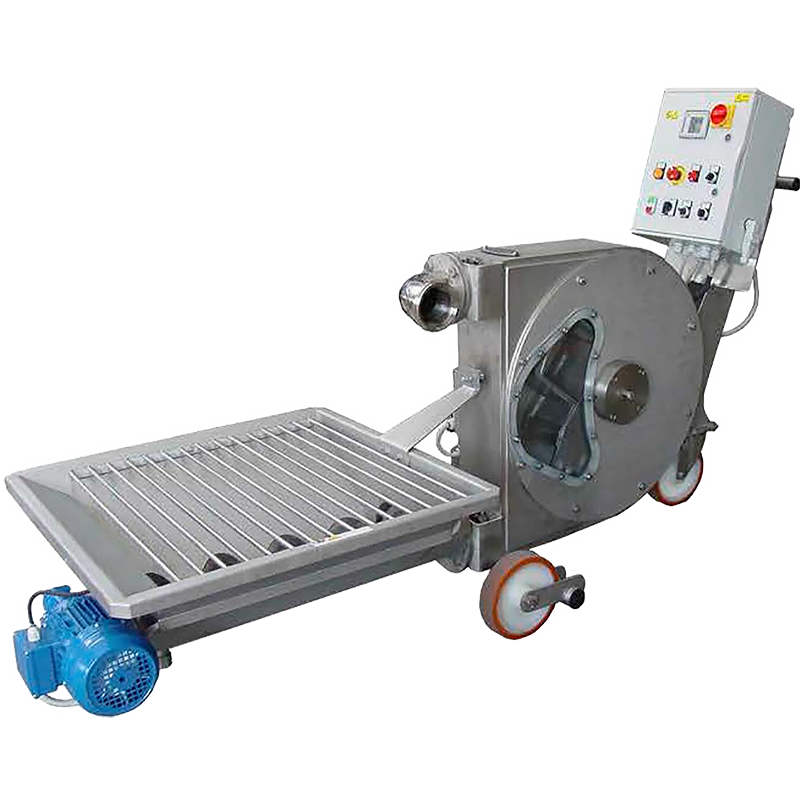

The Zambelli Zeta-PE Variable Speed Peristaltic Pumps with Hoppers are the most versatile pumps produced by Zambelli with the attached hopper and inherent options making it suitable for far more than just an in-line pump; but one that is capable of acheiving all pumping functions from initial destemming to final bottling.

DETAILS
  • Equipped with on-board variable speed control unit
  • Self-priming and can be dry run
  • Reversible flow
  • 6 Bar Maximum Pressure
  • Pressure Compensators at intake & discharge to ensure smooth consistent flow
  • 220v single-phase motor
  • Tri-Clamp Intake & Discharge Connections
  • Food-Grade NBR Inner Tube
  • AISI 304 Stainless Steel
  • Made in Italy
AVAILABLE OPTIONS
  • Laser-Level Sensor and Frequency Control to automatically adjust speed of Hopper & Pump
  • Vacuum System for increased oxidation prevention
  ZETA-PE50 W/ HOPPER
ZETA-PE65 W/ HOPPER
VOLUME
Min:
Max:

7 gal/min (28 lt)
57 gal/min (217 lt)

21 gal/min (80 lt)
97 gal/min (367 lt)
PRESSURE: 87 PSI (6 Bar) 87 PSI (6 Bar)
MOTOR: 4.0 HP, 220v 1-Ph 5.5 HP, 220v 1-Ph
CONNECTION: 2.5" Tri-Clamp 3.0" Tri-Clamp
DIMENSIONS
Length:
Width:
Height:

68 in (1750 mm)
24 in (600 mm)
43 in (1100 mm)

75 in (1900 mm)
28 in (700 mm)
51 in (1300 mm)
WEIGHT: 540 lb (245 kg) 690 lb (315 kg)













CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
