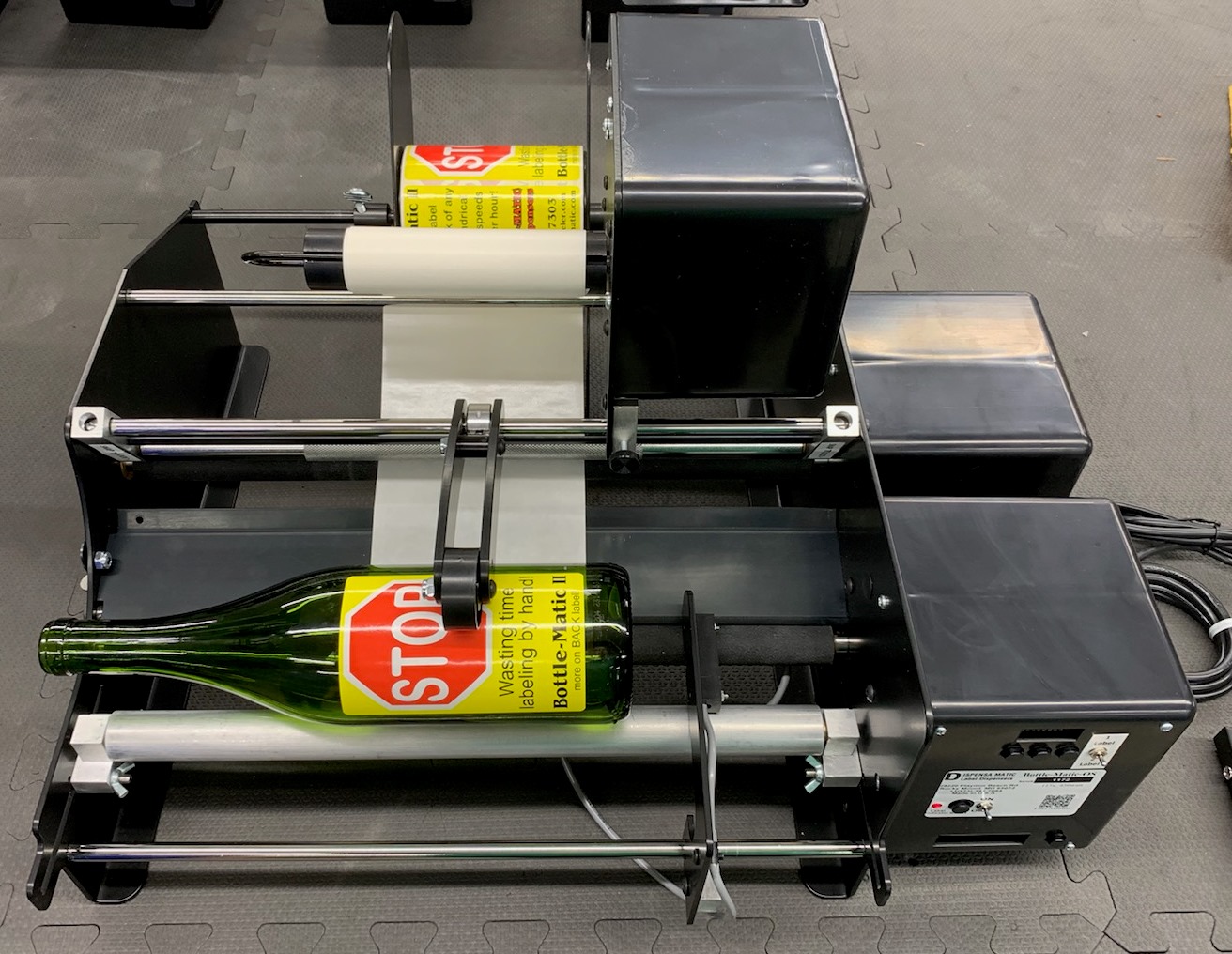

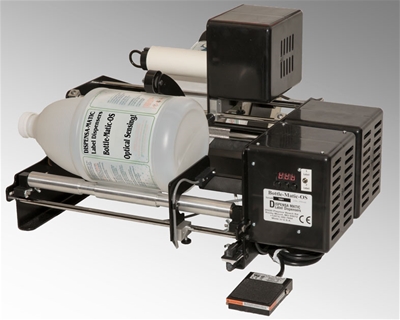

Bottle-Matic-OS (Optical Sensing) is the latest addition to the Bottle-Matic lineup! If you want the ultimate in benchtop Semi-Automatic bottle labeling, this is it! The Bottle-Matic-OS's Bottle-Detect Sensor automatically activates the labeler as soon as the bottle is inserted (the Labeler is still supplied with a foot switch as a back-up). The discarded label-backing paper is automatically rewound via the on-board Waste Rewinder.
DETAILS
Dispensing Tables: formed out of 6061-T6 Aluminum. The peel edge is hand milled to spec within .001″ using a special hand-made cutting tool to get that perfect peeling edge needed to dispense labels without tearing the backing paper. (35 years of perfecting the peeling action) Dispensing tables are POLISHED with ultra-fine polishing compound so paper flows freely around the plate.
Motors: Bottle-Matic uses DUAL AC shaded pole gear motors, made in the USA, to our specifications.
Bottle-Matic OS Label Requirements:
DETAILS
- Dispensa-Matic’s own NO-ADJUST optical sensors (requires no sensor adjustment or cleaning)
- Capable of dispensing labels as thin as 1mm
- Reduces bubbles
- Proportional tapering
- 8″ diameter capability
- Can switch between single label application or double labels (front & back)
- Automatic Bottle-Detect Sensor, Waste Re-Winder, and Label Counter included
- 16″ wide frame accomadates large bottles, including 3 liter wine bottles & 1 gallon jugs
- Standard sensor is for opaque labels only.
- For transparent labels: An optional “black line” sensor can be special ordered at no additional cost.
- Containers smaller than 3/4″ in diameter require TALL roller blocks to accommodate the smaller vessel.
Dispensing Tables: formed out of 6061-T6 Aluminum. The peel edge is hand milled to spec within .001″ using a special hand-made cutting tool to get that perfect peeling edge needed to dispense labels without tearing the backing paper. (35 years of perfecting the peeling action) Dispensing tables are POLISHED with ultra-fine polishing compound so paper flows freely around the plate.
Motors: Bottle-Matic uses DUAL AC shaded pole gear motors, made in the USA, to our specifications.
Bottle-Matic OS Label Requirements:
- Must be on 3” core
- Must have approximately an 1/8” gap between labels

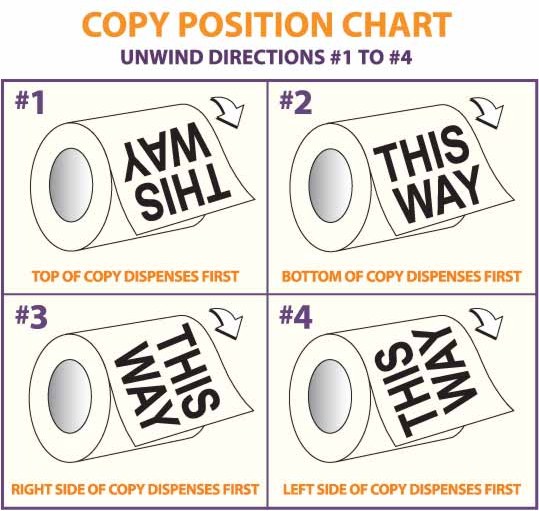

- Must be in copy position 3 or 4 – Copy position 3 is recommended
- Maximum roll diameter 9”
- Label must be 1 Mil or thicker
- Label widths for the Bottle-Matic OS 16″ can be between 2″ & 15″ wide.
