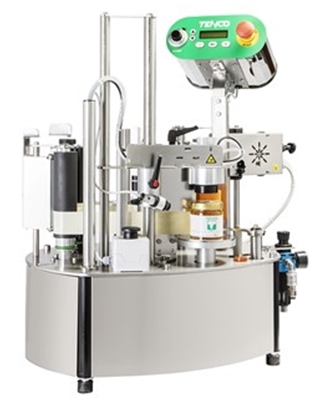

Tenco ET-Pro Semiautomatic Labeling Machine
Tenco ET-Pro Semiautomatic single reel bench top labeling machine for tapered or square bottles.
This semiautomatic table-top labelling machine for self-adhesive labels application onto round, square, conical and shaped containers with a diameter / base size between 55 and 120 mm. Suitable for plastic bottles / containers. Manual bottle insertion in vertical position. Leuze fork photocell (standard) or ultrasonic fork sensor for transparent labels (optional). Pneumatic cylinder for blocking the container. The bottle rotates onto a motorized plate and stays in vertical position. Digital display with 19 recordable programs. Hot foil printing unit for lot number and best before date overlay.
CALL TO ORDER
WMD Equipment - Your Trusted Source for Labeling & Packaging Equipment
Tenco ET-Pro Semiautomatic single reel bench top labeling machine for tapered or square bottles.
This semiautomatic table-top labelling machine for self-adhesive labels application onto round, square, conical and shaped containers with a diameter / base size between 55 and 120 mm. Suitable for plastic bottles / containers. Manual bottle insertion in vertical position. Leuze fork photocell (standard) or ultrasonic fork sensor for transparent labels (optional). Pneumatic cylinder for blocking the container. The bottle rotates onto a motorized plate and stays in vertical position. Digital display with 19 recordable programs. Hot foil printing unit for lot number and best before date overlay.
- Table top labeling machine Et Mini Pro
- Container type: Cylindrical, shaped, square and conical
- Container size: min/max: from 55 to 120 mm
- Production: up to 600 bph depending on the operator and container / label size
- Label positioning accuracy: max ± 3,0 mm
- Digital display (19 recordable programs)
- Nr 1 labelling station (wrap around or front and back label)
- Paper passage: 170 mm
- Reel maximum external diameter: 280 mm
- Reel core: 76 mm
- Single-phase motors
- Compressed air supply: 3-4 bar
- Electric supply: 220V 60Hz single phase
- Power consumption: 0,4 KW
- Weight: 35 Kg
- CE certified
- Option available for Hot Foil Printer
- Option avialable for Date or Lot printing
