FZ30 30 Plate Filter with Pump (20x20)
(720 - 1320 Lt/h)

Price: $1,500.00
  • Item #PFZ-Z30

Optional Equipment:

- +

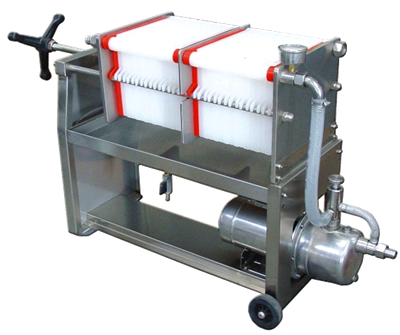

The Zambelli FZ30 is a high-quality 20x20 Plate Filter with 30 food-grade polypropylene plates, a filtration surface of 1.2 m2, and an output of up to 1320 liters per hour. With it's AISI 304 Stainless Steel Carted Frame & Hardware, 3/4" MNPT inlet & outlet ports with Barbed Adapters, and an on-board Ebara JEM56 Pump (with 1.0” MNPT inlet); this filter achieves maximum portability and professional grade filtration at an affordable price point. Optional Crossover Plate (also referred to as a "Double Filtration" or "Bypass" Plate) available for filtering with multiple filter sheet depths at once (i.e. using both coarse and fine filter sheets at the same time).

DETAILS
  • 30 Polypropylene Plates (20 x 20 cm)
  • Filtration rate of 720 - 1320 Lt/min (190 - 350 gal/h)
  • Total filtration area of 1.2 m2 (13 ft2)
  • Pressure Gauge
  • Flow regulation valve
  • 3/4” MNPT inlet and outlet
  • 3/4" FNPT x Barbed Adapters included
  • Mounted Ebara JEM56 Pump
  • Crossover Filter Plate OPTIONAL
  • AISI 304 stainless steel construction
  • 20" L x 34" W x 36" H
  • 125 lbs
  • Italian made by Zambelli
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card
