FZ40 40 Plate Filter (20x20)
(960 - 1760 Lt/h)

Price: $1,150.00
  • Item #PFZ-Z40

Optional Equipment:

- +

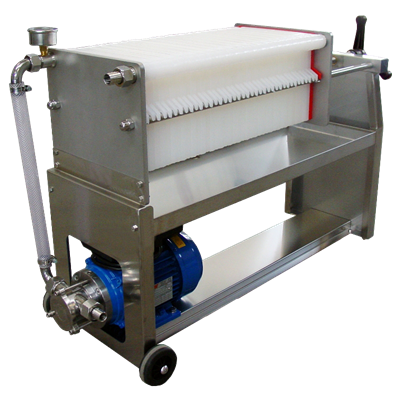

The Zambelli FZ40 is a high-quality 20x20 Plate Filter with 40 food-grade polypropylene plates, a filtration surface of 1.6 m2, and an output of up to 1760 liters per hour. With it's AISI 304 Stainless Steel Carted Frame & Hardware, optional cart-mounted Zambelli T-25 Pump, and 1.5” Tri-Clamp inlet and outlet with 1.5" Tri-Clamp gaskets, clamps, & end caps; this filter achieves maximum portability and professional grade filtration at an affordable price point. Optional Crossover Plate (also referred to as a "Double Filtration" or "Bypass" Plate) available for filtering with multiple filter sheet depths at once (i.e. using both coarse and fine filter sheets at the same time).

DETAILS
  • 40 Polypropylene Plates (20 x 20 cm)
  • Filters up to 960 - 1760 Lt/h (255 - 465 gal/h)
  • Total filtration area of 1.6 m2 (17 ft2)
  • Pressure Gauge
  • Flow regulation valve
  • 1.5" TC inlet and outlet
  • 1.5" TC gaskets, clamps, & end caps
  • Zambelli T-25 Pump OPTIONAL
  • Crossover Filter Plate OPTIONAL
  • AISI 304 stainless steel construction
  • 20” L x 39” W x 26” H
  • 155 lbs
  • Italian made by Zambelli
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
