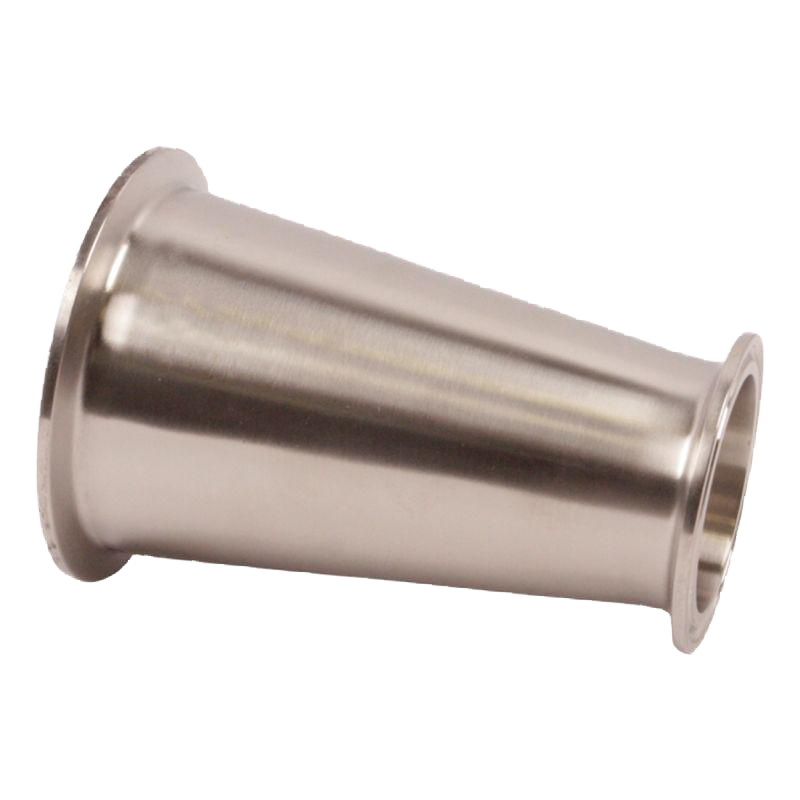

Tri-Clamp Concentric Reducers, as their name implies, reduce in diameter towards the center thus forming a conical cylinder. Constructed of AISI 304 Stainless Steel, they create a sanitary connection between two items differing in diameter (such as a Must Pump and Transfer Hose). A Concentric Reducer is often used inline on a vertical flow application, or if laid horizontally, as an increaser. Concentric reducers have a lower chance of producing agitation like an end cap reducer may.
DETAILS
WMD Equipment
Your Trusted Source for Food & Beverage Processing Equipment & Supplies
DETAILS

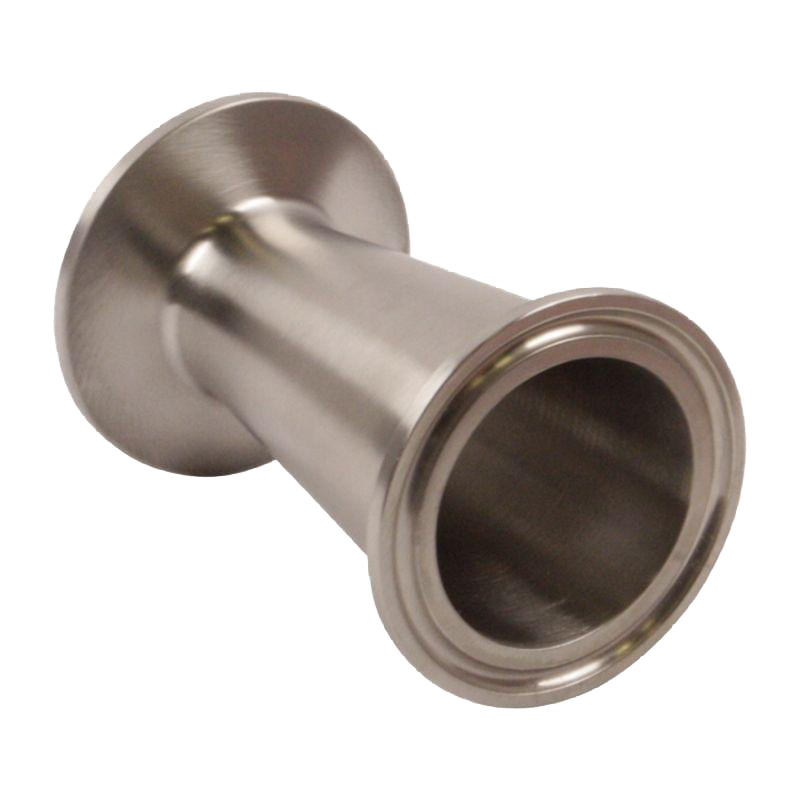

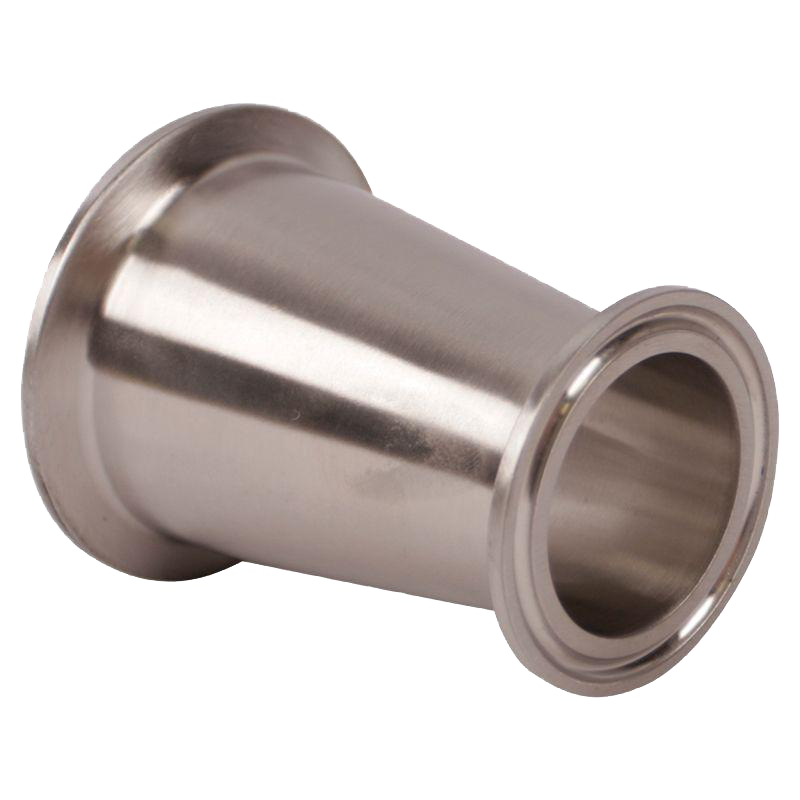

1.5" TC x 1.0" TC | 2.0" TC x 1.5" TC | 2.5" TC x 1.5" TC | 2.5" TC x 2.0" TC | 3.0" TC x 1.5" TC | 3.0" TC x 2.0" TC | 3.0" TC x 2.5" TC | |
CONNECTION TYPE: |
Tri Clamp | Tri Clamp | Tri Clamp | Tri Clamp | Tri Clamp | Tri Clamp | Tri Clamp |
CONNECTION SIZE: |
1.5 in - 1.0 in | 2.0 in - 1.5 in | 2.5 in - 1.5 in | 2.5 in - 2.0 in | 3.0 in - 1.5 in | 3.0 in - 2.0 in | 3.0 in - 2.5 in |
DIMENSIONS Flange Diameter: Flange Diameter: Reducer Length: |
1.98 in (50.39 mm)
1.98 in (50.39 mm) 3.00 in (76.20 mm) |
2.52 in (63.91 mm)
1.98 in (50.39 mm) 3.00 in (76.20 mm) |
3.05 in (77.47 mm)
1.98 in (50.39 mm) 5.00 in (127.00 mm) |
3.05 in (77.47 mm)
2.52 in (63.91 mm) 3.00 in (76.20 mm) |
3.58 in (90.93 mm)
1.98 in (50.39 mm) 7.00 in (177.80 mm) |
3.58 in (90.93 mm)
2.52 in (63.91 mm) 5.00 in (127.00 mm) |
3.58 in (90.93 mm)
3.05 in (77.47 mm) 5.00 in (127.00 mm) |
