Tri-Clamp to National Pipe Thread (NPT) Hose Adapters in AISI 304 Stainless Steel. Both "Male" (MNPT) and "Female" (FNPT) available. See the chart below for pump compatability.
NPT port size is determined by the NPT pipe size interior diameter (ID).
DETAILS
WMD Equipment
Your Trusted Source for Food & Beverage Processing Equipment & Supplies
NPT port size is determined by the NPT pipe size interior diameter (ID).
DETAILS

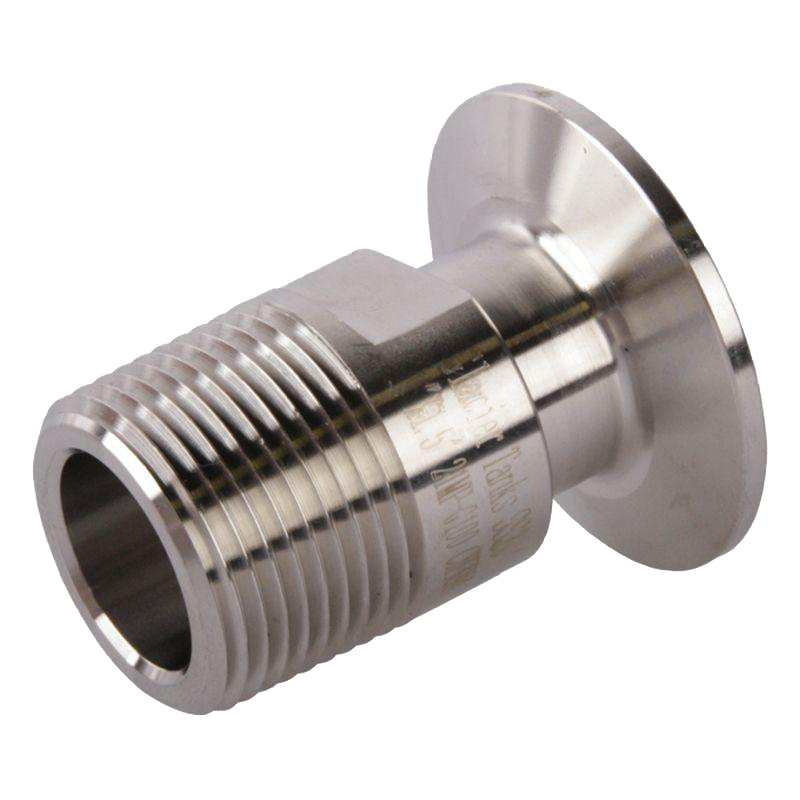

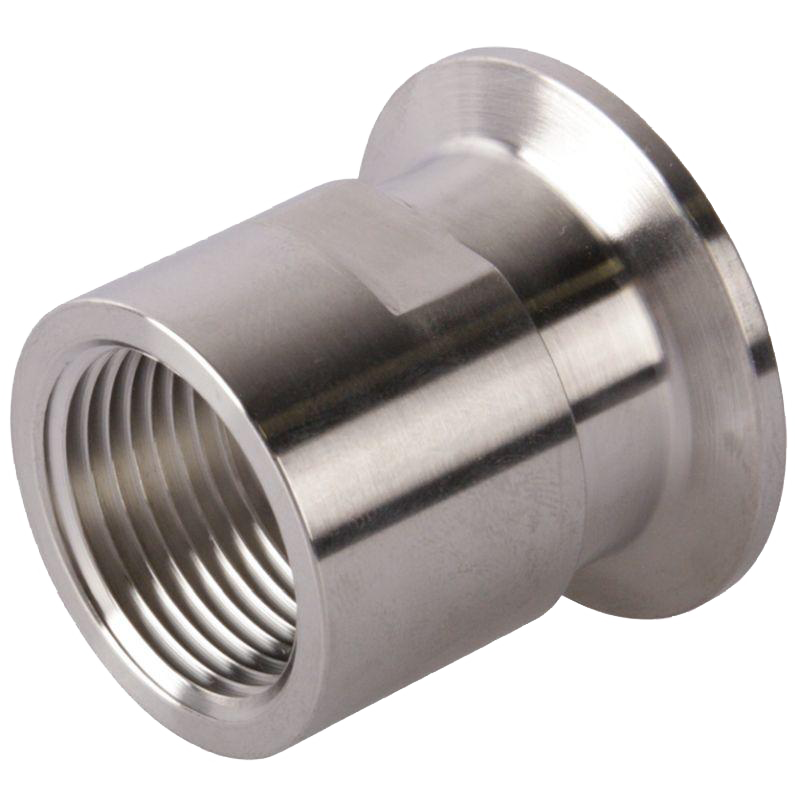

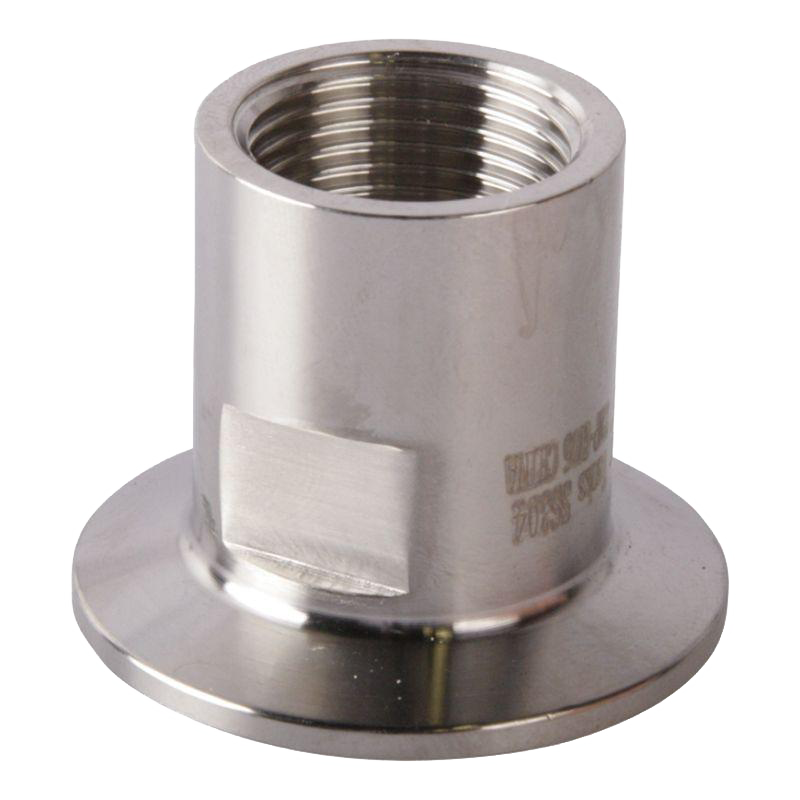

1.5" TC x 3/4" FNPT | 1.5" TC x 1.0" FNPT | 1.5" TC x 3/4" MNPT | 1.5" TC x 1.0" MNPT | |
CONNECTION TYPE: |
Tri Clamp - NPT | Tri Clamp - NPT | Tri Clamp - NPT | Tri Clamp - NPT |
CONNECTION SIZE: |
1.5 in - 3/4 in | 1.5 in - 1.0 in | 1.5 in - 3/4 in | 1.5 in - 1.0 in |
DIMENSIONS Port Diameter: Flange Diameter: Fitting Length: |
0.92 in (23.41 mm)
1.98 in (50.39 mm)
1.58 in (40.13 mm)
|
1.16 in (29.37 mm)
1.98 in (50.39 mm)
1.77 in (44.96 mm)
|
0.92 in (23.41 mm)
1.98 in (50.39 mm)
2.10 in (53.34 mm)
|
1.32 in (33.40 mm)
1.98 in (50.39 mm)
2.25 in (57.15 mm)
|
3/4" FNPT | 1.0" FNPT | 3/4" MNPT | 1.0" MNPT | |
EBARA JEM56: |
X | |||
TELLARINI ALM20: |
X | |||
TELLARINI ALM25: | X | |||
TELLARINI EEM20: |
X | |||
TELLARINI JIMG5: | X | |||
100L-300L VC TANKS: | X |
