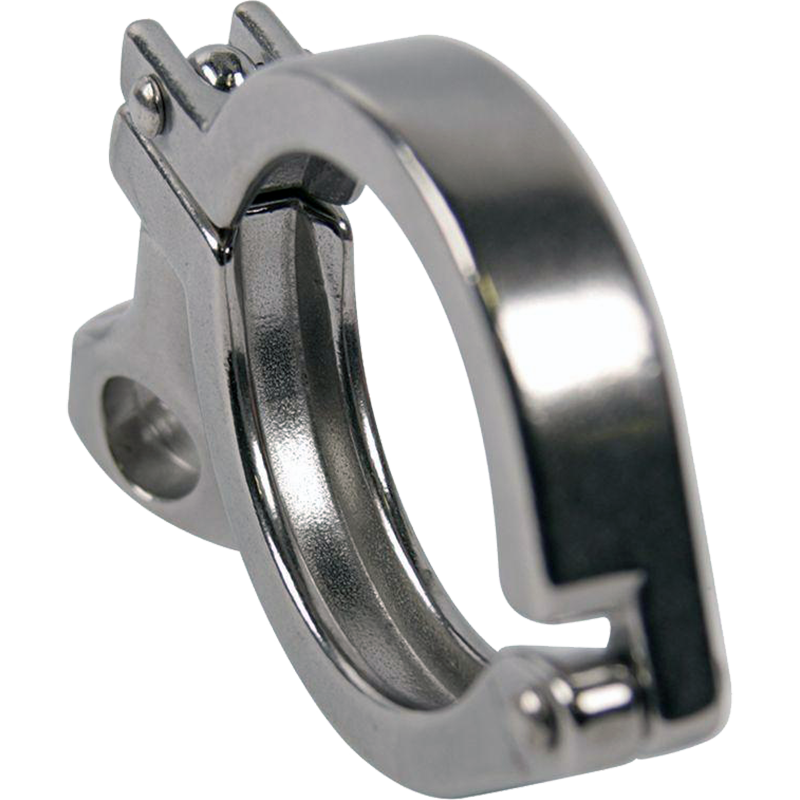

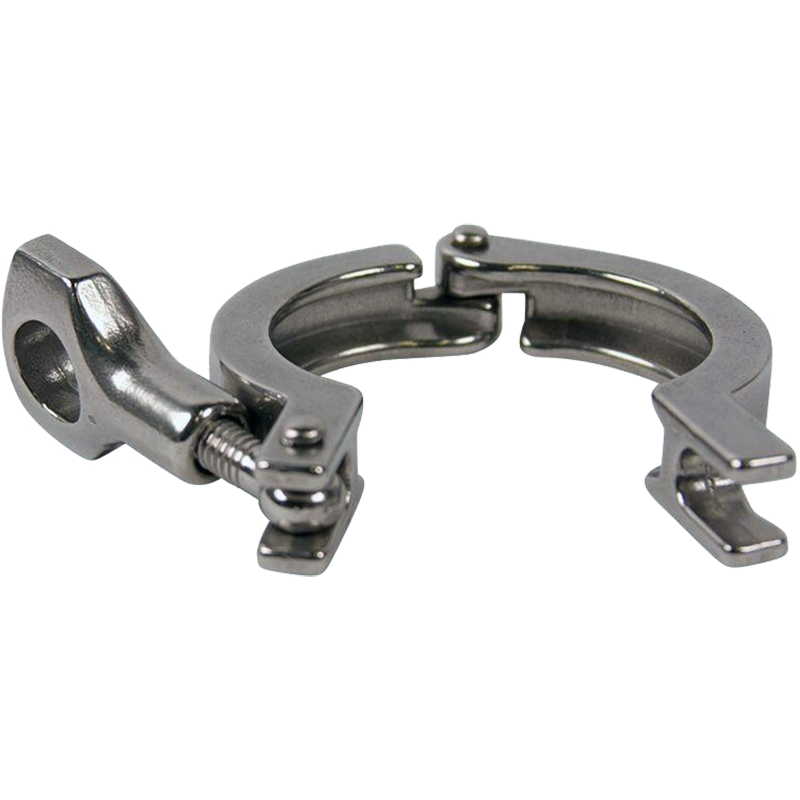

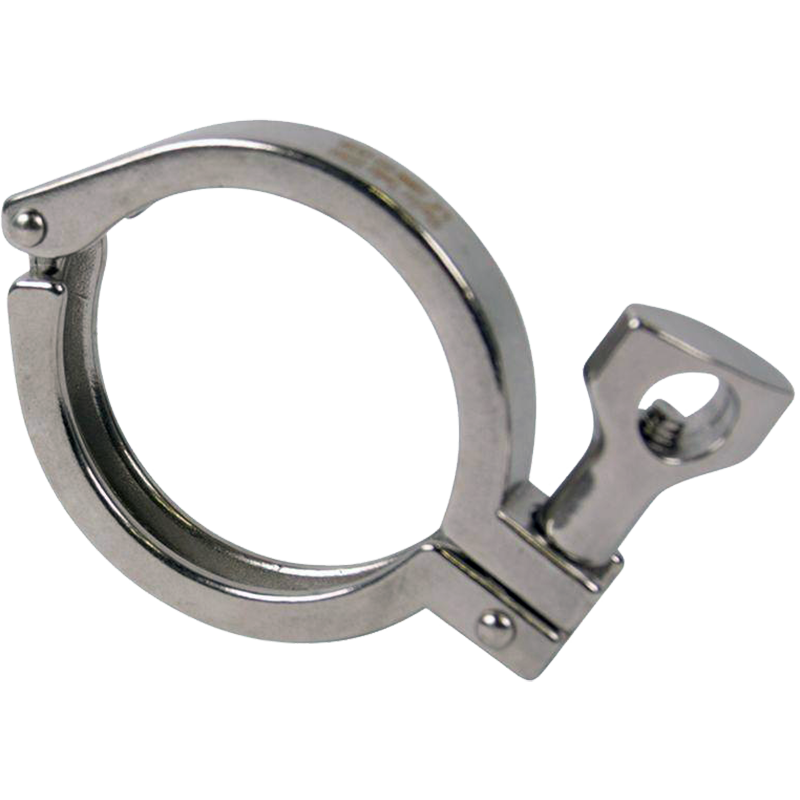

Heavy Duty Sanitary Tri-Clamps. AISI 304 Stainless Steel.
DETAILS
WMD Equipment
Your Trusted Source for Food & Beverage Processing Equipment & Supplies
DETAILS
| 1.5" CLAMP | 2.0" CLAMP | 2.5" CLAMP | 3.0" CLAMP | |
| CONNECTION TYPE: |
Tri Clamp | Tri Clamp | Tri Clamp | Tri Clamp |
| CONNECTION SIZE: |
1.0 in - 1.5 in | 2.0 in | 2.5 in | 3.0 in |
| DIMENSIONS Length: Width: Height: |
3.75 in (95.25 mm) 3.00 in (76.20 mm) 0.83 in (20.96 mm) |
4.50 in (114.30 mm) 3.25 in (82.55 mm) 0.83 in (20.96 mm) |
5.00 in (127.00 mm) 3.75 in (95.25 mm) 0.83 in (20.96 mm) |
5.25 in (133.35 mm) 3.75 in (95.25 mm )0.83 in (20.96 mm) |
| MAX PRESSURE at 70 °F: at 250 °F: |
500 PS I300 PSI |
450 PSI 250 PSI |
400 PSI 200 PSI |
350 PSI 175 PSI |
