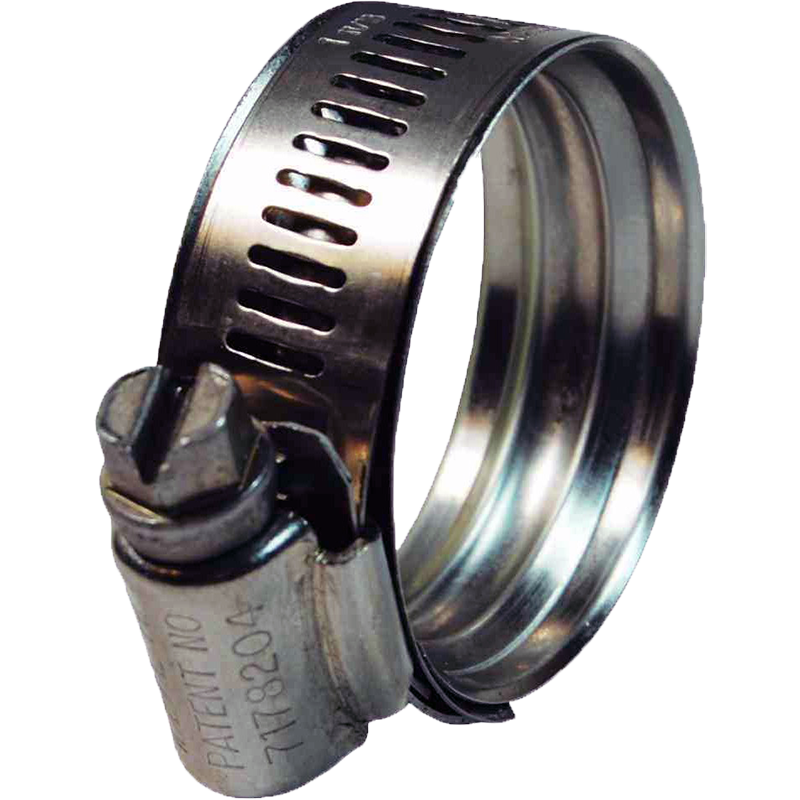

Stainless steel WaveSeal Hose End Clamps provide optimal retention between your Rigid/Reinforced Transfer Hose and Barbed Hose End/Adapter without risking damage to the hose itself. The exterior band operates like a traditional Worm Gear Clamp, while the interior band is seamless and produces an O-Ring effect that prevents leakage.
Our WaveSeal360 Clamps are comprised of two main parts, the clamp assembly and the wave profile SmartLiner. The wave profile SmartLiner is high quality, thin gauge stainless steel specifically tempered to expand and contract with temperature variations. The clamp rides on SmartLiner so pressure is more evenly distributed around the hose.
DETAILS
Our WaveSeal360 Clamps are comprised of two main parts, the clamp assembly and the wave profile SmartLiner. The wave profile SmartLiner is high quality, thin gauge stainless steel specifically tempered to expand and contract with temperature variations. The clamp rides on SmartLiner so pressure is more evenly distributed around the hose.
DETAILS
| 0.75" CLAMP | 1.0" CLAMP | 1.5" CLAMP | 2.0" CLAMP | 3.0" CLAMP | |
| HOSE SIZE: |
0.75 in | 1.0 in | 1.5 in | 2.0 in | 3.0 in |
| DIMENSIONS Width: Min Diameter: Max Diameter: |
SAE Size 16 0.56 in (14.29mm) 1.09 in (28mm) 1.31 in (35.5mm) |
SAE Size 16 0.56 in (14.29mm) 1.09 in (28mm) 1.31 in (35.5mm) |
SAE Size 34
0.56 in (14.29 mm) 1.75 in (44.45 mm)
2.06 in (52.39 mm)
|
SAE Size 36
0.56 in (14.29 mm) 2.31 in (58.74 mm)
2.81 in (71.44 mm)
|
SAE Size 64
0.56 in (14.29 mm) 3.06 in (77.79 mm)
3.81 in (96.84 mm)
|
| MAX TORQUE: |
70 Lbs | 70 Lbs | 70 Lbs | 70 Lbs | 70 Lbs |
