Tri-Clamp to Barbed Hose Adapters in AISI 304 Stainless Steel. The "Long Shank" fittings or longer than standard fittings by 2.0" - 3.0", they're designed to create a secure and sanitary connection between processing equipment and flexible hose.
Adapter size is determined by the outside diameter (OD) of the Tube (barbed end), NOT the outside diameter of the Flange (TC end).
DETAILS
WMD Equipment
Your Trusted Source for Food & Beverage Processing Equipment & Supplies
Adapter size is determined by the outside diameter (OD) of the Tube (barbed end), NOT the outside diameter of the Flange (TC end).
DETAILS
| 1.0" TC x 0.75" BARB (STANDARD) |
1.0" TC x 1.0" BARB (STANDARD) |
2.0" TC x 1.5" BARB (STANDARD) |

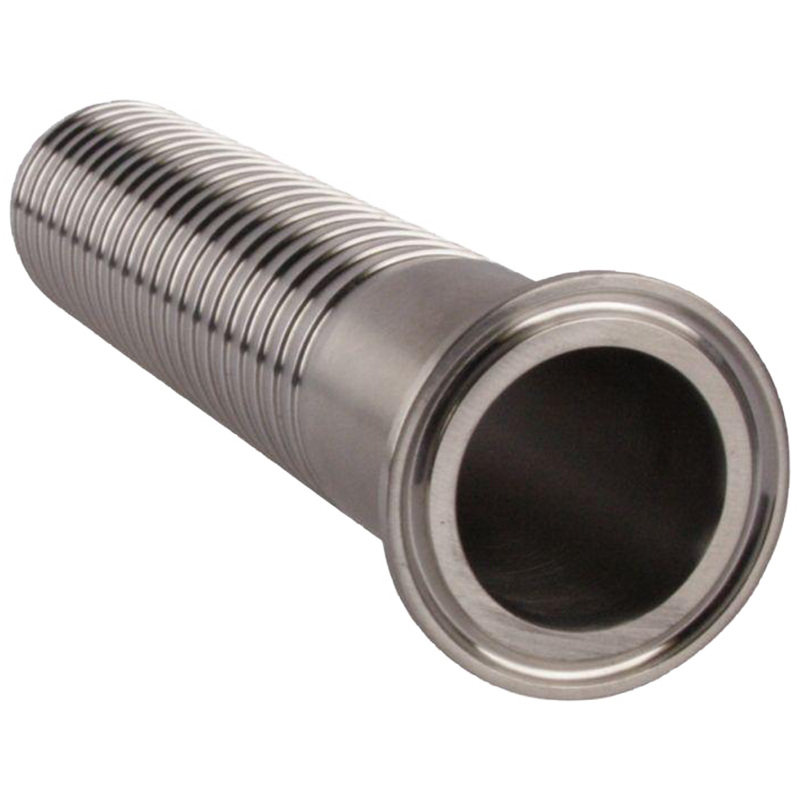

1.5" TC x 1.5" BARB (LONG) |

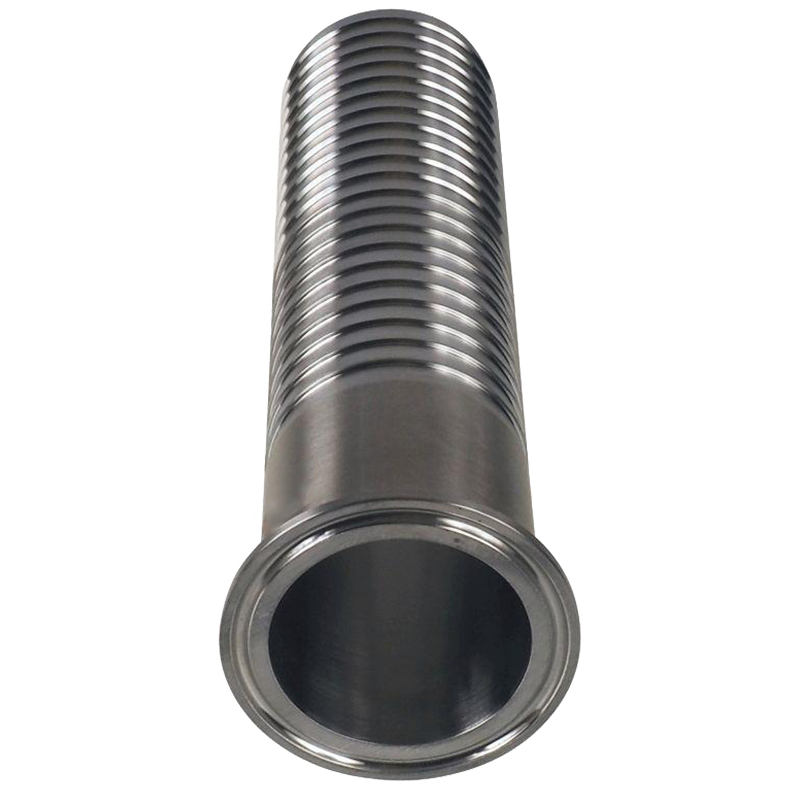

2.0" TC x 2.0" BARB (LONG) |

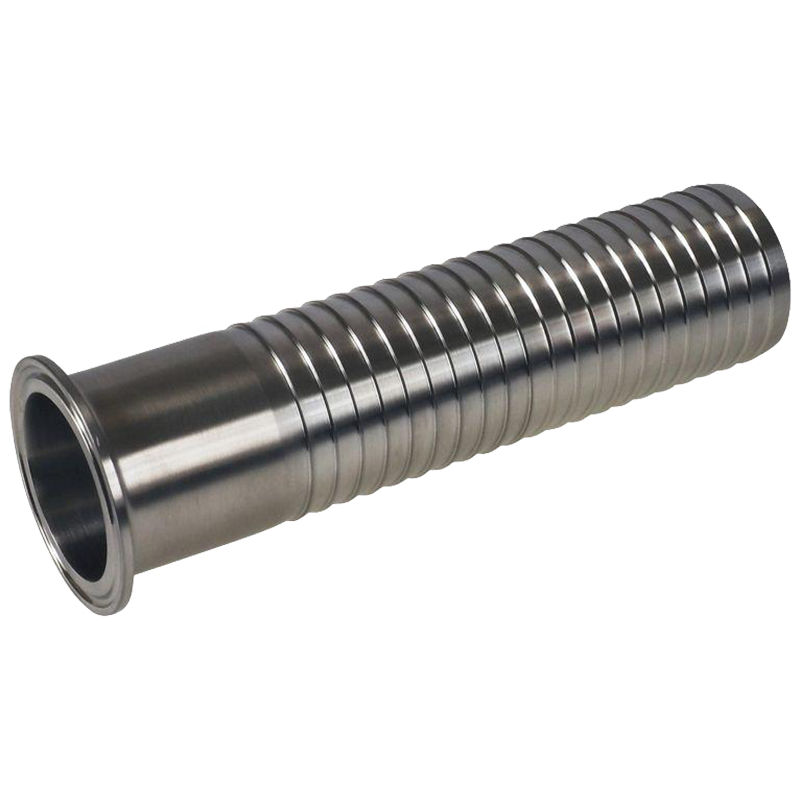

3.0" TC x 3.0" BARB (LONG) |
|
| CONNECTION TYPE: |
Tri Clamp - Hose | Tri Clamp - Hose | Tri Clamp - Hose | Tri Clamp - Hose | Tri Clamp - Hose | Tri Clamp - Hose |
| CONNECTION SIZE: |
1.0 in - 0.75 in | 1.0 in - 1.0 in | 2.0 in x 1.5 in | 1.5 in - 1.5 in | 2.0 in - 2.0 in | 3.0 in - 3.0 in |
| DIMENSIONS Tube Diameter: Flange Diameter: Fitting Length: |
0.80 in (20.32 mm)
1.98 in (50.39 mm)
2.05 in (52.07 mm)
|
1.05 in (26.67 mm)
1.98 in (50.39 mm)
2.05 in (52.07 mm)
|
1.55 in (26.67 mm)
2.52 in (63.91 mm)
2.52 in (63.91 mm)
|
1.55 in (39.37 mm)
1.98 in (50.39 mm)
4.75 in (120.65 mm)
|
2.05 in (52.07 mm)
2.52 in (63.91 mm)
5.00 in (127.00 mm)
|
3.05 in (77.47 mm)
3.58 in (90.91 mm)
5.50 in (139.70 mm)
|
