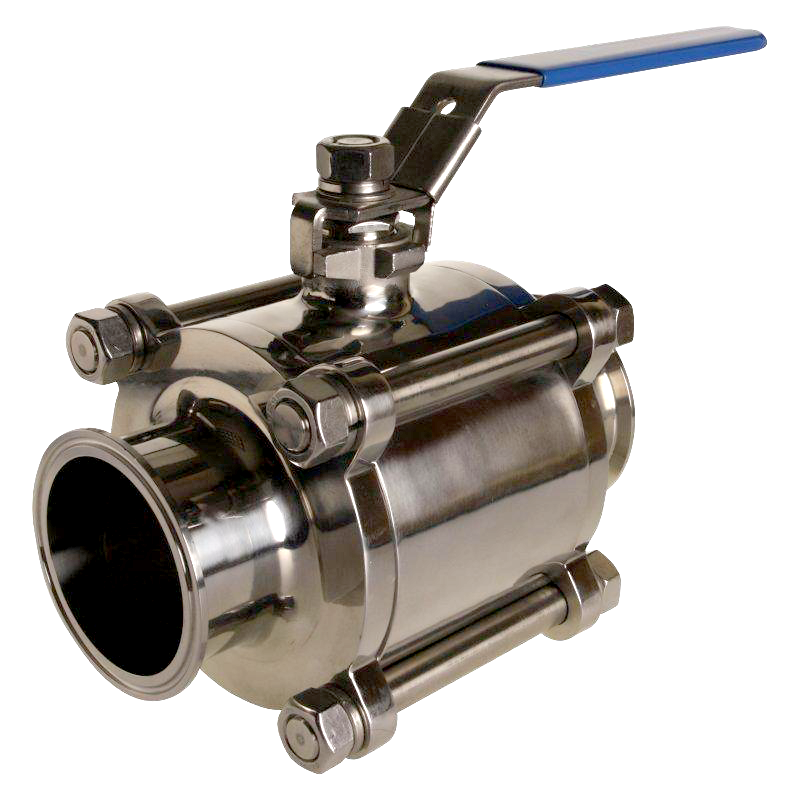

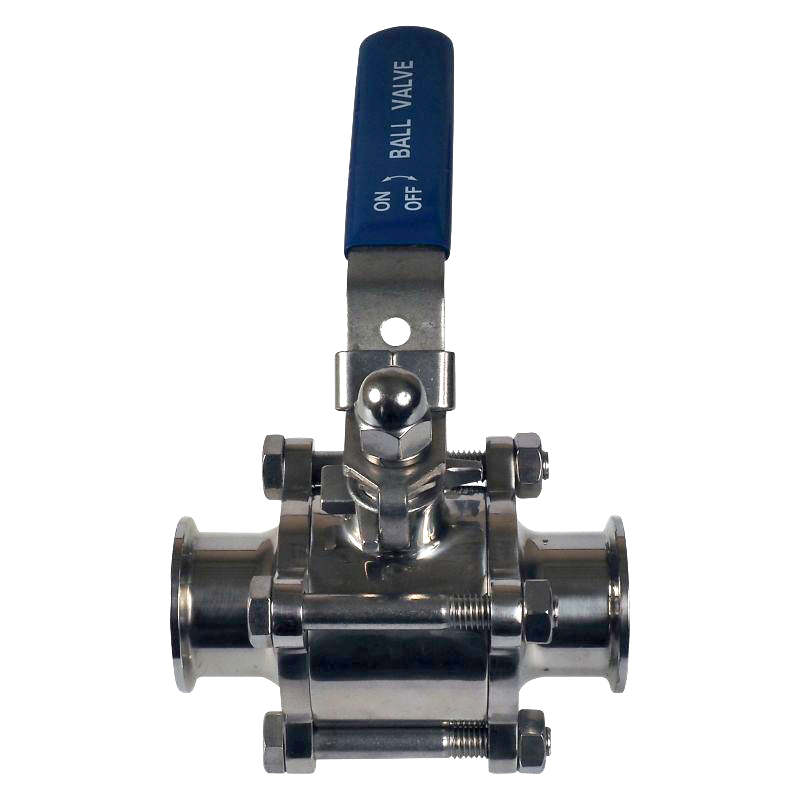

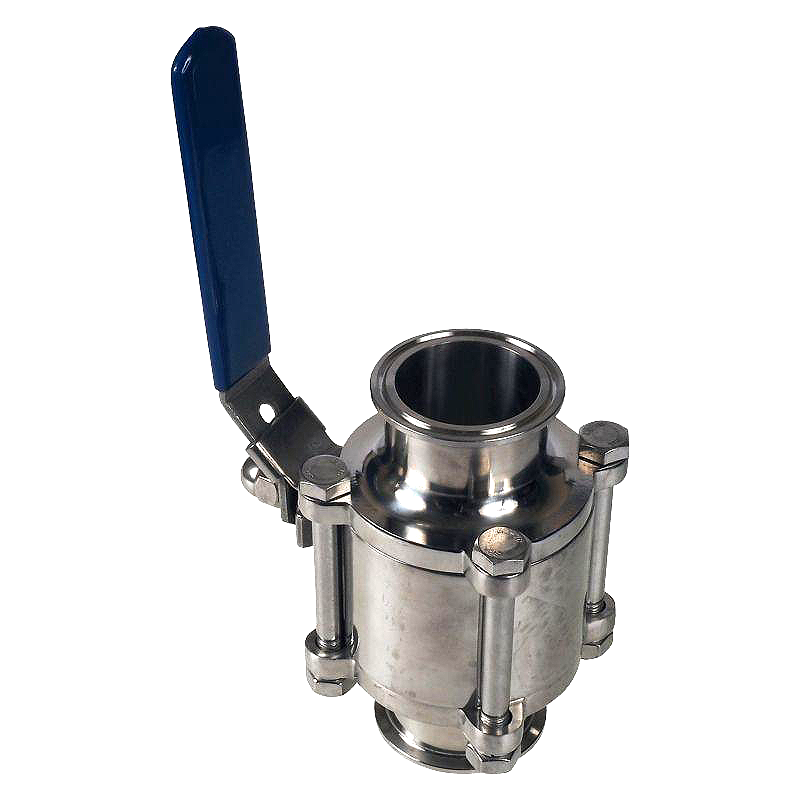

Our Heavy Duty Sanitary Tri Clamp Ball Valves are made from AISI 304 Stainless Steel and offer full port, unobstructed flow. The 3-piece encapsulated body, AISI 304 Stainless Steel ball, and PTFE Seat are capable of handling up to 1000 PSI. The valves can be installed in any position with lockable handles that swing out from center to prevent accidental actuation.
The valves are rebuildable and can easily be disassembled and reassembled for cleaning and sanitizing.
DETAILS
WMD Equipment
Your Trusted Source for Food & Beverage Processing Equipment & Supplies
The valves are rebuildable and can easily be disassembled and reassembled for cleaning and sanitizing.
DETAILS
| 1.5" VALVE | 2.0" VALVE | 3.0" VALVE | |
| CONNECTION TYPE: |
Tri Clamp | Tri Clamp | Tri Clamp |
| CONNECTION SIZE: |
1.5 in | 2.0 in | 3.0 in |
| DIMENSIONS Length: Width: Height: |
3.00 in (76.20 mm) 5.00 in (127.00 mm) 9.00 in (228.60 mm) |
3.50 in (88.90 mm)
5.50 in (139.70 mm) 9.75 in (247.65 mm) |
5.50 in (139.70 mm)
8.25 in (209.55 mm) 14.00 in (355.60 mm) |
