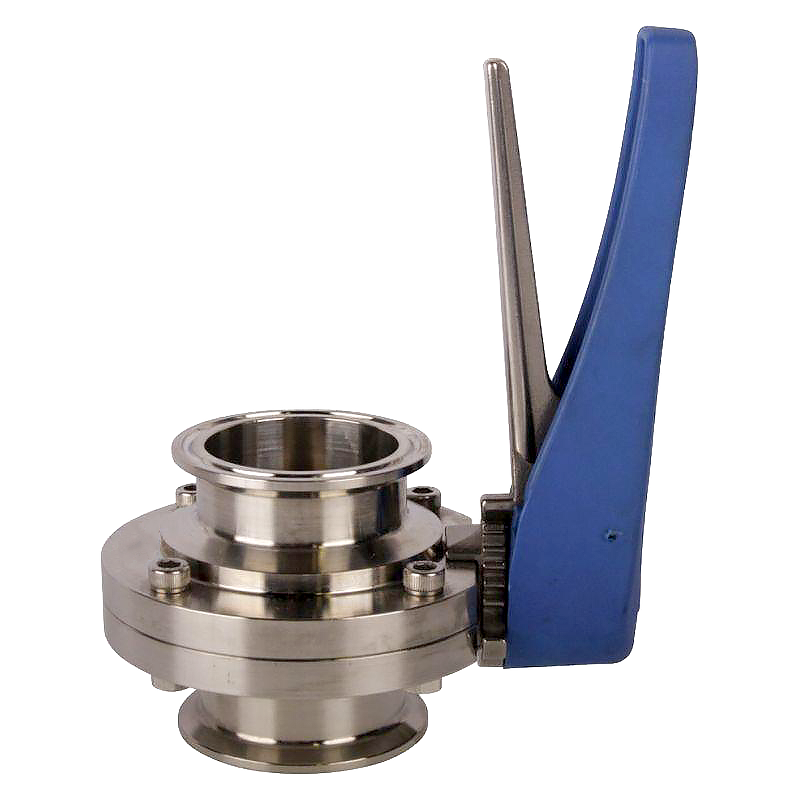

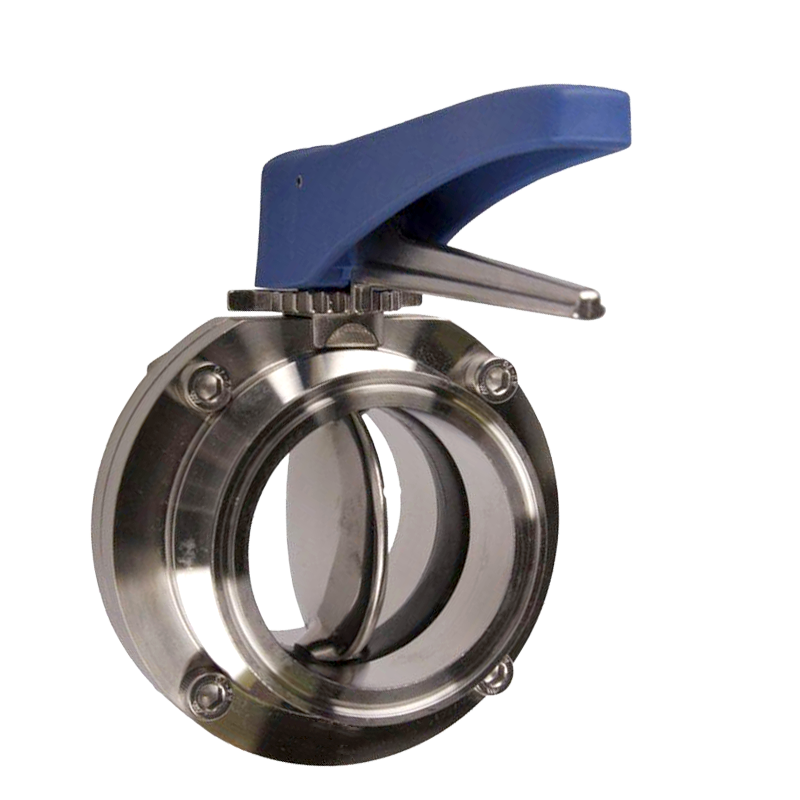

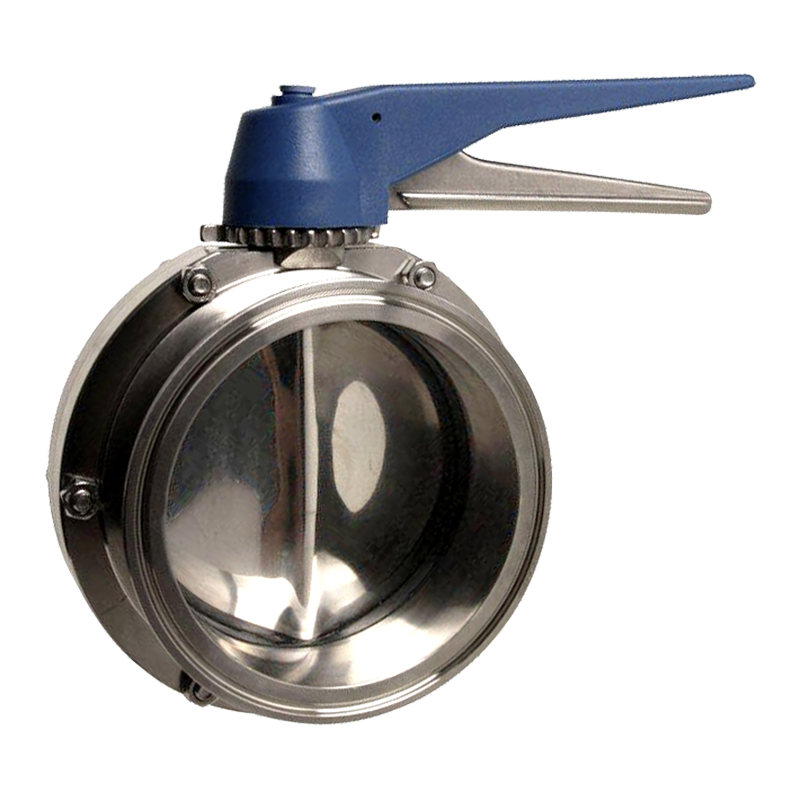

Tri Clamp Butterfly Valves are an elegant and dependable solution for either a shutoff service, or as a flow control valve to reduce volume. Designed for Tri Clamp fittings and made from stainless steel SS304, our Fractional Butterfly Valves feature a fiberglass handle with 12 locking positions, that allow granular flow control typically desired for racking.
The valves are rebuildable and can easily be disassembled and reassembled for cleaning and sanitizing.
DETAILS
WMD Equipment
Your Trusted Source for Food & Beverage Processing Equipment & Supplies
The valves are rebuildable and can easily be disassembled and reassembled for cleaning and sanitizing.
DETAILS
| 1.5" VALVE | 2.0" VALVE | 2.5" VALVE | 3.0" VALVE | |
| CONNECTION TYPE: |
Tri Clamp | Tri Clamp | Tri Clamp | Tri Clamp |
| CONNECTION SIZE: |
1.5 in | 2.0 in | 2.5 in | 3.0 in |
| DIMENSIONS Length: Width: Height: |
3.00 in (76.20 mm) 5.00 in (127.00 mm) 7.00 in (177.80 mm) |
3.00 in (76.20 mm)
5.75 in (146.059 mm) 8.00 in (203.20 mm) |
3.00 in (76.20 mm)
5.75 in (146.059 mm) 8.00 in (203.20 mm) |
3.25 in (82.55 mm)
7.00 in (177.80 mm) 9.00 in (228.60 mm) |
