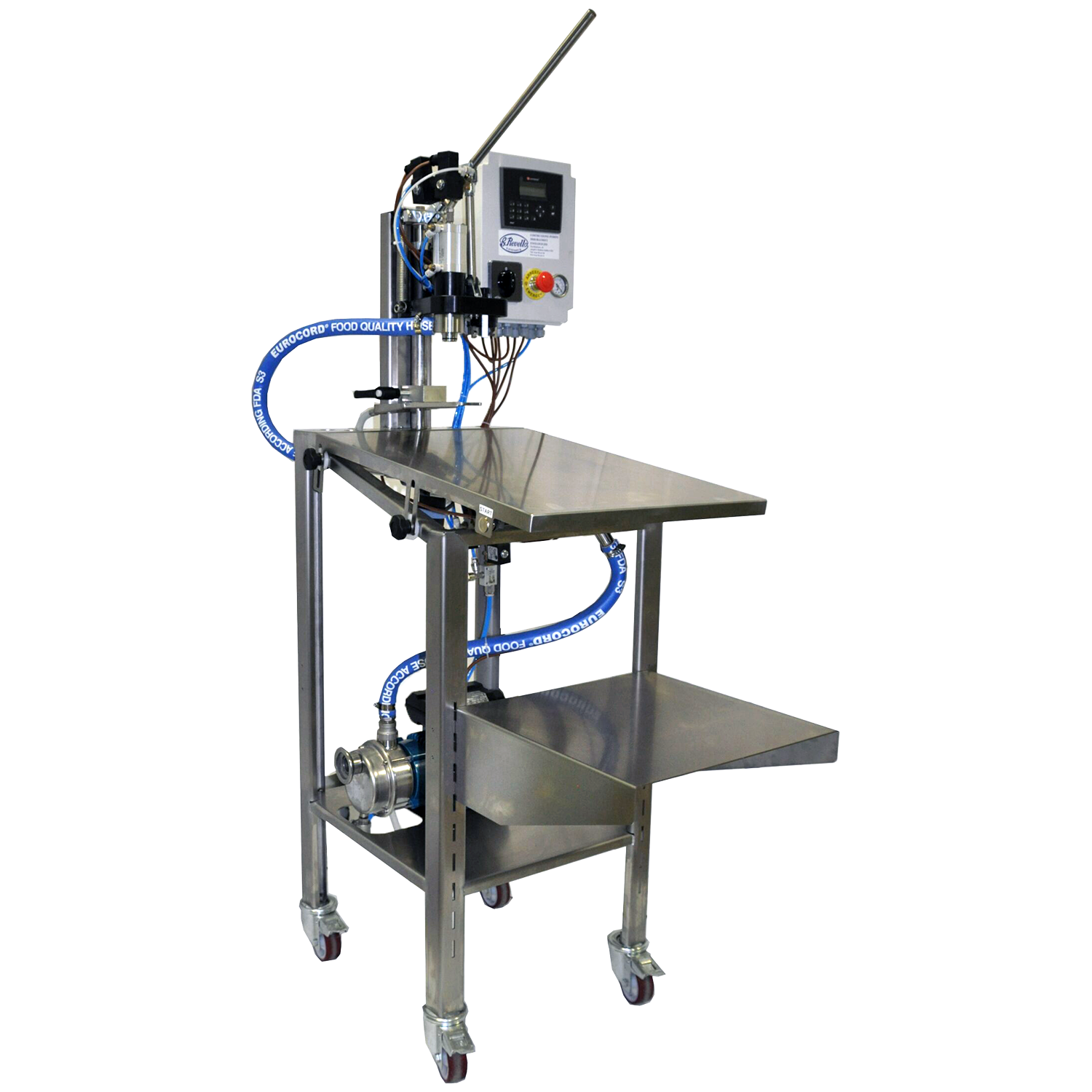

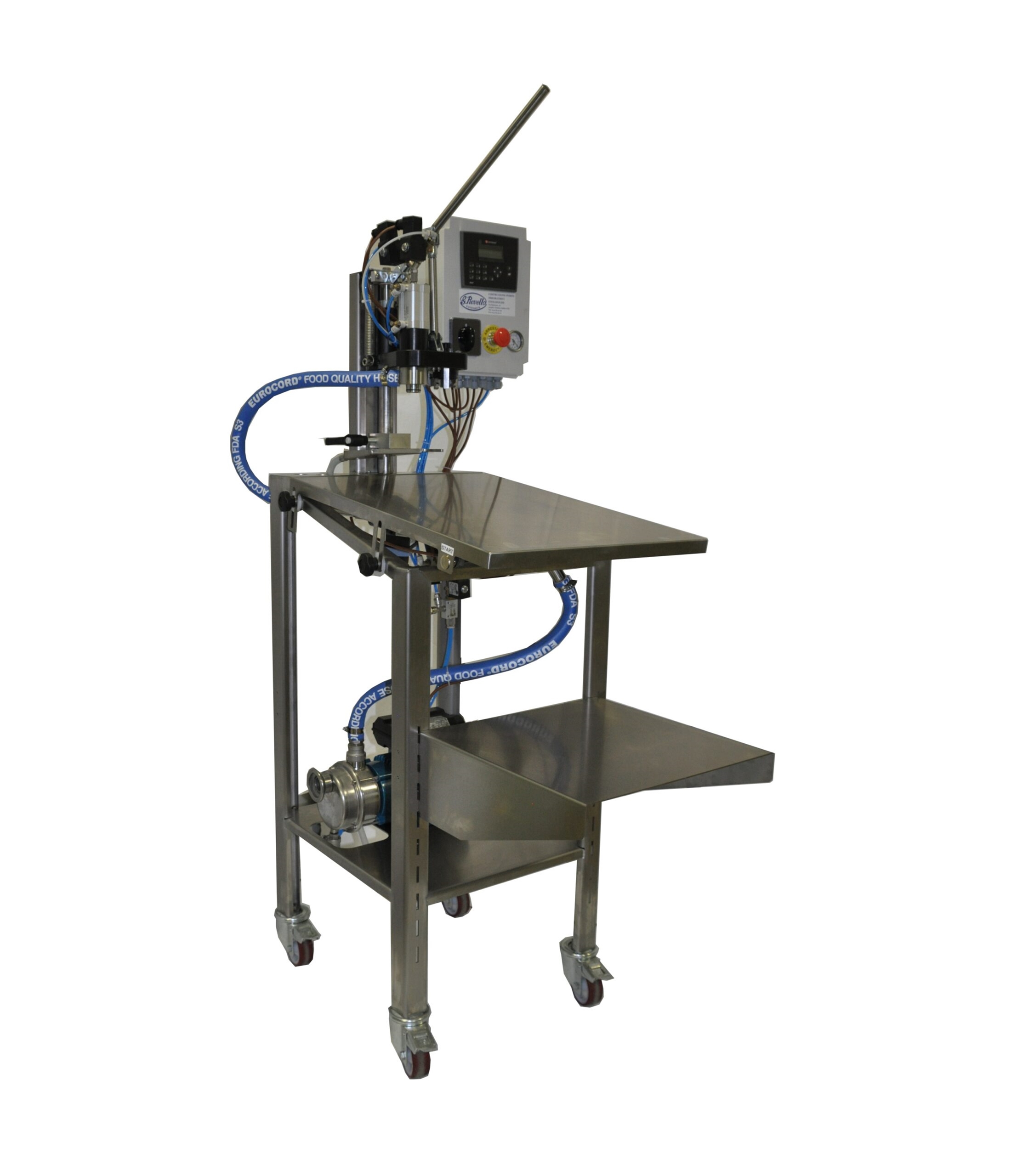

Bag in Box & Stand Up Pouch Filler - RB130

The Bag in Box Filler - RB130 Is a great solution for accurately filling wine, juice, olive oil, hot liquids, viscous products, and chemicals when outfitted correctly.  This Single Head unit comes equipped with an ergonomic arm for a manual start, uncapping, and capping system. It is designed to fill bags and standup pouches from 1.0L to 30L.  Can be outfitted to fill various liquids from wine or juice to solvents, chemicals or motor oil, and thicker products such as sauces, salsa, and salad dressing.  Can be outfitted to be compatible with most taps, valves, and caps on the market and is CE Certified.

Constructed with stainless steel and featuring an adjustable height incline plane table, box support, and locking wheels, it offers durability and mobility. This equipment comes equipped with a centrifugal or flexible impeller pump, electromagnetic flow meter, and a touch screen.

With its advanced and user-friendly software system, the Bag in Box Filler (BIB) - RB130 provides a range of extensive features. These include effortless fill volume adjustment, vacuum time and nitrogen/gas time adjustments, simple parameter customization, professional cleaning through the CIP system, an advanced purging mechanism, and a wide selection of accessories.

The operator will place the bag on the gripper claw and then extract the cap manually with the auxiliary arm. Next, the arm will move to the left in order to insert the nozzle over the neck of the bag. Once the start button is pressed, the Bag in Box Filler (BIB) - RB130 will automatically proceed to fill the bag up to the programmed capacity.

DETAILS

• Single Head Semi-Automatic Filling & Capping Unit for BIB or Standup Pouches
• Filling Capacity: 1.0L to 30L
• Can fill a wide range of liquid products: Wine, Juice or Olive Oil, Chemicals, Motor Oil, Etc.
• Can fill a wide rang of thicker products: Sauces, Salsa, Salad Dressing, Eggs, Creams, Lotions, Etc.
• Air Vacuum to remove oxygen from bag
• Nitrogen Injection to add Gas Preservative

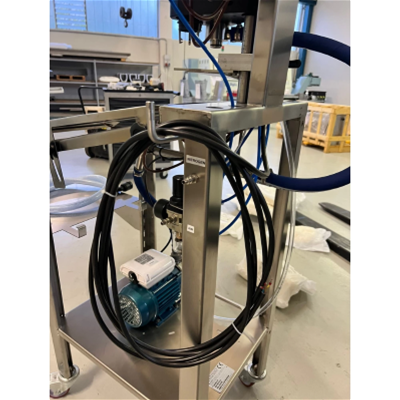

• Equipped with Centrifugal or Flexible Impeller Pump (based upon product to be filled)
• Electromagnetic Flowmeter
• Programmable PLC/Control Panel
• Pressure Indicator (on the front of the filler for easy viewing)
• Multi-Fitment Stainless Steel Four-Finger Gripper for ViTop standard (other spouts or caps optional)
• Automatic Air Piston for locking filling nozzle position during fill

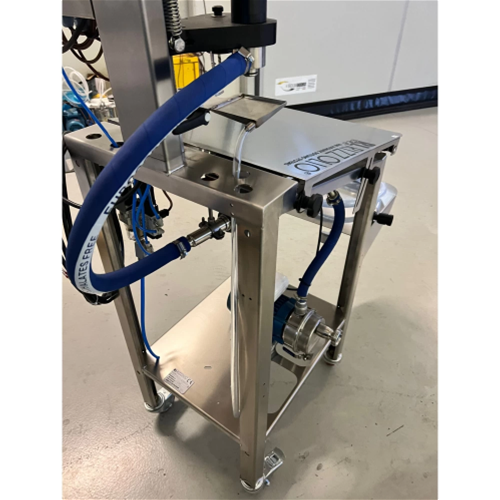

• Height adjustable Inclined Plane working surface
• Box Support with adjustable height positioning
• Product contact parts built of 316 Stainless, other steel components built of 304 Stainless
• Cart with Locking Wheels
• Stock centrifugal pump with stainless pump head and impeller (Flexible Impeller Pump Optional)
• Nozzle Sensor for Automatic Start of Filling (Included)
• Cold or Hot Fill to 50C (122F) *OR* 90C (194F) - See Dropdown Above
• Hot Fill above 90C (Special Order Only)
• 1.5" Clamp Connections
• Seals & O-Rings - Silicone, EPDM, FKM based upon application
• Table & Box Mount w/ Easy Sloped Operating Table
• 24x33x65 inches
• 110v 60hz - 7 to 10 amps depending on configuration
• Compressed air required 5bar and 2L/hour (compressor not included)
• Filling Capacity 40 to 60 liters per minute depending on pump installed and product being filled
• Cleaning CIP
• Approximate weight 280lbs - Depending on how outfitted
• CE Certified
• Manufactured in Italy

OPTIONS

• Can be outfitted for filling of Hot Products, Chemicals, Solvents, Viscous Liquids
• Product Specific Gaskets and O-Rings: FKM/Viton, EPDM, PTFE
• Cold Fill to 50C (122F)
• Hot fill to 90C (194F) - Above 90C (Special Order)
• Optional Nozzle & Claw/Pincers Sizes for different product fill and different bag/pouch spout sizes.
• More Viscous/Thick Products would include: Magnetic Flow Meter, Mencarelli G60 with EPDM, Inverter for Variable Speed Pump (if needed at additional cost)
