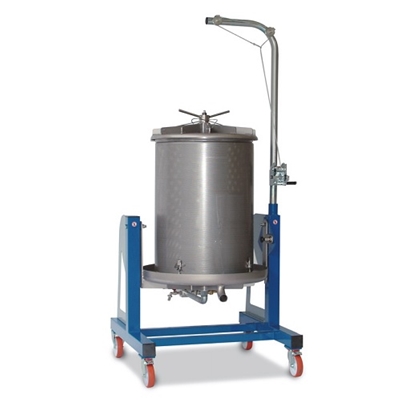

Zambelli Bladder Presses extract high quality yields of juice from fresh fruit due to the uniform distribution of pressure toward the outer cage as the bladder fills at a steady rate (which can be adjusted manually). Made entirely of AISI stainless steel (inlcuding the painted base and chassis), the Zambelli hydropress is simple to operate, cost effective and is an excellent way of producing high quality juice. Includes mechanical lift arm.
Crushed fruit is emptied in between the central rubber bladder and outer stainless steel wall of the press. The bladder is then inflated by means of mains water pressure (operating pressure is 3 bar) and the juice is squeezed out of the press and runs freely down the outside of the press wall into a collection tray at the bottom. The juice can then be pumped into a storage tank. Typical pressing time takes about 30 minutes.
DETAILS
- Vessel, Basket, Lid, & lift arm constructed entirely of AISI 304 Stainless Steel with an electropolished surface.
- Base and Chassis constructed entirely of AISI 304 Stainless Steel with a baked enamel finish.

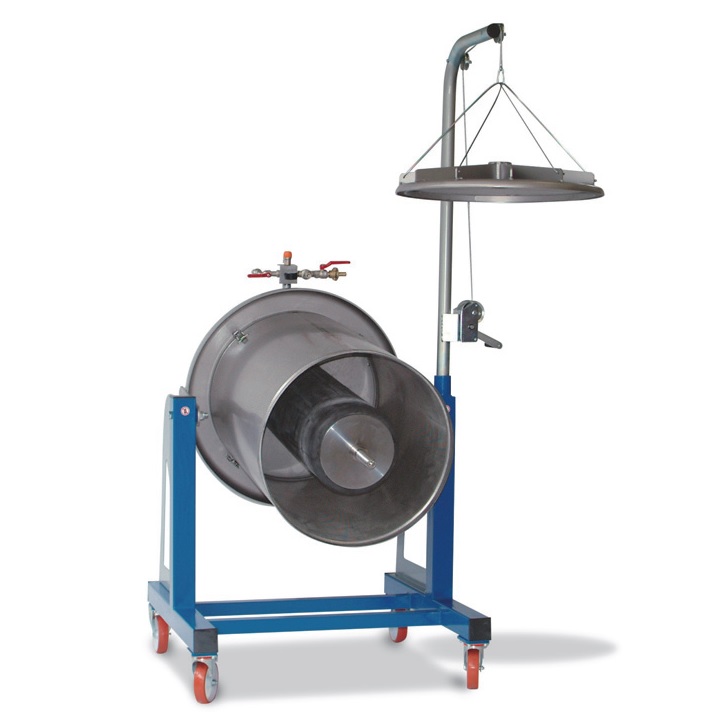

- Tilt Frame makes for easy emptying and transporting
- Heavy Duty Wheels with Brakes make the press quick to maneuver and secure.
- Included Filter Net removes small seeds and debris as well as makes for easier cleaning
- Convenient Pressure Regulator (1-3 Bar)
- Additional PVC Bag included for protection at Pressing and/or for covering Press while not in use
- Operating Instructions included
HYDRO 300 | HYDRO 450 | |
CAPACITY: | 80 gal (300 lt) | 120 gal (450 lt) |
DIMENSIONS Length Width: Height: | 42 in (1050 mm) 42 in (1050 mm) 65 in (1650 mm) | 50 in (1250 mm) 50 in (1250 mm) 71 in (1800 mm) |
WEIGHT: | 375 lb (170 kg) | 585 lb (265 kg) |
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly they may be received with very minor scratches not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in working order.
