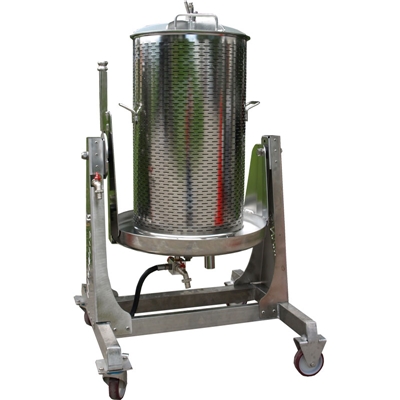

The Gomark VSPIX range of hydropresses are simple to operate, cost effective and are an excellent way of producing a high quality juice. The unique tilting cage design makes the VSPIX easy to unload and its high quality green press sack ensures a consistently clear juice, especially from apples. Constructed entirely from AISI 304 stainless steel, the VSPIX is also easy to clean and keep clean.

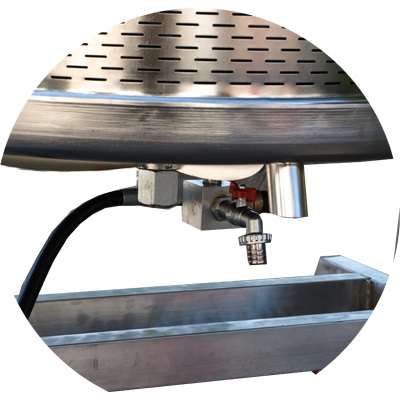

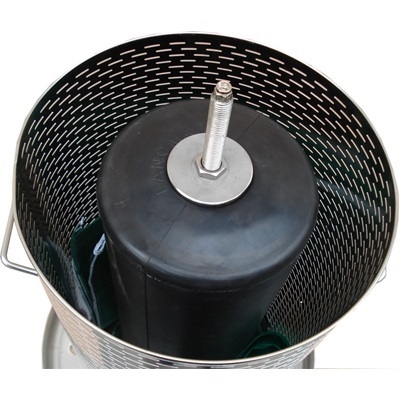

Using the VSPIX could not be easier. Milled fruit is emptied into a straining sack that is placed between a central rubber bladder and the outer stainless steel wall of the press. The bladder is then inflated by means of mains water pressure (operating pressure is 3 bar or just over 40 psi) and the juice is squeezed out of the press and runs freely down the outside of the press wall into a collection tray at the bottom. The juice can then be pumped into a storage tank. Typical pressing time takes about 30 minutes.
DETAILS

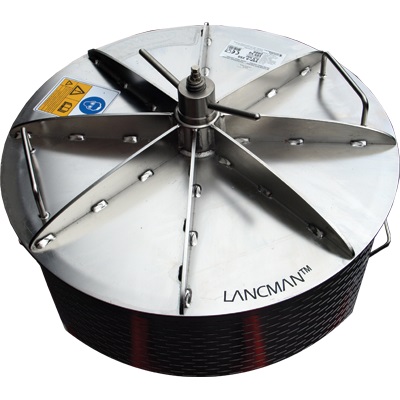

- Vessel, Basket, Lid, & Chassis constructed entirely of AISI 304 Stainless Steel with an Electropolished Surface.

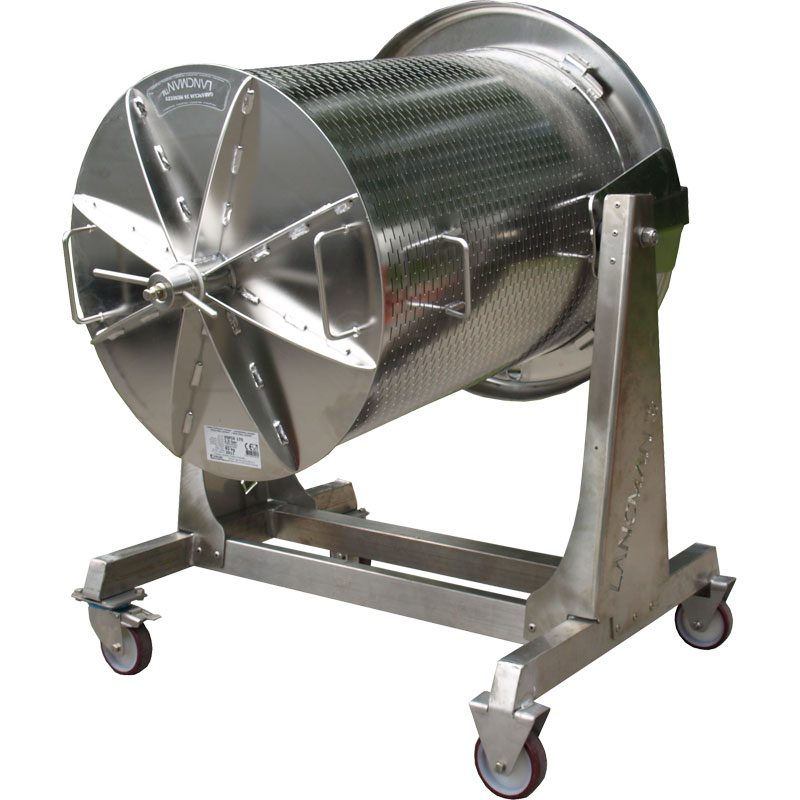

- Tilt Frame makes for easy emptying and transporting

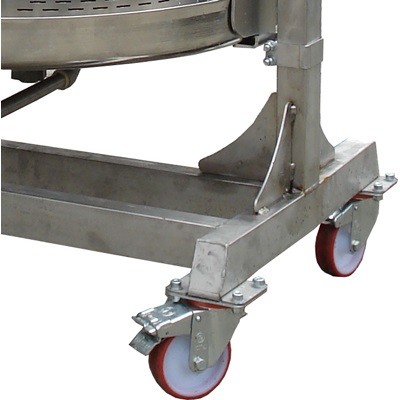

- Heavy Duty Wheels with Brakes make the Lancman quick to maneuver and secure.
- Included Filter Net/Mesh Bag removes small seeds and debris as well as makes for easier product removal
- Mesh bag typically used for pressing ground fruit such as apples and pears, but not typically required for grapes
- Press operates at 15 to 40 PSI, depending on product being pressed
- Convenient Pressure Regulator (1-4 Bar)(15-60psi)
- Additional PVC Bag included for protection at Pressing and/or for covering Press while not in use
- Water inlet is a 1/2-inch male barbed fitting that can be removed to attach water source to a 3/4-inch MPT
- Operating Instructions included
- Run on main water pressure (typical residential hose pressure)
- Manufactured by Gomark in Slovenia
- Click LINK FOR MANUAL
VSPIX-80 | VSPIX-120 | VSPIX-170 | VSPIX-250 | |
| CAPACITY: | 21 gal (80 lt) | 31.5 gal (120 lt) | 45 gal (170 lt) | 66 gal (250 lt) |
DIMENSIONS - OVERALL Length: Width: Height: | 28 in 30 in 43 in | 28 in 34 in 44 in | 28 in 36 in 47 in | 28 in 36 in 55 in |
Basket Dimensions: | 16 x 27.5 in | 18 x 27.5 in | 22 x 29 in | 22 x 38.75 in |
WEIGHT: | 141 lb (64 kg) | 167 lb (76 kg) | 183 lb (83 kg) | 235 lb (105 kg) |
| APPROX. FRUIT CAPACITY: | ||||
| Red Grapes - Fermented | 400 lbs | 600 lbs | 850 lbs | 1,250 lbs |
| White Grapes - Not Fermented | 300 lbs | 450 lbs | 635 lbs | 935 lbs |
| Ground Apples | 180 lbs | 265 lbs | 380 lbs | 565 lbs |
| Crated dimensions before pallet H x W x L (inches) | 32 x 32 x 45 | 32 x 35 x 45 | 32 x 37 x 48 | 32 x 37 x 57 |
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
