Simple, quick, and traditional cold oil extraction system for small and medium producers of high quality olive oil.

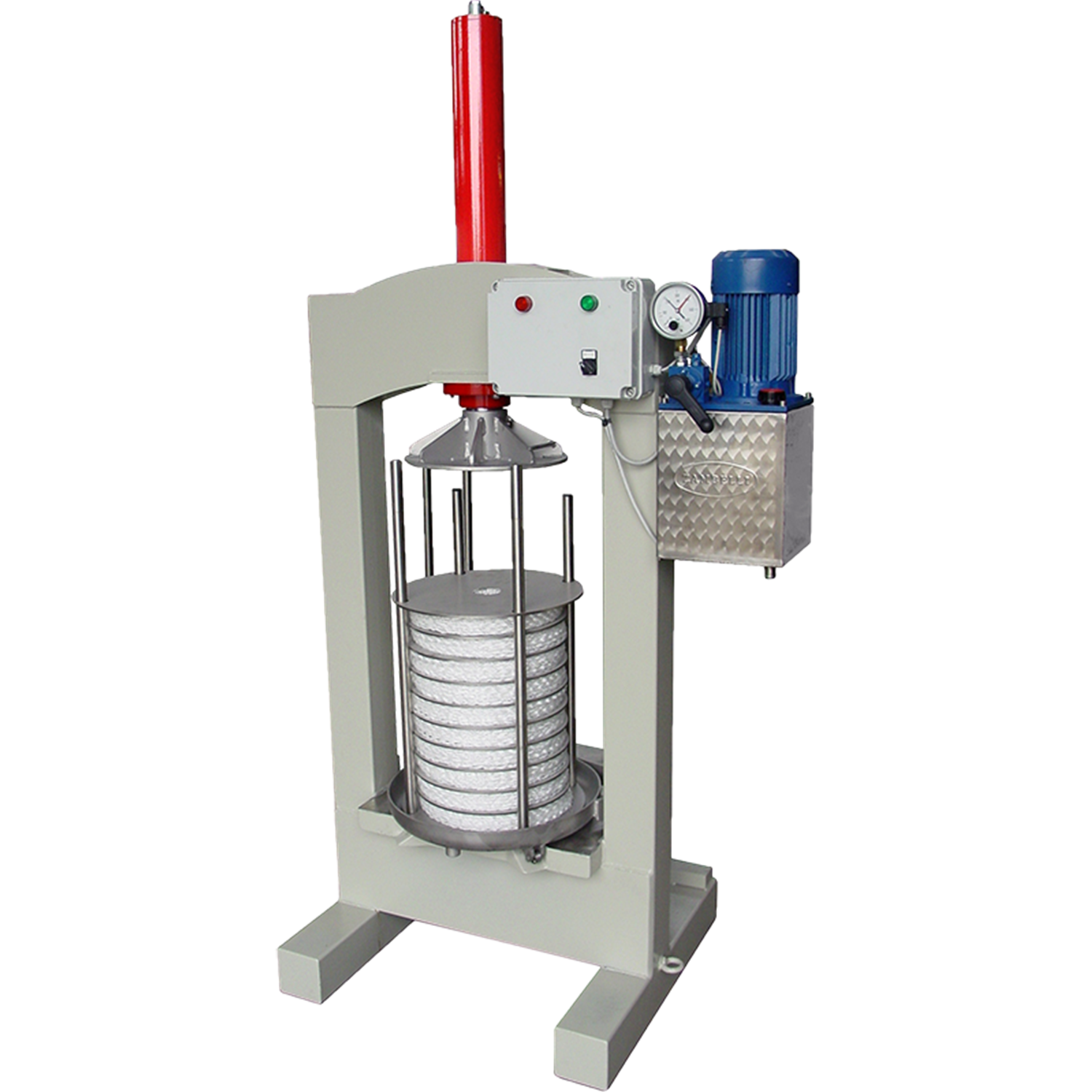

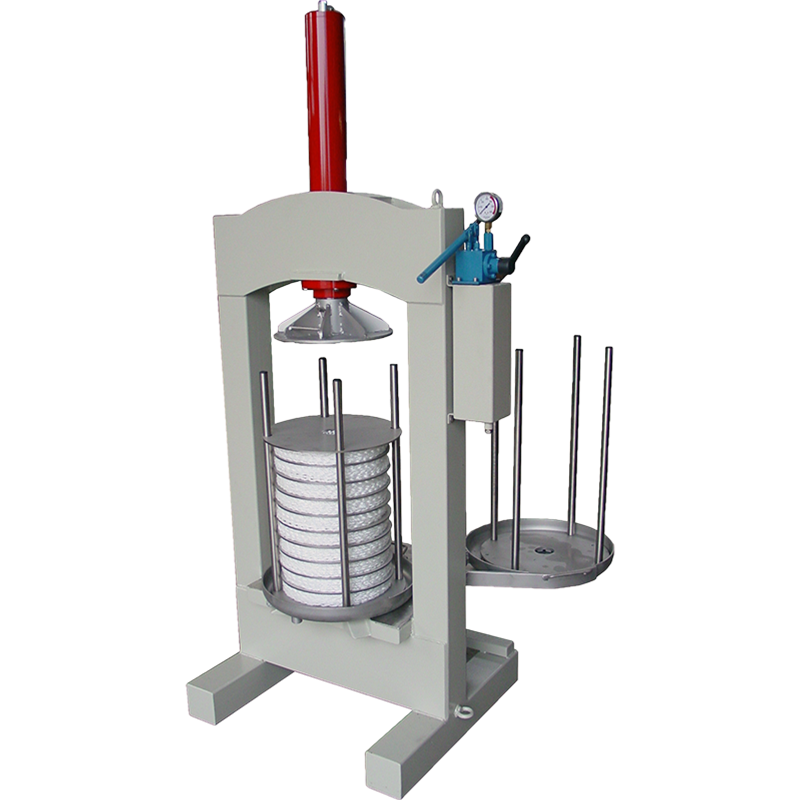

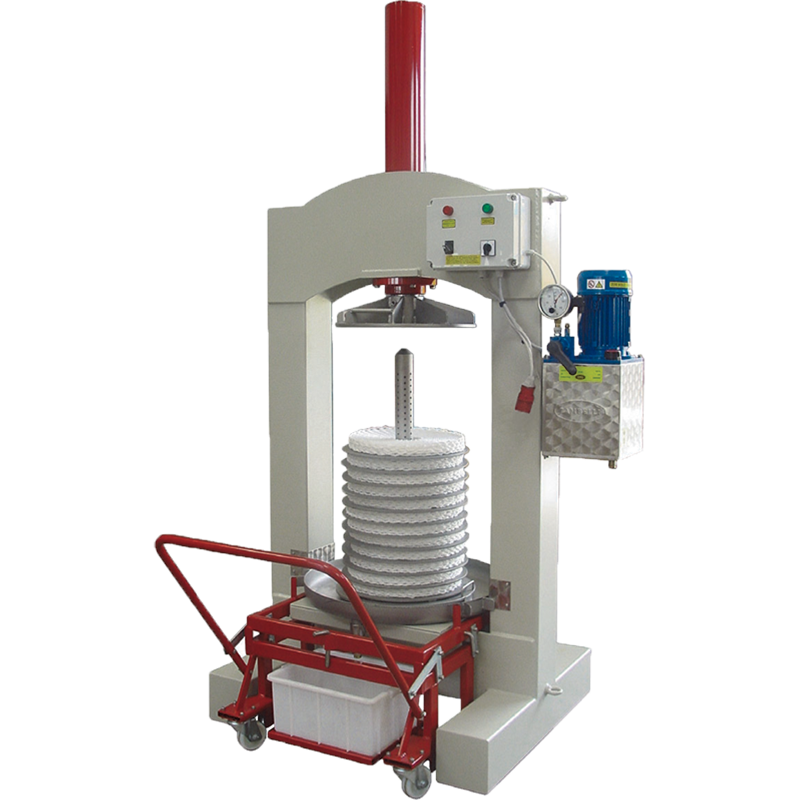

The Zambelli vertical press "ATON" for olive oil is composed of a painted steel frame with basin and pre-stainless steel plate. Supplied as standard with manual hydraulic pump, pressure gauge, a basket.
The Zambelli ATON 300 olive oil press comes with 50 fiscoli and 9 discs made of AISI 304 stainless steel.
The Zambelli OLEO MACH 2 consists of an olive crusher mill, a kneading tank and a dispenser to deposit olive paste onto the fiscoli, or nylon disc. Constructed entirely of AISI 304 stainless steel.
OPTIONS
- A second basket can be ordered for more continous production
- ATON 300 press available with a 1 Kw 3-phase motor
- Italian made by Zambelli
| OLEO MACH 1 | ATON 300 | |
| PRODUCTION: | 80-100 Kg/hr | 60-100 Kg/hr |
| PRESSURE: | 400 BAR | |
| MOTOR: Olive Crusher: Kneading Tank: |
2.2 KW .55 + .12 KW |
Manual Hydraulic |
| TOTAL DIMENSIONS Length: Width: Height: |
55 in (1400 mm)
33.5 in (850 mm)
65 in (1650 mm)
|
39 in (1000 mm)
30.7 in (780 mm)
90.5 in (2300 mm)
|
| WEIGHT: | 216 lb (98 kg) | 507 lbs (230 Kg) |
