Mohno Pumps (sometimes referred to as "Screw Pumps" or "Progressive Cavity Pumps") are excellent all-purpose pumps capable of transferring fluid, must or mash, and whole berries or grape clusters long distances.

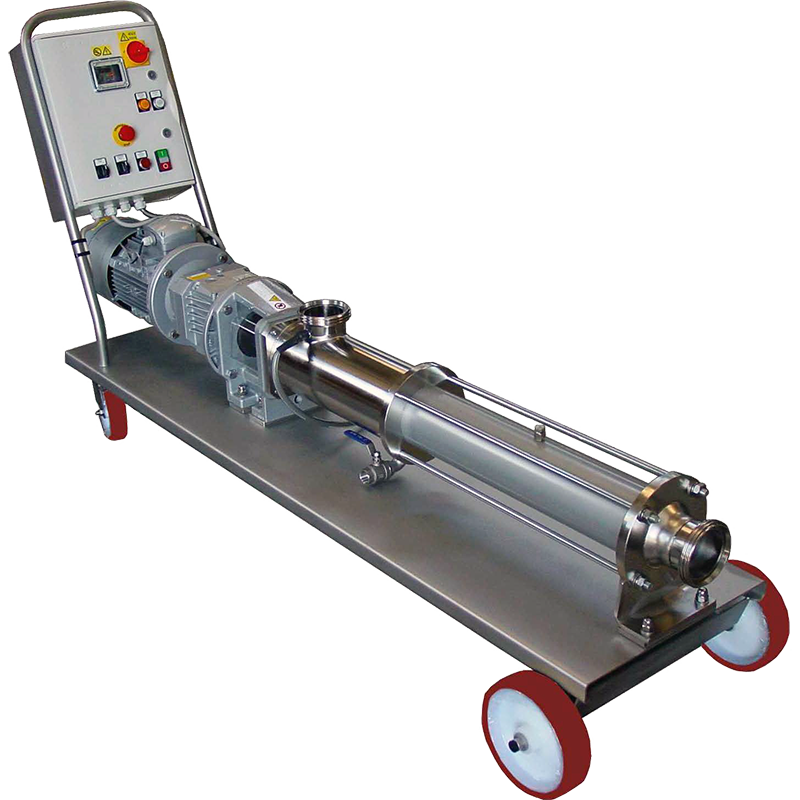

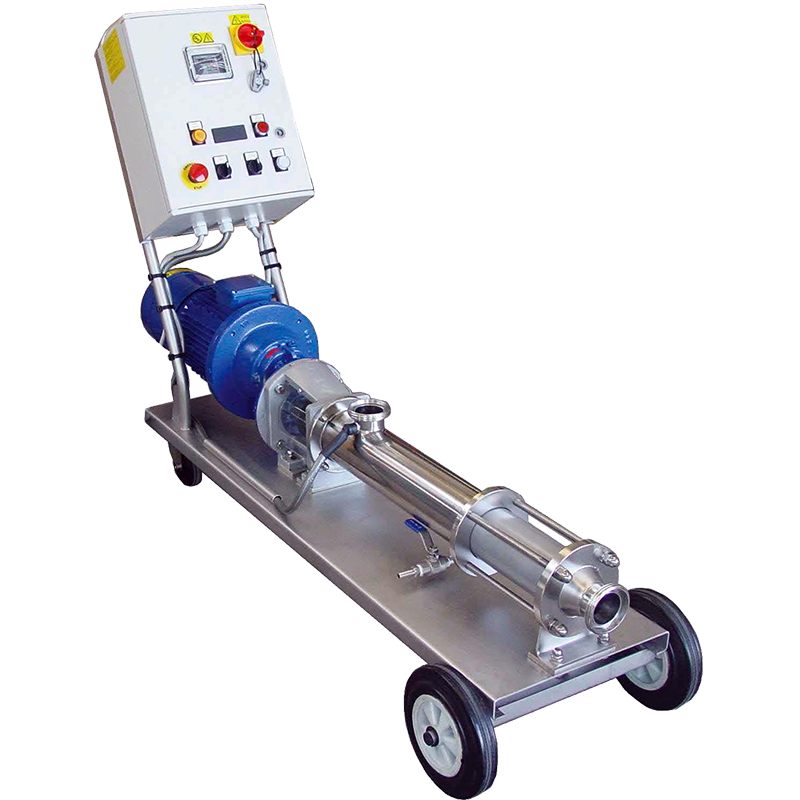

The Zambelli PMTI variable speed single-screw pump is made entirely of AISI 304 stainless steel. The helical rotor turns inside the stator and conveys the fluid through mobile compartments, which are created by the movement, without centrifugating the product; leaving it unspoiled.
DETAILS
The Zambelli PMTI variable speed single-screw pump is made entirely of AISI 304 stainless steel. The helical rotor turns inside the stator and conveys the fluid through mobile compartments, which are created by the movement, without centrifugating the product; leaving it unspoiled.
DETAILS
-
Equipped with on-board Variable Frequency Drive and flow control
-
Self-priming and can be dry run
-
6 Bar Maximum Pressure
-
Optional Bypass assembly
-
Optional EPDM Stator for transferring high alcohol and/or high heat contents
-
220v single-phase motor
-
Tri-Clamp Intake & Discharge Connections
-
AISI 304 Stainless Steel
-
Made in Italy
PMTI-70 | PMTI-120 | PMTI-200 | PMTI-300 | |
VOLUME Min: Max: |
0.7 gal/min (2.6 lt) 30 gal/min (115 lt) |
1.0 gal/min (3.7 lt) 53 gal/min (200 lt) |
1.6 gal/min (6.2 lt) 88 gal/min (335 lt) |
2.5 gal/min (9.3 lt) 132 gal/min (500 lt) |
PRESSURE: | 43-87 PSI (3-6 Bar) | 58-87 PSI (4-6 Bar) | 58-87 PSI (4-6 Bar) | 58-87 PSI (4-6 Bar) |
MOTOR: | 4.0 HP, 220v 1-Ph | 4.0 HP, 220v 1-Ph | 7.3 HP, 220v 1-Ph | 13.7 HP, 220v 1-Ph |
CONNECTION: | 2.5" Tri-Clamp | 3.0" Tri-Clamp | 3.0" Tri-Clamp | 4.0" Tri-Clamp |
DIMENSIONS Length: Width: Height: |
49 in (1250 mm) 16 in (400 mm) 32 in (800 mm) |
57 in (1450 mm) 16 in (400 mm) 32 in (800 mm) |
67 in (1700 mm) 18 in (450 mm) 36 in (900 mm) |
77 in (1950 mm) 20 in (500 mm) 38 in (950 mm) |
WEIGHT: | 180 lb (80 kg) | 220 lb (100 kg) | 330 lb (150 kg) | 470 lb (410 kg) |
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY!
We will call with actual shipping costs prior to shipping or charging your credit card.
