Mohno Pumps (sometimes referred to as "Screw Pumps" or "Progressive Cavity Pumps") are excellent all-purpose pumps capable of transferring fluid, must or mash, and whole berries or grape clusters long distances.

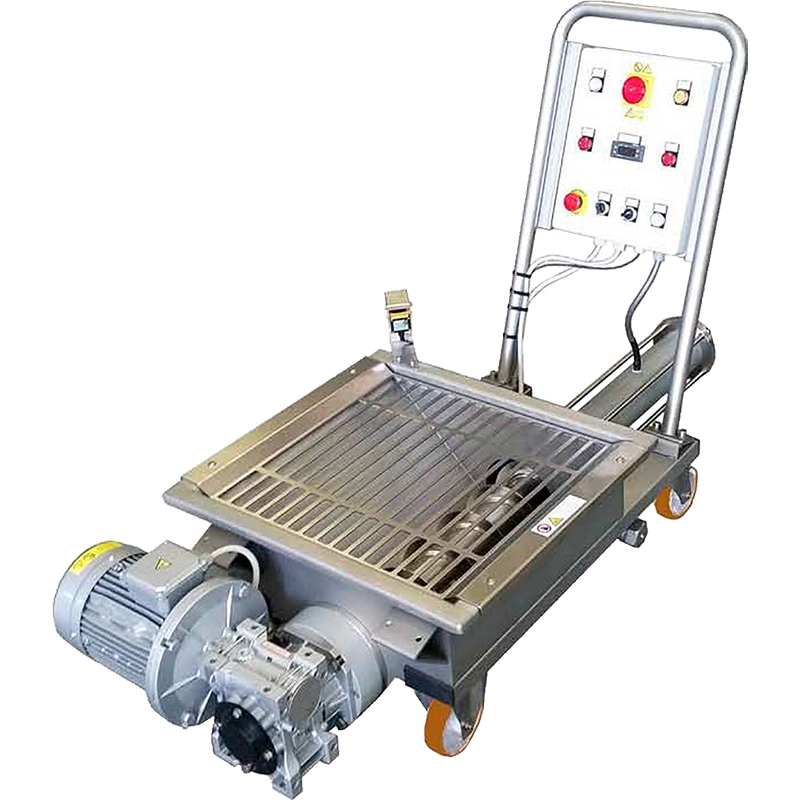

The Zambelli PM single-screw pump is made entirely of AISI 304 stainless steel. The loading hopper contains in in-feed auger that moves the fruit into the stator, where the a helical rotor in constant rotation conveys the material through mobile compartments, which are created by the movement, without centrifugating the product; leaving it unspoiled. The hopper is also outfitted with a level sensor which controls the pumps power supply to prevent it from dry-running.
DETAILS
The Zambelli PM single-screw pump is made entirely of AISI 304 stainless steel. The loading hopper contains in in-feed auger that moves the fruit into the stator, where the a helical rotor in constant rotation conveys the material through mobile compartments, which are created by the movement, without centrifugating the product; leaving it unspoiled. The hopper is also outfitted with a level sensor which controls the pumps power supply to prevent it from dry-running.
DETAILS
-
Equipped with loading hopper, in-feed auger, and dry-run sensor
-
Self-priming and can be dry run
-
6 Bar Maximum Pressure
-
Optional EPDM Stator for transferring high alcohol and/or high heat contents
-
240v three-phase motor
-
Optional variable speed 1-Phase motor
-
Tri-Clamp Intake & Discharge Connections
-
AISI 304 Stainless Steel
-
Made in Italy
| PM7 | PM12 | PM22 | PM30 | |
| VOLUME: |
7 Ton/hour | 12 Ton/hour | 22 Ton/hour | 30 Ton/hour |
| PRESSURE: | 43 PSI (3 Bar) | 43 PSI (3 Bar) | 43 PSI (3 Bar) | 43 PSI (3 Bar) |
| MOTOR: | 4.0 HP, 208v 3-Ph | 5.5 HP, 208v 3-Ph | 7.5 HP, 208v 3-Ph | 10 HP, 208v 3-Ph |
| CONNECTION: | 3.0" Tri-Clamp | 4.0" Tri-Clamp | 5.0" Tri-Clamp | 5.0" Tri-Clamp |
| HOPPER Length: Width: |
27 in (680 mm) 24 in (620 mm) |
35 in (890 mm) 29 in (730 mm) |
35 in (890 mm) 32 in (800 mm) |
37 in (930 mm) 33 in (830 mm) |
| DIMENSIONS Length: Width: Height: |
60 in (1530 mm) 34 in (860 mm) 30 in (750 mm) |
60 in (1530 mm) 34 in (860 mm) 30 in (750 mm) |
67 in (1690 mm) 38 in (960 mm) 32 in (800 mm) |
77 in (1950 mm) 39 in (990 mm) 38 in (950 mm) |
| WEIGHT: | 250 lb (115 kg) | 320 lb (145 kg) | 420 lb (190 kg) | 530 lb (240 kg) |
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY!
We will call with actual shipping costs prior to shipping or charging your credit card.
