Jacketed, Variable Capacity, Conical Bottom Tanks 1,000 to 2,150 Liter
click on thumbnail to zoom

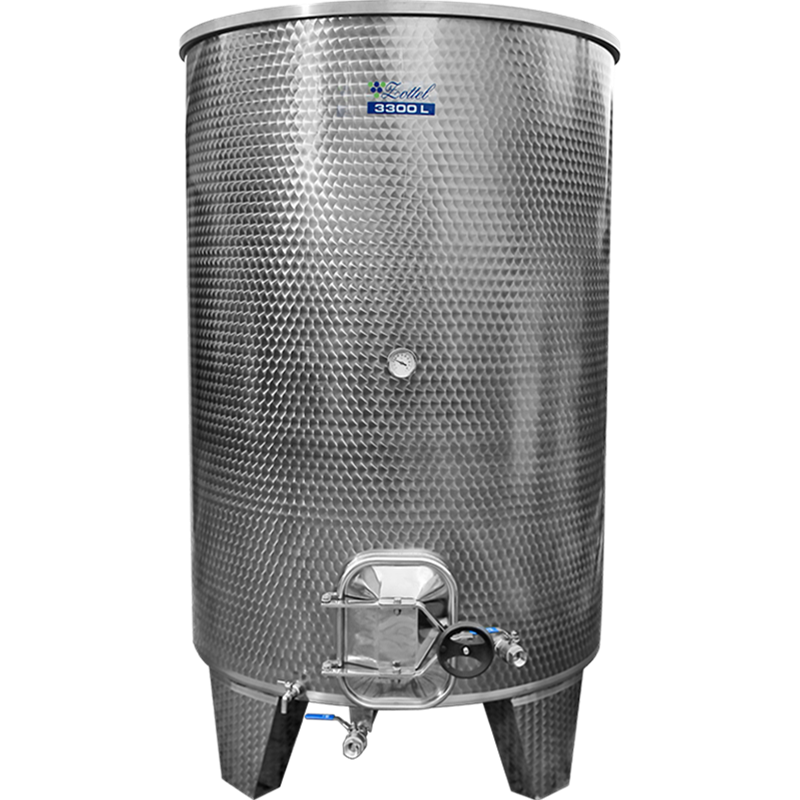

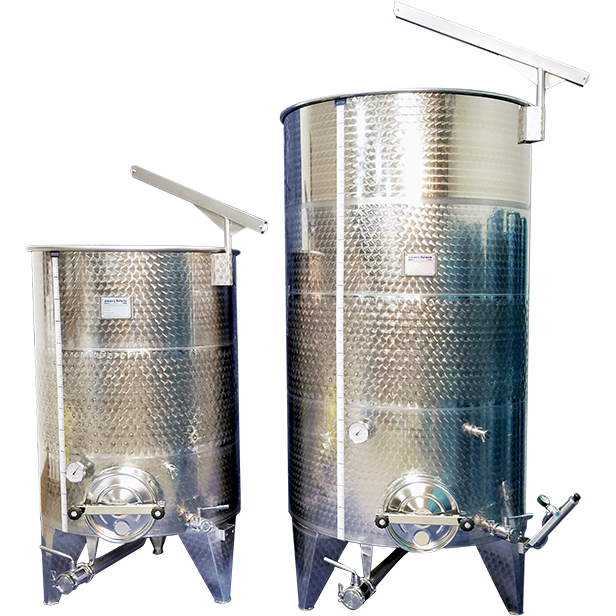

Variable Capacity Conical Bottom Tank

Price: make selection(s)
  • Item #VCT-C
- +
Our Professional European built Variable Capacity Conical Bottom Tanks (Non-Jacketed) built by either Marchisio Pro or Zottel are constructed entirely of AISI 304 Stainless Steel, are built to our specifications and come standard with the Following:

DETAILS
  • AISI 304 Stainless Steel construction
  • Conical Bottom*
  • Welded Legs
  • Reinforced Rim (1100L and larger)
  • Total Drain Port with Tri-Clamp Ball Valve
  • Partial "Racking" Drain Port with Tri-Clamp Ball Valve
  • Sample Tap
  • Sight Level Gauge (700L and larger)
  • Ladder Support (1000L and larger)
  • Lifting Rings for transport (1500L and larger)
  • Lift Arm for Lid (1000L and larger)
  • Winch for Lift Arm (3000L and larger)
  • Inflatable Seal & Pump with Gauge
  • Marble Airlock
  • THIS TANK IS NOT JACKETED
  • See below for complete specifications
  • Additional customization available upon request
We stock tanks up to 4000 Liters. Call for pricing and availability of tanks larger than 4000 Liters.

*See our new Dish/Round Bottom - Best of both Conical and Slope in same tank!

DETAILS:
MFR. CAPACITY VOLUME DIM.
(DIA. x HGT.)		 LEG
HEIGHT		 TOTAL
HEIGHT		 DRAIN
PORT (TC)		 RACKING
PORT (TC)		 SAMPLE
TAP		 MANWAY
DIMENSIONS		 LEVEL
GAUGE		 LADDER
RACK		 LIFT
RINGS		 LIFT
ARM 		 REINF.
RIM
Zottel 300 Liter 636x1000 mm 320 mm 1320 mm 1.5"
 1.5" YES N/A
Zottel 500 Liter 794x1000 mm 320 mm 1320 mm 1.5"
 1.5" YES N/A
Zottel 600 Liter 794x1250 mm 320 mm 1570 mm 1.5"
 1.5" YES N/A
Zottel 800 Liter 794x1500 mm 320 mm 1820 mm 1.5"
 1.5" YES N/A YES
Marchisio 1000 Liter 1000x1300 mm 400 mm 1700 mm 2.0" 1.5" YES 300 mm YES YES YES YES
Toscana 1000 Liter 930x1500 mm 400 mm 1900 mm 2.0" 1.5" YES 300 mm YES YES YES YES YES
Zottel 1100 Liter 953x1500 mm 320 mm 1820 mm 2.0" 1.5" YES 420x310 mm YES YES YES YES YES
Marchisio 1500 Liter 1000x2000 mm 400 mm 2400 mm 2.0" 1.5" YES 420x310 mm YES YES YES YES YES
Toscana 1500 Liter 1150x1500 mm 400 mm 1900 mm
 2.0" 1.5" YES 420x310 mm YES YES YES YES YES
Zottel 1500 Liter 1115x1500 mm 360 mm 1860 mm
 2.0" 1.5" YES 420x310 mm YES YES YES YES YES
Toscana 2000 Liter 1320x1500 mm 400 mm 1900 mm 2.0" 1.5" YES 420x310 mm YES YES YES YES YES
Zottel 2000 Liter 1275x1500 mm 360 mm 1860 mm 2.0" 1.5" YES 420x310 mm YES YES YES YES YES
Marchisio 2150 Liter 1190x2000 mm 400 mm 2400 mm 2.0" 1.5" YES 420x310 mm YES YES YES YES YES
Toscana 2400 Liter 1400x1500 mm 400 mm 1900 mm 2.0" 1.5" YES 420x310 mm YES YES YES YES YES
Zottel 2450 Liter 1430x1500 mm 360 mm 1860 mm 2.0" 1.5" YES 420x310 mm YES YES YES YES YES
Toscana 3000 Liter 1400x2000 mm 400 mm 2400 mm 2.0" 2.0" YES 530x420 mm YES YES YES YES YES
Marchisio 3200 Liter 1430x2000 mm 400 mm 2400 mm 2.0" 2.0" YES 420x530 mm YES YES YES YES YES
Zottel 3300 Liter 1430x2000 mm 360 mm 2360 mm 2.0" 2.0" YES 530x400 mm YES YES YES YES YES
Zottel 3850 Liter 1275x3000 mm 360 mm 3360 mm 2.0" 2.0" YES 530x400 mm YES YES YES YES YES
Marchisio 4000 Liter 1600x2000 mm 400 mm 2400 mm 2.0" 2.0" YES 420x530 mm YES YES YES YES YES
Toscana 4000 Liter 1600x2000 mm 400 mm 2400 mm 2.0" 2.0" YES 530x420 mm YES YES YES YES YES

We stock tanks up to 4000 Liters. Call for pricing and availability of tanks larger than 4000 Liters.

CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly they may be received with very minor scratches not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in working order.
