Our Professional European built Variable Capacity Round Bottom Tanks (Non-Jacketed) built by either Marchisio Pro or Zottel are constructed entirely of AISI 304 Stainless Steel. The Round Bottom tank is a fantastic innovation, a hybrid if you will, that has the benefits of both the Conical Bottom and Sloped Bottom tank. Due to this tank's popularity in Europe we started offering them here in the U.S. and our customers absolutely love them.
These new and innovative Round Bottom Tanks aka Dish Bottom are availble now up to 1500L. Larger than 1500L will be available in late 2021/early 2022.
These tanks are built to our specifications and come standard with the Following:
**OPTIONAL 1100L Zottel - "Stripped" Down Version without Manway, Lift Arm, Ladder Rack, Level Gauge or Lift Rings - (See Drop Down Above)
- Due to popular demand we keep this stripped down version of this particular 1100L sized tank in stock
DETAILS:
These new and innovative Round Bottom Tanks aka Dish Bottom are availble now up to 1500L. Larger than 1500L will be available in late 2021/early 2022.
These tanks are built to our specifications and come standard with the Following:
- AISI 304 Stainless Steel construction

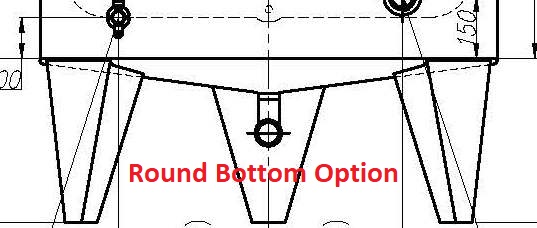

- Round Bottom aka Dish Bottom
- Welded Legs
- Reinforced Rim (1100L and larger)

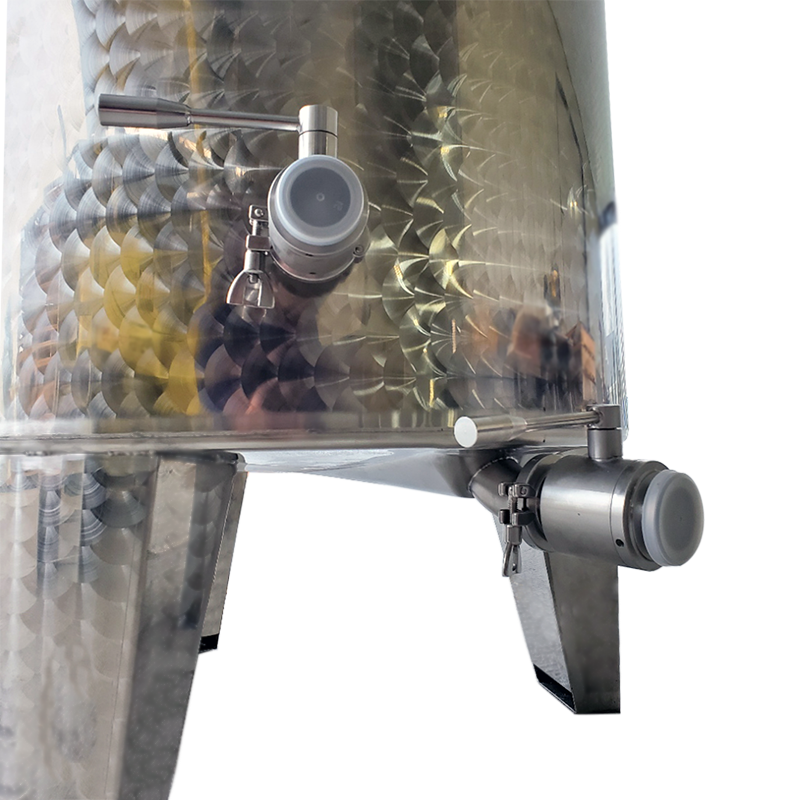

- Total Drain Port with Tri-Clamp Ball Valve
- Partial "Racking" Drain Port with Tri-Clamp Ball Valve
- Sample Tap
- Sight Level Gauge (700L and larger)
- Ladder Support (1000L and larger)
- Lifting Rings for transport (1500L and larger)
- Lift Arm for Lid (1000L and larger)
- Winch for Lift Arm (3000L and larger)
- Inflatable Seal & Pump with Gauge
- Marble Airlock
- THIS TANK IS NOT JACKETED
- Additional Customization available upon request
**OPTIONAL 1100L Zottel - "Stripped" Down Version without Manway, Lift Arm, Ladder Rack, Level Gauge or Lift Rings - (See Drop Down Above)
- Due to popular demand we keep this stripped down version of this particular 1100L sized tank in stock
DETAILS:
| MFR. | CAPACITY | VOLUME DIM. (DIA. x HGT.) |
LEG HEIGHT |
TOTAL HEIGHT |
DRAIN PORT (TC) |
RACKING PORT (TC) |
SAMPLE TAP |
MANWAY DIMENSIONS |
LEVEL GAUGE |
LADDER RACK |
LIFT RINGS |
LIFT ARM |
REINF. RIM |
| Zottel | 300 Liter | 636x1000 mm | 320 mm | 1320 mm | 1.5" |
1.5" | YES | N/A | |||||
| Zottel | 500 Liter | 794x1000 mm | 320 mm | 1320 mm | 1.5" |
1.5" | YES | N/A | |||||
| Marchisio | 600 Liter | 790x1300 mm | 400 mm | 1700 mm | 1.5" |
1.5" | YES | N/A | |||||
| Zottel | 600 Liter | 794x1250 mm | 320 mm | 1570 mm | 1.5" |
1.5" | YES | N/A | |||||
| Marchisio | 700 Liter | 790x1500 mm | 400 mm | 1900 mm | 1.5" | 1.5" | YES | N/A | |||||
| Zottel | 800 Liter | 794x1500 mm | 320 mm | 1820 mm | 1.5" |
1.5" | YES | N/A | YES | ||||
| Marchisio | 1000 Liter | 1000x1300 mm | 400 mm | 1700 mm | 2.0" | 1.5" | YES | 300 mm | YES | YES | YES | YES | |
| Zottel | 1100 Liter | 953x1500 mm | 320 mm | 1820 mm | 2.0" | 1.5" | YES | 420x310 mm | YES | YES | YES | YES | YES |
| Marchisio | 1500 Liter | 1000x2000 mm | 400 mm | 2400 mm | 2.0" | 1.5" | YES | 420x310 mm | YES | YES | YES | YES | YES |
| Zottel | 1500 Liter | 1115x1500 mm | 360 mm | 1860 mm |
2.0" | 1.5" | YES | 420x310 mm | YES | YES | YES | YES | YES |
| Marchisio | 1600 Liter | 1190x1500 mm | 400 mm | 1900 mm | 2.0" | 1.5" | YES | 420x310 mm | YES | YES | YES | YES | YES |
| Zottel | 2000 Liter | 1275x1500 mm | 360 mm | 1860 mm | 2.0" | 1.5" | YES | 420x310 mm | YES | YES | YES | YES | YES |
| Marchisio | 2150 Liter | 1190x2000 mm | 400 mm | 2400 mm | 2.0" | 1.5" | YES | 420x310 mm | YES | YES | YES | YES | YES |
| Zottel | 2450 Liter | 1430x1500 mm | 360 mm | 1860 mm | 2.0" | 1.5" | YES | 420x310 mm | YES | YES | YES | YES | YES |
| Marchisio | 3200 Liter | 1430x2000 mm | 400 mm | 2400 mm | 2.0" | 2.0" | YES | 420x310 mm | YES | YES | YES | YES | YES |
| Zottel | 3300 Liter | 1445x2000 mm | 360 mm | 2360 mm | 2.0" | 2.0" | YES | 530x400 mm | YES | YES | YES | YES | YES |
| Zottel | 3850 Liter | 1275x3000 mm | 360 mm | 3360 mm | 2.0" | 2.0" | YES | 530x400 mm | YES | YES | YES | YES | YES |
| Marchisio | 4000 Liter | 1600x2000 mm | 400 mm | 2400 mm | 2.0" | 2.0" | YES | 420x530 mm | YES | YES | YES | YES | YES |
WE STOCK SIZES UP TO 4000 LITER.
Tanks larger than 4000 Liter are built to order.
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly they may be received with very minor scratches not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in working order.
