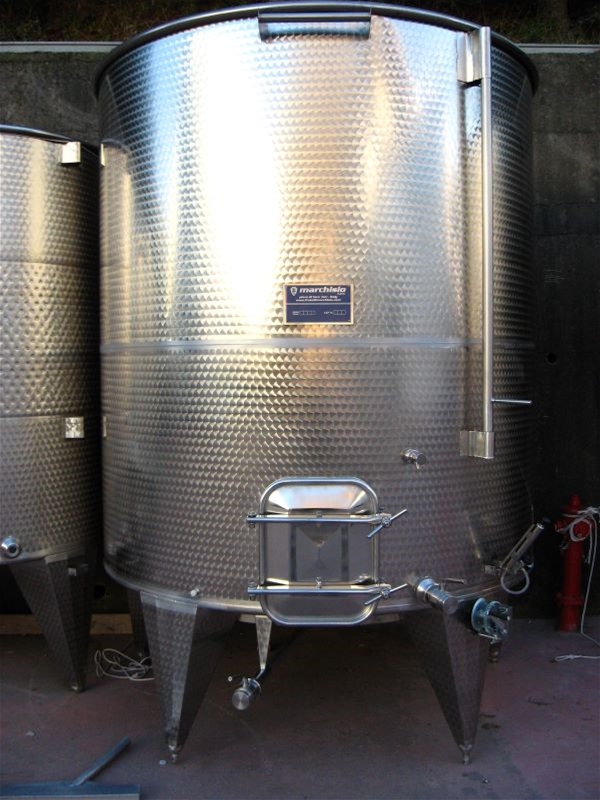

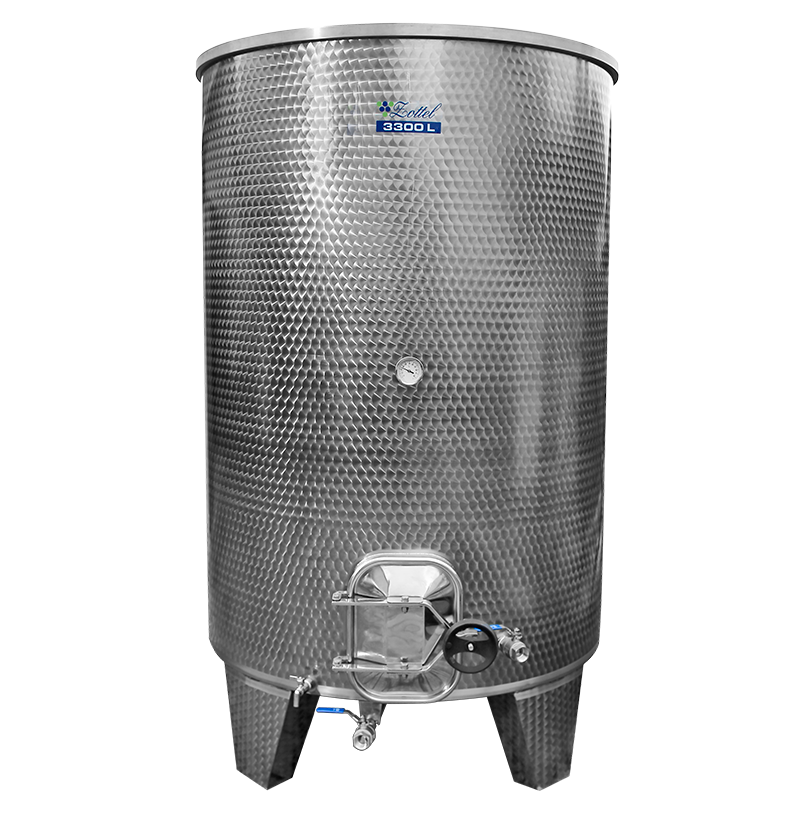

Our Professional European built Variable Capacity Sloped (Inclined) Bottom Non-Jacketed Tanks are constructed entirely of AISI 304 Stainless Steel, are built to our specifications and come standard with the Following:
*See our new Dish/Round Bottom Tanks - Best of both Conical and Slope in same tank!
DETAILS:
- 5% Sloped (Inclined) Bottom - Sloped bottom designed for ease of cleaning... Perfect for REDS, Cider, any beverage with a lot of solids that settle out
- AISI 304 Stainless Steel
- Welded Legs
- Reinforced Rim (1100L and larger)
- Total Drain Port with Tri-Clamp Ball Valve
- Partial "Racking" Drain Port with Tri-Clamp Ball Valve
- Sample Tap
- Manway Door (1000L and larger)
- Sight Level Gauge (700L and larger)
- Ladder Support (1000L and larger)
- Lifting Rings for transport (1500L and Larger)
- Lift Arm for Lid (1000L and larger)
- Winch for Lift Arm (3000L and larger)
- Inflatable Seal & Pump with Gauge
- Marble Airlock
- THIS TANK IS NOT JACKETED
- Additional customization available upon request
We stock tanks up to 4000 Liters. Call for pricing and availability of tanks larger than 4000 Liters.
*See our new Dish/Round Bottom Tanks - Best of both Conical and Slope in same tank!
DETAILS:
| MFR. | CAPACITY | VOLUME DIM. (DIA. x HGT.) |
LEG HEIGHT |
TOTAL HEIGHT |
DRAIN PORT (TC) |
RACKING PORT (TC) |
SAMPLE TAP |
MANWAY DIMENSIONS |
LEVEL GAUGE |
LADDER RACK |
LIFT RINGS |
LIFT ARM |
REINF. RIM |
| Marchisio | 1000 Liter | 1000x1300 mm | 400 mm | 1700 mm | 2.0" | 1.5" | YES | 300 mm (Round) | YES | YES | YES | ||
| Zottel | 1100 Liter | 953x1500 mm | 320 mm | 1820 mm | 2.0" | 1.5" | YES | 420x310 mm | YES | YES | YES |
YES | YES |
| Marchisio | 1500 Liter | 1000x2000 mm | 400 mm | 2400 mm | 2.0" | 1.5" | YES | 400 mm (Round) | YES | YES | YES | YES | YES |
| Zottel | 1500 Liter | 1115x1500 mm | 360 mm | 1860 mm |
2.0" | 1.5" | YES | 420x310 mm | YES | YES | YES | YES | YES |
| Zottel | 2000 Liter | 1275x1500 mm | 360 mm | 1860 mm | 2.0" | 1.5" | YES | 420x310 mm | YES | YES | YES | YES | YES |
| Marchisio | 2150 Liter | 1190x2000 mm | 400 mm | 2400 mm | 2.0" | 1.5" | YES | 420x310 mm | YES | YES | YES | YES | YES |
| Zottel | 2450 Liter | 1430x1500 mm | 360 mm | 2360 mm | 2.0" | 1.5" | YES | 420x310 mm | YES | YES | YES | YES | YES |
| Marchisio | 3200 Liter | 1430x2000 mm | 400 mm | 2400 mm | 2.0" | 2.0" | YES | 420x310 mm | YES | YES | YES | YES | YES |
| Zottel | 3300 Liter | 1430x2000 mm | 360 mm | 2360 mm | 2.0" | 2.0" | YES | 420x310 mm | YES | YES | YES | YES | YES |
| Zottel | 3850 Lite | 1275x3000 mm | 360 mm | 3360 mm | 2.0" | 2.0" | YES | 420x310 mm | YES | YES | YES | YES | YES |
| Marchisio | 4000 Liter | 1600x2000 mm | 400 mm | 2400 mm | 2.0" | 2.0" | YES | 420x530 mm | YES | YES | YES | YES | YES |
| Zottel | 4850 Liter | 1430x3000 mm | 360 mm | 3360 mm | 2.0" | 2.0" | YES | 420x310 mm | YES | YES | YES | YES | YES |
| Marchisio | 5000 Liter | 1600x2500 mm | 500 mm | 3000 mm | 2.0" | 2.0" | YES | 420x530 mm | YES | YES | YES | YES | YES |
| Marchisio | 6000 Liter | 1800x2250 mm | 500 mm | 2750 mm | 2.0" | 2.0" | YES | 420x530 mm | YES | YES | YES | YES | YES |
| Zottel | 6400 Liter | 1430x4000 mm | 360 mm | 4360 mm | 2.0" | 2.0" | YES | 420x310 mm | YES | YES | YES | YES | YES |
| Marchisio | 8000 Liter | 1800x3000 mm | 500 mm | 3500 mm | 3.0" | 2.0" | YES | 420x530 mm | YES | YES | YES | YES | YES |
| Zottel | 8000 Liter | 1600x4000 mm | 360 mm | 4360 mm | 3.0" | 2.0" | YES | 420x310 mm | YES | YES | YES | YES | YES |
WE STOCK SIZES UP TO 4000 LITERS.
Tanks larger than 4000 Liters are built to order.
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly they may be received with very minor scratches not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in working order.
