Semi-Automatic Linear Capper
This linear capping station is the ideal solution for customers who are looking for increased production speeds without upgrading to a full bottling or capping line.
This capping machine uses a conveyer belt to feed bottles through the capping station. Once the bottles arrive at the capping station, a descending capping head (often referred to as a "chuck") will install the caps, where they are then moved via conveyor belt. An optional collecting and feeding table can be purchased for both ends of the conveyer belt.
This capping station is suitable for bottles with Roll-On Pilfer Proof (ROPP), twist-off, snap on, or plastic screw-on caps.
These machines are CE Certified, and made in Italy.
Capping Details:
- Can cap up to 600 bottles per hour
- Constructed entirely of AISI 304 Stainless Steel
- Cap materials: metal, plastic, aluminum
- 110 Volt 60hz power required for controls
- Air Compressor Required 3-7 Bar
- Air Consumption Approx. 170Nl/Minute
- Handles bottle diameter up to 160mm (can be custom built for larger containers)
- Handles bottle height up to 350mm (can be custom built for larger containers)
Capping Applications:
- Twist Off - Metal
- Screw On - Plastic
- Press On
- ROPP / Pilfer Proof / Pilfer Evident
- Miniature bottles/jars as small as 1oz.
- Large bottle, jugs, jars up to 5 gallons.
- Metal caps
- Aluminum caps
- Plastic caps
- Pharmaceutical caps with dropper
- Caps that include brush
- FEA aluminum caps
- Dispenser caps
OPTIONS:

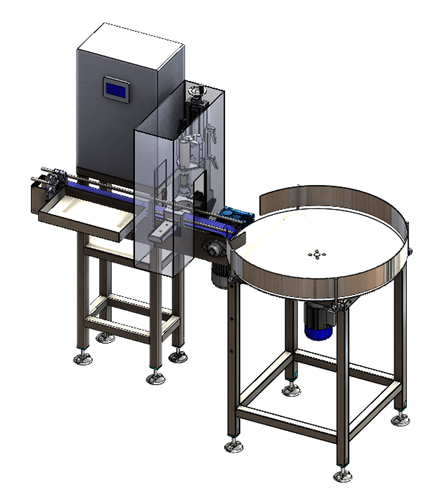

- Bottle Feeding & Collecting Tables
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card
CALL TO ORDER
WMD Equipment - Your Trusted Source for Semi-Automatic Capping Equipment
