Rotating Filler & Capper

Price: Contact Us
  • Item #R-FILLCAP
Semi-Automatic Rotating Filler & Capper
This air operated semi-automatic filling & capping station is the ideal solution for customers who are looking for increased production speeds but do not want to invest in a full bottling line. This is the perfect application for filling/capping hot sauces, salsas, creams, lotions, honey, detergents, and any other viscous, non-viscous, or liquid with solids products.

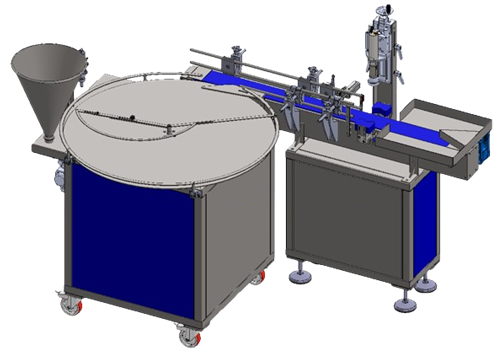

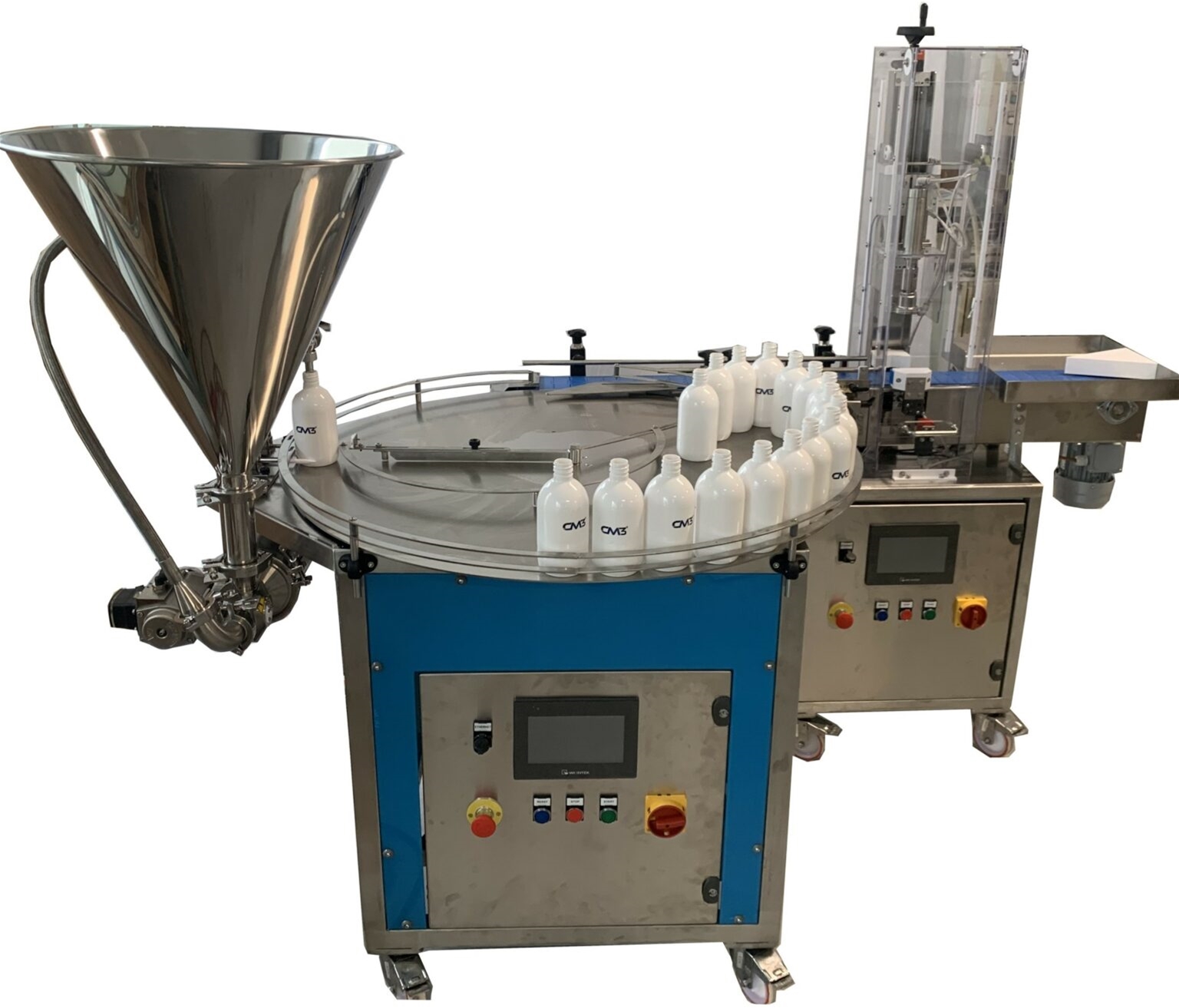

This solution includes a self-priming volumetric filler, which can include a product loading hopper (optional), as well as a rotating table that feeds empty bottles into an automated filling position. Once your bottles or containers are filled, they are transferred to a conveyer belt which feeds your bottles to a capping station. A descending capping head will install your caps on the bottles, where they will then be moved to a collection table at the end of the conveyer belt. This filling & capping station is suitable for bottles with twist-off, snap-on or plastic screw-on caps.

Our filling & capping station is a great solution for cosmetics, chemicals, viscous liquids, and of course food products. Depending on your product, we will outfit with the necessary gaskets, O-rings, and other components.

These machines are Certified for Food Production, CE Certified, and made in Italy.

Filling Details:
  • Fully Pneumatic Filler
  • Filling Volume from 2ml up to 2,000ml
  • Automatic (timed) or Manual Operation Modes (foot pedal)
  • Adjustable Fill Speeds & Volume
  • No Drip Nozzles - will be sized for your product and container
  • Hopper included - sized for your application (6L, 15L, 30L)
  • 1.5" Tri-Clamp In-feed Port
  • AISI 304 stainless steel frame
  • AISI 316 stainless steel nozzle, hopper, and piston
  • Viton/FKM Gaskets and O-Rings, or Silicone for your application.
  • Requires 60-90 PSI compressed air supply (we recommend 20-25 gallon air compressor)
  • Filling Accuracy within 1% within the target volume
  • Fills up to 600bph (dependent on operator, container, and product)
  • Engineered & constructed for:
    • Accuracy
    • Speed
    • Ease of Use
    • Reliability
    • Long Life Span
    • Fully breaks down for cleaning and sterilization in 5-10 minutes
Capping Details:
  • Can cap up to 600 bottles per hour
  • Constructed entirely of AISI 304 Stainless Steel
  • Cap materials: metal, plastic, aluminum
  • Cap styles:
  • Twist Off - Metal
  • Screw On Cap - Plastic
  • Dual purpose machine that will install both Metal "Twist Off" and Plastic "Screw on Caps"
  • 110 Volt 60hz power required for controls
  • Air Compressor Required 3-7 Bar
  • Air Consumption Approx. 170Nl/Minute
  • Handles bottle diameter up to 160mm (can be custom built for larger bottles)
  • Handles bottle height up to 350mm (can be custom built for larger bottles)
Capping Applications:
  • Miniature bottles/jars as small as 1oz.
  • Large bottle, jugs, jars up to 2,000ml
  • Metal caps
  • Aluminum caps
  • Plastic caps
  • Twist off caps
  • Screw on caps
  • Press on caps
  • Pharmaceutical caps with dropper
  • Caps that include brush
  • FEA aluminum caps
  • Dispenser caps
  • ROPP caps
OPTIONS:
  • Diving Nozzle for foamy products
  • Heated Hopper
  • Mixing Auger for Hopper
  • Piston Size: larger or smaller sizes available for different applications
  • Viton/FKM Gaskets and O-Rings, or Silicone for your application.
  • Optional nozzle sizes for different product and jar specifications
  • Aspiration Kit to pull your product from drum, bin, pale or other source instead of using a hopper
  • For products with abrasives such as cleansers, a chrome plated piston is required
