Spouted Pouch Filler & Capper (Semi-Automatic)
click on thumbnail to zoom

Spouted Pouch Filler & Capper (Semi-Automatic)

Price: Contact Us
  • Item #PFT-SA01
Other products by Tenco

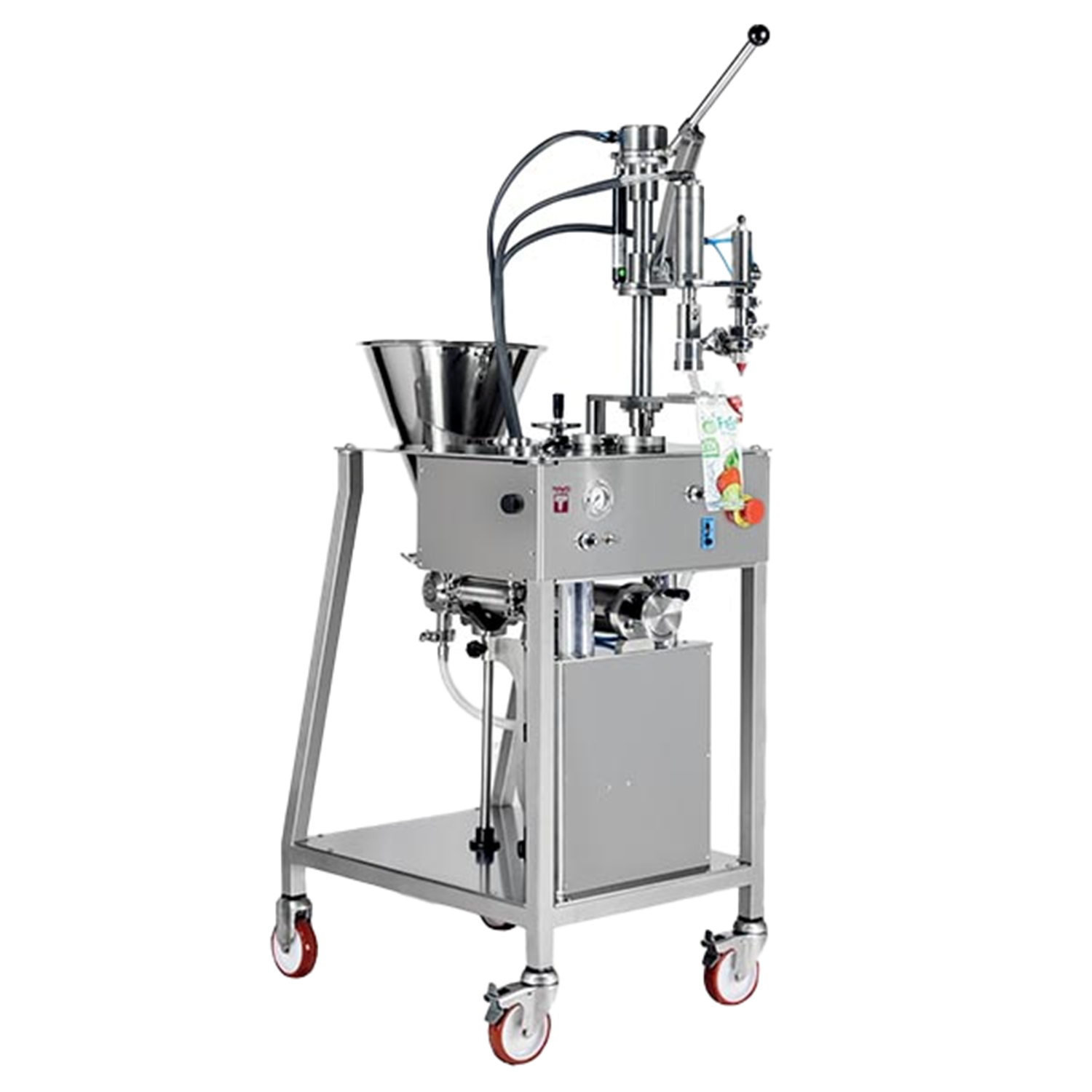

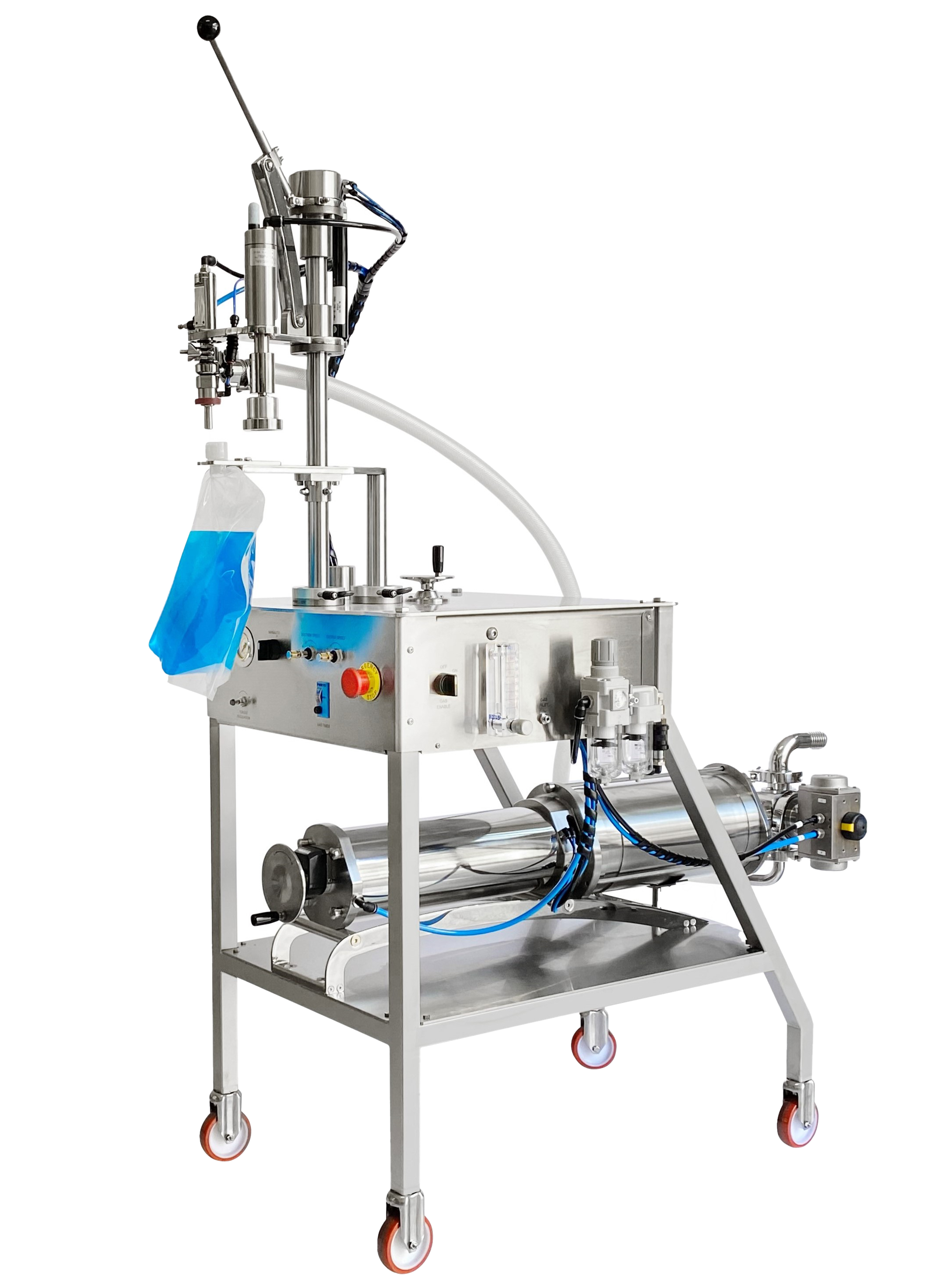

This Italian built Fully Pneumatic Spouted Pouch Filler aka Spouch Filler, is a semi-automatic filling AND capping solution for pre-spouted pouches. This air driven machine can fill both liquid and viscous products such as pumpable liquid, creams, pastes, sauces with pulp, or any other viscous or semi-viscous products. The Spouted Pouch Filler is an air driven machine that is suitable for filling AND capping a wide range of flexible pouches, so long as they have an existing spout installed. Product & material is filled by means of a volumetric piston filler with an adjustable dosing range. Caps are tightened by a pneumatic motor with torque regulation.

Pouch types include standup pouches, doypacks, and any other flexible standup pouches/packs with pre-installed spout.

This unit can fill viscous products that contain soft particulates or fibers and is suitable for heated fillings (up to 100° C).

*Note: Machine comes with a 30L Hopper, but can be connected directly to a storage tank (or IBC) with a flexible hose (or it can be equipped with either a 6L or a 15L Conical Hopper).

Product Demonstration(s):
Semi-Automatic Pouch Filler Video Walkthrough #1 - Click Here
Semi-Automatic Pouch Filler Video Walkthrough #2 - Click Here

Details:

  • Semi-Automatic Filling & Capping Machine
  • Can fill Pouch Sizes Up to 1.5L (subject sizes of pistons, valves and nozzles installed)
  • Pouch Style: Flexible Standup Pouches with pre-applied top or corner spouts

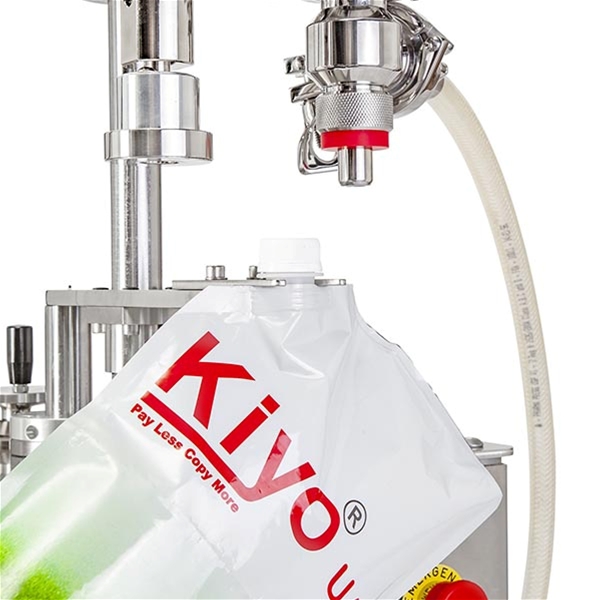

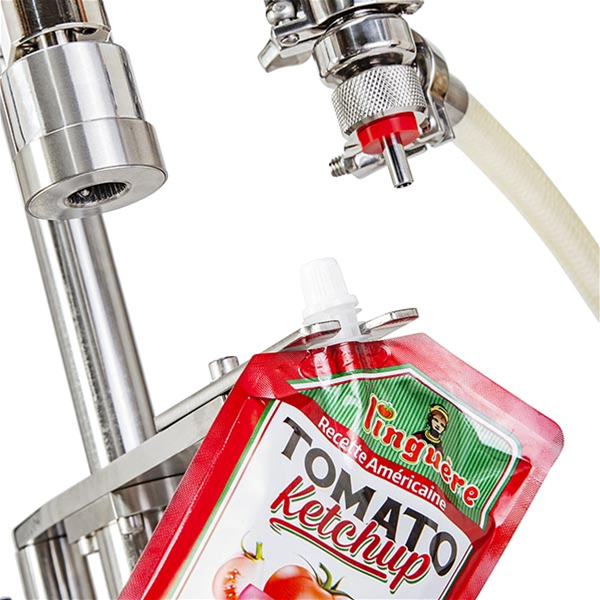

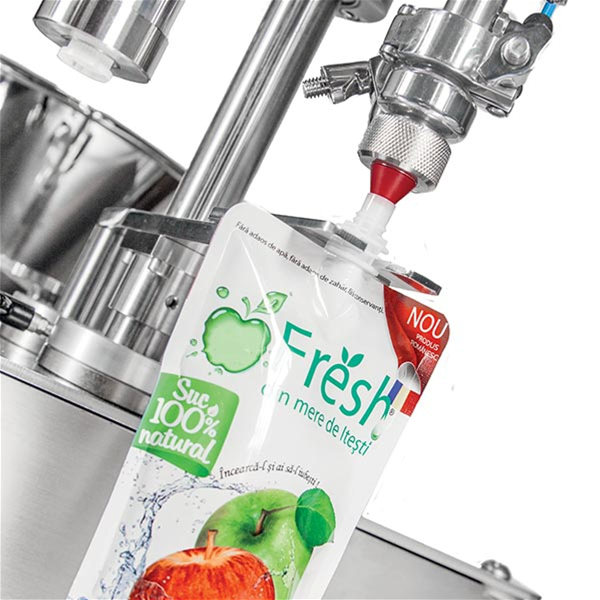

  • Filling THROUGH the Spout followed by Automated Cap Application from a single station/machine
  • Products: Semi-Viscous or Viscous products or other pumpable liquid (creams, pastes, liquid, cosmetics, etc.)
  • Output: (5-6 PPM) Based on 250 ml volume
  • Hot Fill Capabilities (Can fill Hot Products up to 100°C)
  • 100% 316 Stainless Steel
  • Piston 316 stainless with 2x O-Rings and Guide - No nuts, bolts or washers at top of piston to corrode or contaminate
  • Stock with Silicone Gaskets and O-Rings, Viton/FKM or EPDM upon request
  • Automatic (Timed) or Manual (Foot Pedal) Operation Modes
  • Pneumatic Air Driven Machine (required air compressor of 2-6 Bars) - Fully Pneumatic
    • No electronics to short out during production or cleaning
    • Explosion proof for combustible products
  • Engineered & Constructed for:
    • Accuracy
    • Speed
    • Ease of Use
    • Reliability
    • Long Life Span
    • Fully breaks down for cleaning and sterilization in 5-10 minutes
  • Air Consumption is approximately 8 cubic feet / min (250 nL/min)

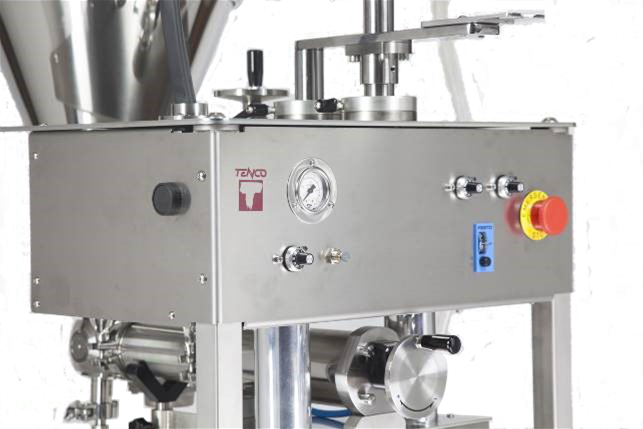

  • Adjustable Hand Wheel Regulator
  • Adjustable Fill Speed & Volume
  • Filling Accuracy within +/- 1% within the target value
  • Certified for production of Food, Cosmetics or Pharma (topical)
  • CE Certified
  • Manufactured by Tenco in Italy

Included:

  • (1) Filling Nozzle
  • (1) Capping Chuck
  • 30L SS Conical Hopper

Optional Upgrades:

  • Hose to Aspire & Transfer Products from Source/Container
  • Heated Hopper (for thicker products)
  • Mixing Auger for Hopper
  • Additional Filling Spout Style
  • Additional Fork Support for 2nd Filling Spout or Different Spout Style
  • Additional Chuck for 2nd Cap Style
  • Nitrogen Injection for Extended Food Preservation
  • Optional FKM/Viton or EPDM Gaskets and O-Rings

CONTACT US FOR PRICING
