The Doselite Fully Pneumatic Volumetric Piston Filler sometimes referred to as a "dosing machine" by Tenco allows you to fill precise volumes of liquids, oils, gels, creams, sauces, and many other products, including products with particulates/solids, regardless of the size or shape of container with precision accuracy. Paired with an industry leading No-Drip Nozzle, this machine will increase production while also reducing product waste.
A hand-wheel is used to determine the product volume, while a numeric indicator shows the fill volume. Through the vacuum created by the piston movement, the product is drawn into the volumetric chamber. The operator presses the foot switch for starting the cycle; the piston pushes the product on the outside through the output valve and the filling nozzle at set intervals (in automatic mode) or with each press of the foot switch (in manual mode).
A hand-wheel is used to determine the product volume, while a numeric indicator shows the fill volume. Through the vacuum created by the piston movement, the product is drawn into the volumetric chamber. The operator presses the foot switch for starting the cycle; the piston pushes the product on the outside through the output valve and the filling nozzle at set intervals (in automatic mode) or with each press of the foot switch (in manual mode).
This machine is suited with No Drip Nozzles. This innovative design & engineering eliminates spillage and waste of expensive and valuable products. Additionally, piston size can be upgraded to a larger or smaller size to accommodate for larger/smaller applications.
This particular 260ml Volumetric Piston Filler is extremely well suited for the cosmetics industry due to its size for precision filling of liquids, oils, creams and gels including fragrances, lotions, essential oils, propylene glycol (e-liquid), colorants, inks, and even solvent based liquids, with and without solids, or for samples for viscous food products with and without solids.
CLICK HERE to watch the Doselite fill multiple types of products ranging from salsa to face cream
CLICK HERE to watch the Doselite fill a 10 ml bottles of essential oils
CLICK HERE to watch the Doselite fill an 8 oz bottle of soap
CLICK HERE to watch the Doselite fill a 10 ml bottles of essential oils
CLICK HERE to watch the Doselite fill an 8 oz bottle of soap
DETAILS
- Fully Pneumatic
- Explosion Proof for combustible products
- No electronics to short out during operation or cleaning
- Fills bottles and jars ranging from 5ml to 260ml (0.17 to 8.8 ounces)
- Automatic (timed) or Manual operation modes (foot pedal)
- Adjustable Fill Speeds & Volume
- Benchtop Frame
- No Drip Nozzles - Will be sized for your product and container
- 1.5" Tri-Clamp In-feed Port
- 100% AISI 316 stainless steel construction
- Piston 316 stainless with 2x O-Rings and guide - No nuts, bolts or washers at the top of the piston to corrode or contaminate
- Stock with Viton/FKM Gaskets and O-Rings, Silicone Upon Request
- Engineered and Constructed for:
- Accuracy
- Speed
- Ease of Use
- Reliability
- Long Life Span
- Fully breaks down for cleaning and sterilization in 5-10 minutes
- Fills up to 500bph at 250ml doses (dependent on operator, container, and product)
- Certified for food production
- CE Certified
- Requires 60-90 PSI compressed air supply (we recommend 20-25 gallon air compressor)
- Filling Accuracy within 1% within the target volume
- Made in Italy

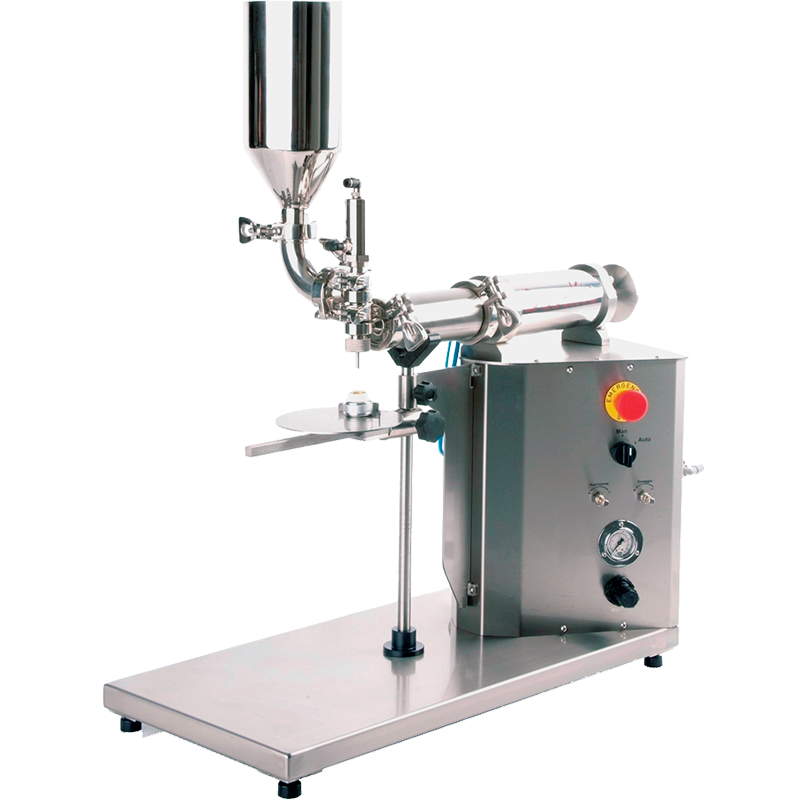

Viscous, Liquids, Liquid with Solids - Single L-Valve "Combo" Configuration:
This economy "Combo" configuration is designed to accurately fill products with any viscosity, with or without solids. This particular configuration is better suited for, but not exclusive to, small fills of lower viscosity products with higher surface tension (perfumes, chemicals, oils, lotions, shampoo, liquid soaps) or larger fills of thicker/more viscous products or liquids with solids (syrups, honey, creams, spreads, sauces, salsa, dressings, jams and fillings).
- Equipped with single Rotary L-Valve
- Aspirates directly from source container/vessel
- Optional Hopper - Not Included
- We will outfit your piston filler with the proper nozzle, seals, and O-rings for your product and container

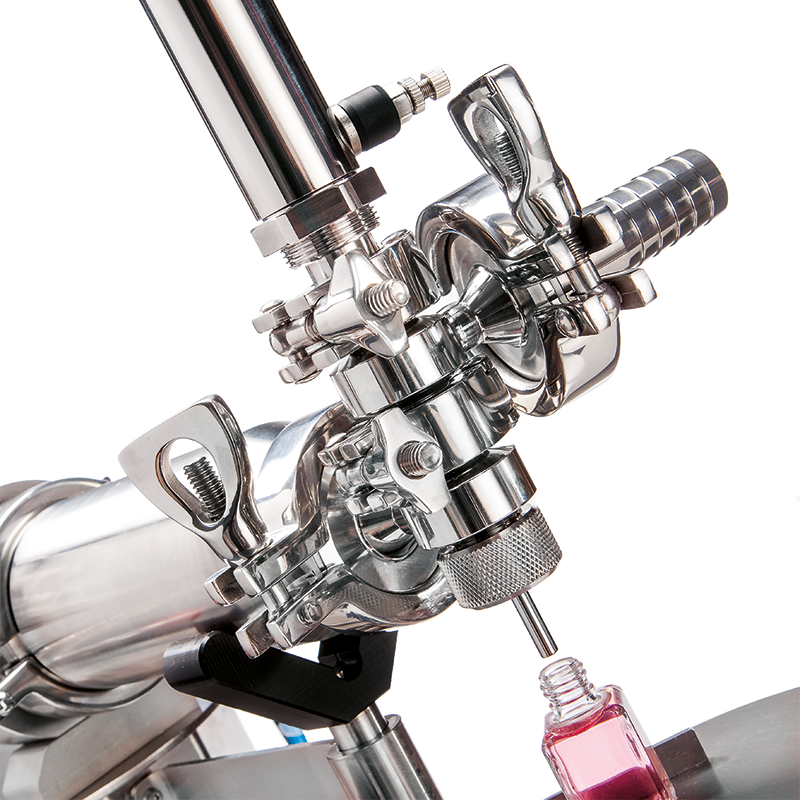

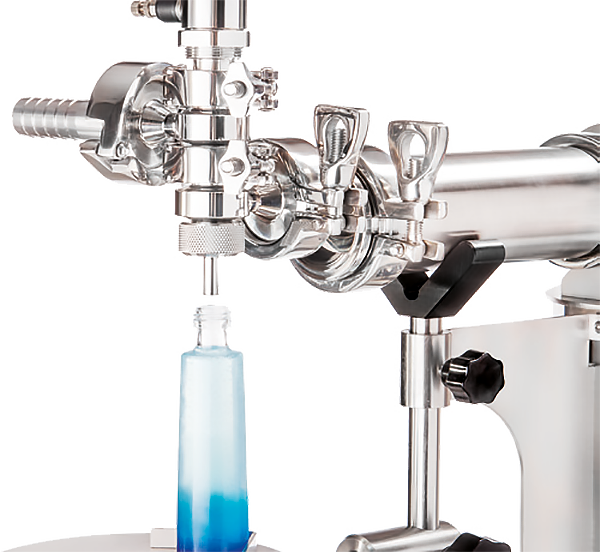

Liquid or Low Viscosity Products - Single Vertical Valve Configuration:
This configuration is specifically designed to accurately fill liquids and products with a lower viscosity that does not contain solids such as perfume, chemicals, olive oil, essential oils, tinctures, most beverages, and many similar products
- Equipped with 3-Way Vertical Valve
- Aspirates directly from source container/vessel
- Optional Hopper - Not included
- We will outfit your piston filler with the proper nozzle, seals, and O-rings for your product and container

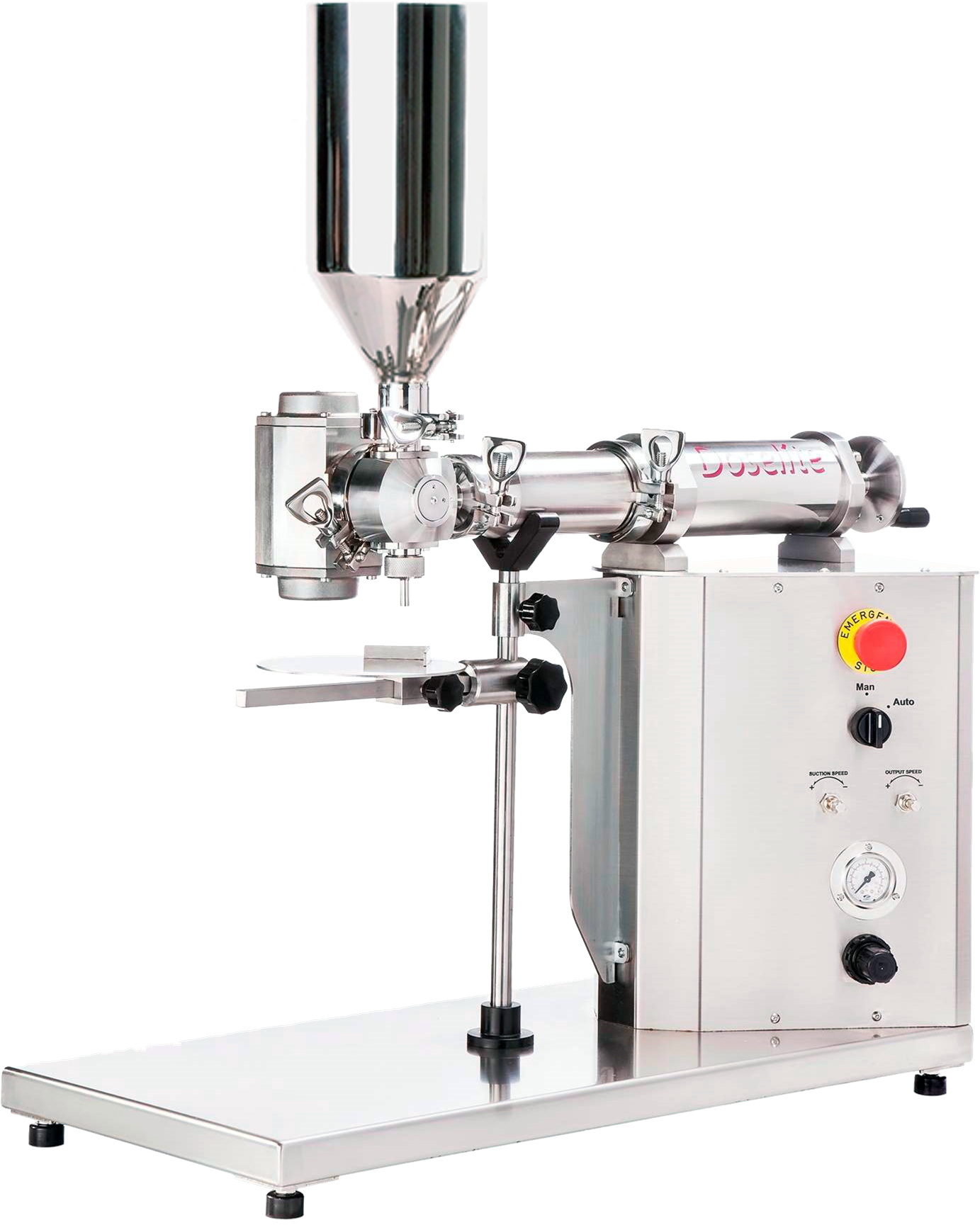

Viscous Products or Liquids with Solids - Dual Valve Configuration:
This configuration is designed to accurately fill thicker, higher viscosity products or products that contain solids such as honey, creams, liquid soap, shampoo, gels, sauces, dressings, dips, spreads, salsa, fruit fillings, and many similar products
- Equipped with 3-way Rotary Valve (for product flow)
- Innovative No-Drip Nozzle / Fill Valve
- 6L Hopper - Included
- Optional Kit to aspirate/pull product from source vessel - Not Included
- We will outfit your piston filler with the proper nozzle, seals, and O-rings for your product and container
Options:
- Hopper sized for your application (6L, 15L, 30L)
- Heated Hopper
- Mixing Auger for Hopper
- Piston Size: Larger or Smaller sizes available for larger/smaller applications
- Optional Silicone Gaskets and O-Rings upon request
- Optional Nozzle Sizes for different product fill and different bottle and jar specifications
- Pull/Aspirate your product from drum, bin, pale or other source instead of putting into a Hopper
- For products with abrasives such as cleansers, a Chrome Plated Piston is required
The price on our website may vary based upon your specific application or required configuration. Contact us for details.
