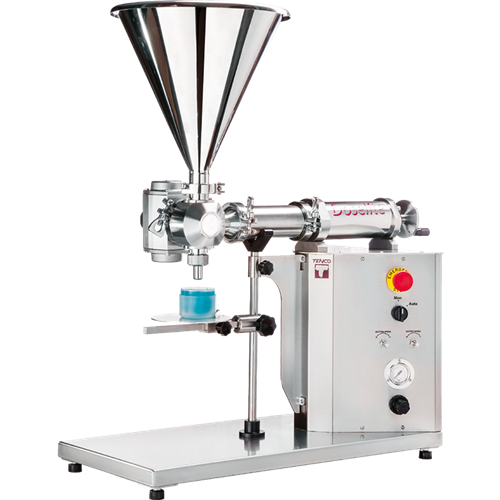

The Doselite Volumetric Fully Pneumatic Piston Filler sometimes referred to as a "dosing machine" by Tenco allows you to fill precise volumes of liquids, oils, gels, creams, sauces, and many other products, including products with particulates/solids, regardless of the size or shape of container with precision accuracy. Paired with an industry leading No-Drip Nozzle, this machine will increase production while also reducing product waste.
A hand-wheel is used to determine the product volume, while a numeric indicator shows the fill volume. Through the vacuum created by the piston movement, the product is drawn into the volumetric chamber. The operator presses the foot switch for starting the cycle; the piston pushes the product on the outside through the output valve and the filling nozzle at set intervals (in automatic mode) or with each press of the foot switch (in manual mode).
A hand-wheel is used to determine the product volume, while a numeric indicator shows the fill volume. Through the vacuum created by the piston movement, the product is drawn into the volumetric chamber. The operator presses the foot switch for starting the cycle; the piston pushes the product on the outside through the output valve and the filling nozzle at set intervals (in automatic mode) or with each press of the foot switch (in manual mode).
This machine is suited with No Drip Nozzles. This innovative design & engineering eliminates spillage and waste of expensive and valuable products. Additionally, piston size can be upgraded to a larger or smaller size to accommodate for larger/smaller applications.
This particular 1300ml Volumetric Filler is extremely well suited for accurate filling of many products into larger containers. For the food industry, items such as sauces, jams, with and without large chunks, and for the cosmetics industry, for the fill of large containers of lotions and creams, but can fill paint, pastes, and countless other highly viscous products or products with larger solids.
This particular 1300ml Volumetric Filler is extremely well suited for accurate filling of many products into larger containers. For the food industry, items such as sauces, jams, with and without large chunks, and for the cosmetics industry, for the fill of large containers of lotions and creams, but can fill paint, pastes, and countless other highly viscous products or products with larger solids.
CLICK HERE to watch the Doselite fill multiple types of products ranging from salsa to face cream
CLICK HERE to watch the Doselite fill 1.0 L mouthwash bottles
CLICK HERE to watch the Doselite fill buckets of paint
CLICK HERE to watch the Doselite Viscous fill a 32 oz container of hair gel
DETAILS
- Fully Pneumatic
- Explosion Proof for combustible products
- No electronics to short out during operation or cleaning
- Fills containers from 50ml to 1300ml (1.7 to 43.9 ounces)
- Automatic (timed) or Manual operation modes (foot pedal)
- Benchtop Frame
- No Drip Nozzles - Will be sized for your product and container
- Adjustable Fill Speeds & Volumes
- 1.5" Tri-Clamp In-feed Port
- 100% AISI 316 stainless steel construction
- Piston 316 stainless with 2x O-Rings and guide - No nuts, bolts or washers at top of piston to corrode or contaminate
- Stock with Silicone Gaskets and O-Rings - Viton/FKM Gaskets and O-Rings available upon request
- Engineered & Constructed for:
- Accuracy
- Speed
- Ease of Use
- Reliability
- Long Life Span
- Fully breaks down for cleaning and sterilization in 5-10 minutes
- Fills up to 500bph at 250ml doses (dependent on operator, container, and product)
- Certified for food production
- CE Certified
- Requires 60-90 PSI compressed air supply (we recommend 20-25 gallon air compressor)
- Filling Accuracy within 1% within the target volume
- Made in Italy
Viscous, Liquids, Liquid with Solids - Single L-Valve "Combo" Configuration:
This economy "Combo" configuration is designed to accurately fill products with any viscosity, with or without solids. This particular configuration is better suited for, but not exclusive to, small fills of lower viscosity products with higher surface tension (perfumes, chemicals, oils, lotions, shampoo, liquid soaps) or larger fills of thicker/more viscous products or liquids with solids (syrups, honey, creams, spreads, sauces, salsa, dressings, jams and fillings).
- Equipped with single Rotary L-Valve
- Aspirates directly from source container/vessel
- Optional Hopper - Not Included
- We will outfit your piston filler with the proper nozzle, seals, and O-rings for your product and container

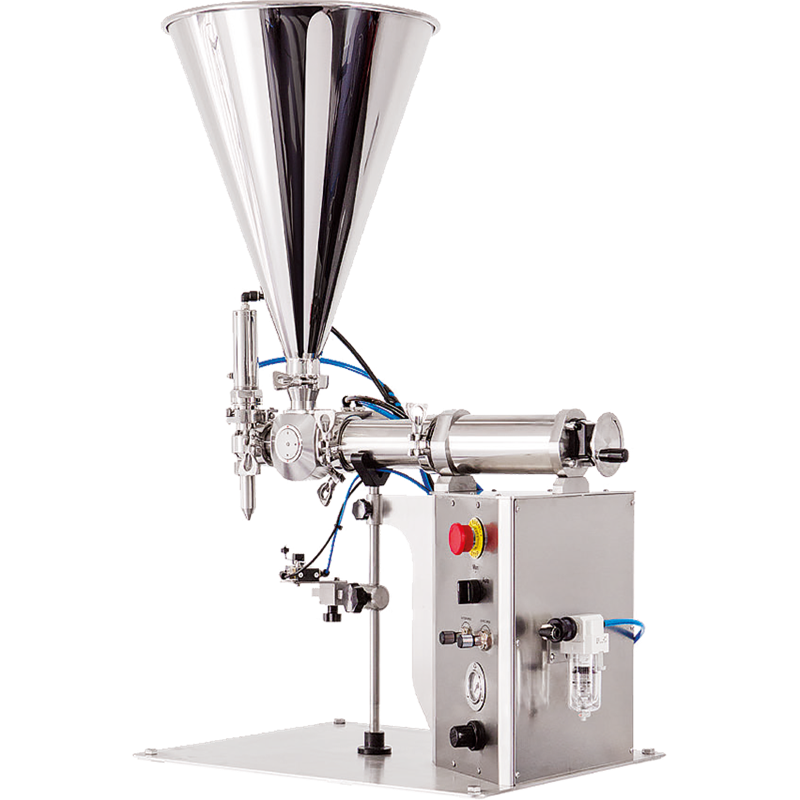

Liquid or Low Viscosity Products - Single Vertical Valve Configuration:
This configuration is designed to accurately fill liquids and products with a lower viscosity that does not contain solids such as perfume, chemicals, olive oil, essential oils, tinctures, most beverages, and many similar products

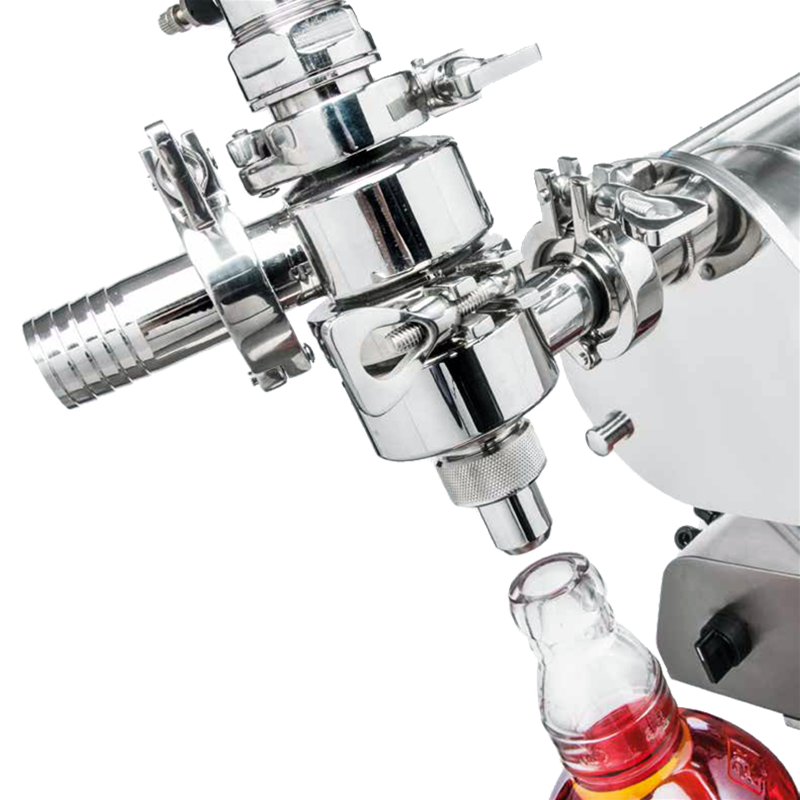

- Equipped with 3-Way Vertical Valve / No Drip Nozzle Combo Valve
- Aspirates directly from source container/vessel
- Optional Hopper - Not included
- We will outfit your piston filler with the proper nozzle, seals, and O-rings for your product and container

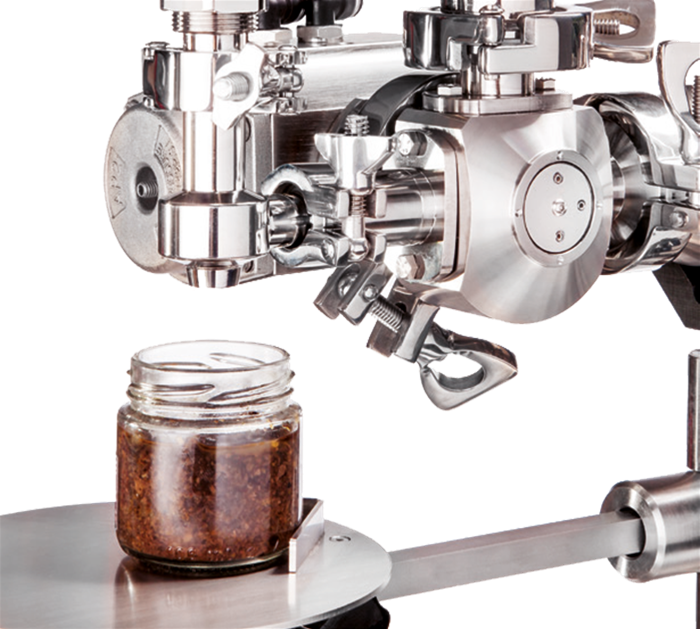

Viscous Products or Liquids with Solids - Dual Valve Configuration:
This configuration is specifically designed to accurately fill thicker, higher viscosity products or products that contain solids such as honey, creams, liquid soap, shampoo, gels, sauces, dressings, dips, spreads, salsa, fruit fillings, and many similar products
- Equipped with 3-way Rotary Valve (for product flow)
- Innovative No-Drip Nozzle / Fill Valve
- 30L Hopper - Included
- Optional Kit to aspirate/pull product from source vessel - Not Included
- We will outfit your piston filler with the proper nozzle, seals, and O-rings for your product and container
Options:
- Hopper sized for your application (6L, 15L, 30L)
- Heated Hopper
- Mixing Auger for Hopper
- Piston Size: Larger or Smaller sizes available for larger/smaller applications
- Pull/Aspirate your product from drum, bin, pale or other source instead of putting into a Hopper
- Viton Gaskets and Seals
- For products with abrasives, such as cleansers, a Chrome Plated Piston will be required
- Carted Version - Click Here to View
The price on our website may vary based upon your specific application or required configuration. Contact us for details
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
