MP04 40 Plate Filter (60x60)
(84 - 155 HL/h)

Price: make selection(s)
  • Item #PFZ-MP04

Options

- +

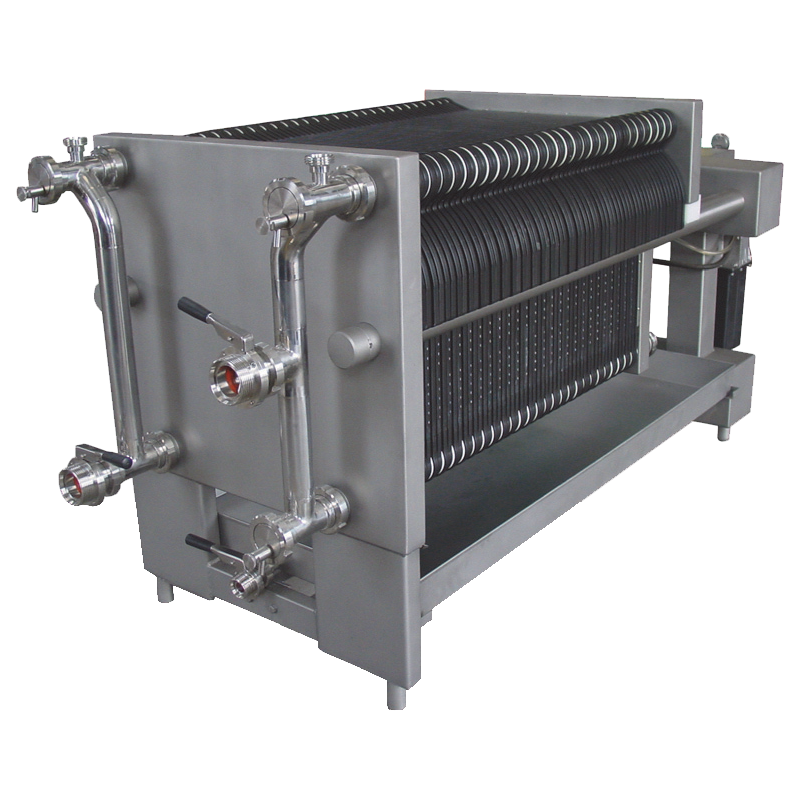

The Zambelli MP04 is an industrial, top-of-the-line, 60x60 plate filter manufactured entirely of AISI 304 stainless steel intended for the mid-sized winery, cidery, and distillery. The Filter includes 40 food-grade polypropylene or AISI 316 stainless steel plates, providing a filtration surface of 13.5 mwith a maximum output of 15,500 liters (4100 gallons) per hour. It features a Manual Hydraulic Closure system, Crossover "Inversion" Plate for double filtration, heavy-duty stainless frame with a backup drip tray, large wheels for sturdy mobility, dual pressure gauges, and 2.5” Tri-Clamp inlet and outlet with Butterfly Valves.

DETAILS
  • 40 Filter Plates (60 x 60 cm)
  • Filtration rate of 84 - 155 HL/h (2225 - 4100 gal/h)
  • Total filtration area of 13.5 m2 (145 ft2)

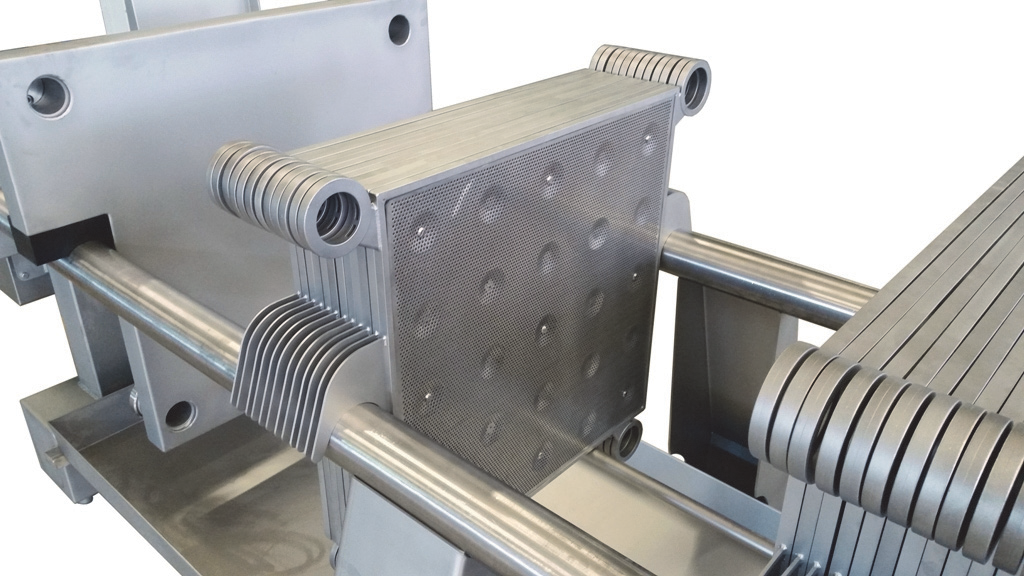

  • Polypropylene or AISI 316 Stainless Steel Plates
  • Manual Hydraulic Enclosure
  • Crossover Plate for Double Filtration
  • Dual Pressure Gauges
  • Flow regulation valve
  • 2.5" Tri-Clamp inlet and outlet

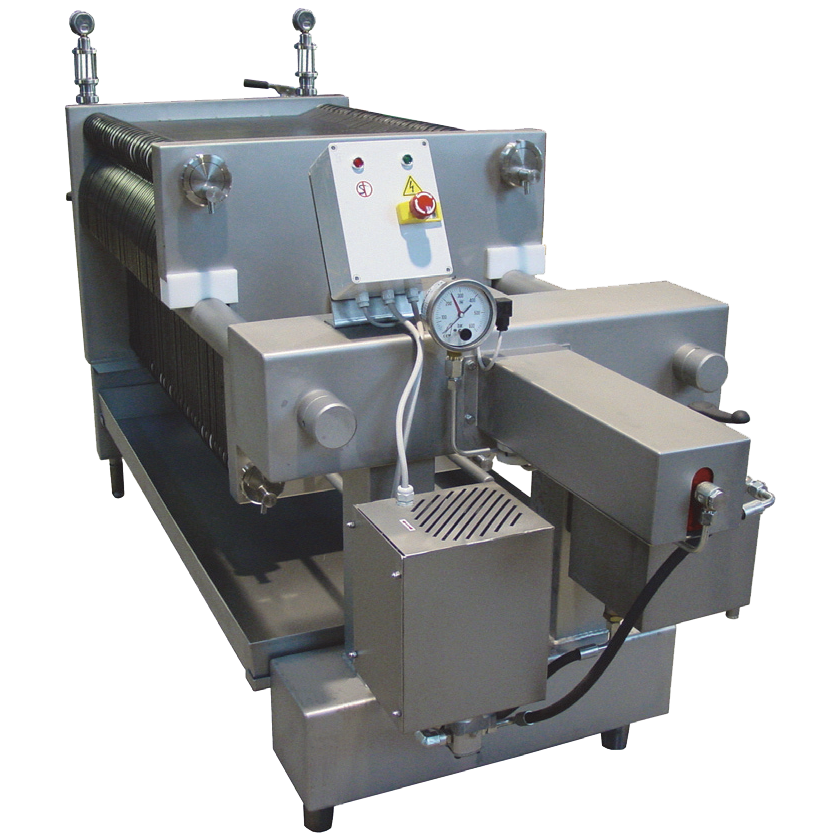

  • Electric Hydraulic Closure OPTIONAL
  • AISI 304 stainless steel construction
  • 97" L x 34" W x 56" H
  • 2,650 lbs
  • Italian made by Zambelli
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly they may be received with very minor scratches not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in working order.
