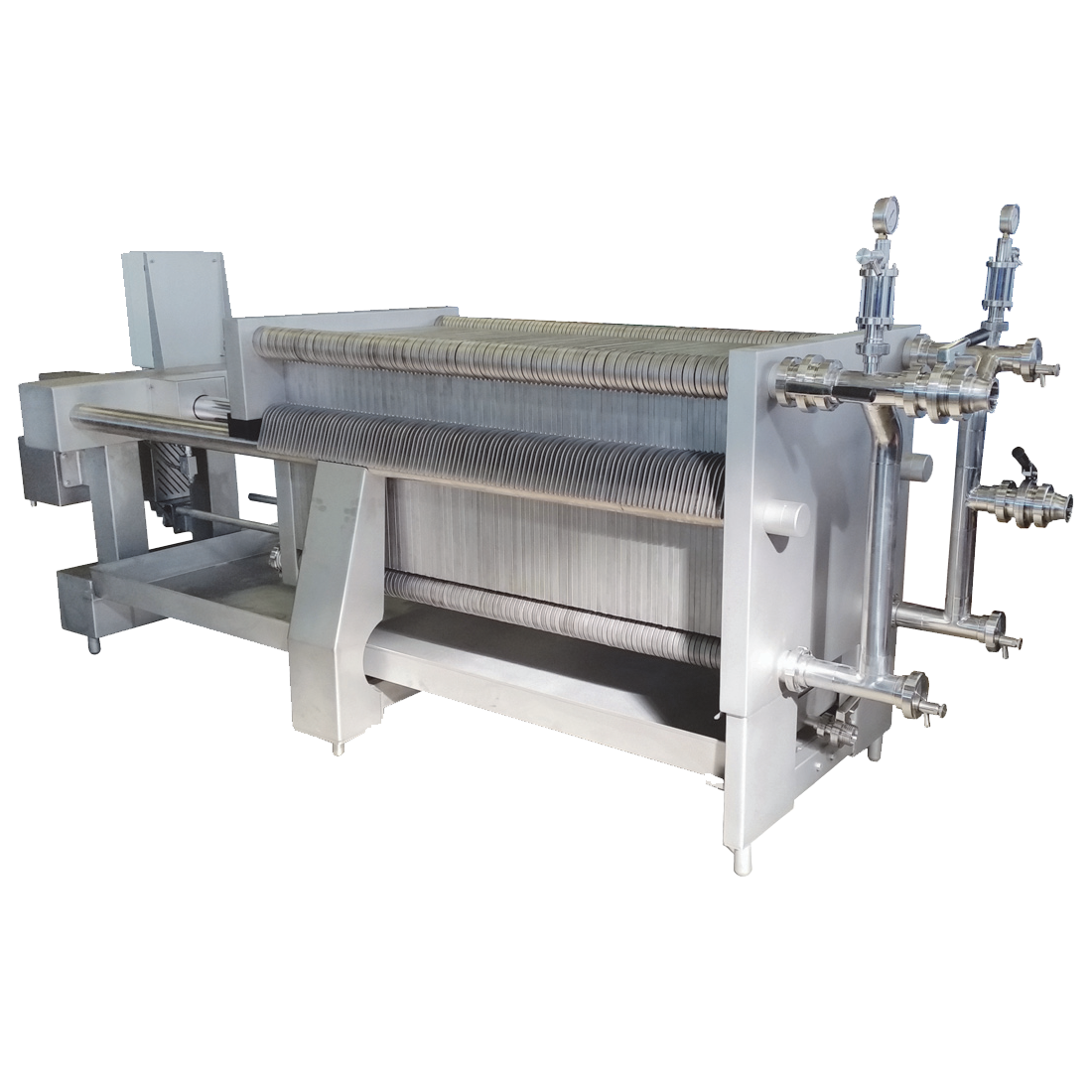

The Zambelli MP10 is an industrial, top-of-the-line, 60x60 plate filter manufactured entirely of AISI 304 stainless steel intended for the mid-sized winery, cidery, and distillery. The Filter includes 100 food-grade polypropylene or AISI 316 plates, providing a filtration surface of 34 m2 with a maximum output of 39,200 liters (10,350 gallons) per hour. It features a Manual Hydraulic Closure system, Crossover "Inversion" Plate for double filtration, heavy-duty stainless frame with a backup drip tray, large wheels for sturdy mobility, dual pressure gauges, and 2.5” Tri-Clamp inlet and outlet with Butterfly Valves.
DETAILS
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly they may be received with very minor scratches not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in working order.
WMD Equipment
Your Trusted Source for Filtration & Packaging Equipment
DETAILS
- 100 Filter Plates (60 x 60 cm)
- Filtration rate of 214 - 392 HL/h (5650 - 10,350 gal/h)
- Total filtration area of 34 m2 (365 ft2)
- Polypropylene or AISI 316 Stainless Steel Plates
- Manual Hydraulic Enclosure
- Crossover Plate for Double Filtration
- Dual Pressure Gauges
- Flow regulation valve
- 2.5" Tri-Clamp inlet and outlet
- Electric Hydraulic Closure OPTIONAL
- AISI 304 stainless steel construction
- 138" L x 34" W x 56" H
- 3,850 lbs
- Italian made by Zambelli
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly they may be received with very minor scratches not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in working order.
