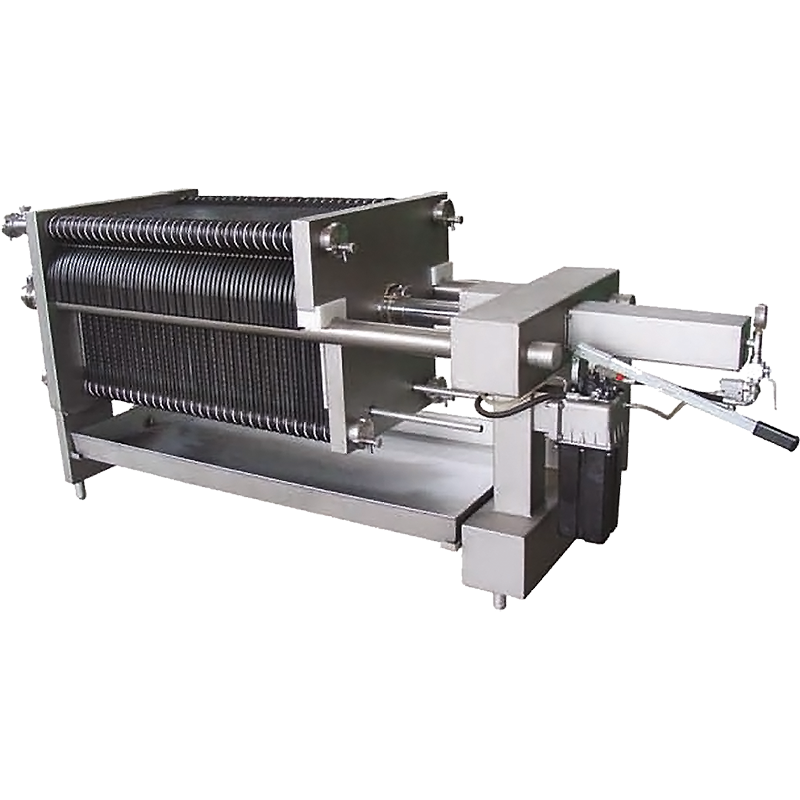

The Zambelli MP06 is an industrial, top-of-the-line, 60x60 plate filter manufactured entirely of AISI 304 stainless steel intended for the mid-sized winery, cidery, or distillery. The Filter includes 60 food-grade polypropylene or AISI 316 stainless steel plates, providing a filtration surface of 20 m2 with a maximum output of 23,400 liters (6200 gallons) per hour. It features a Manual Hydraulic Closure system, Crossover "Inversion" Plate for double filtration, heavy-duty stainless frame with a backup drip tray, large wheels for sturdy mobility, dual pressure gauges, and 2.5” Tri-Clamp inlet and outlet with Butterfly Valves.
DETAILS
- 60 Filter Plates (60 x 60 cm)
- Filtration rate of 128 - 234 HL/h (3400 - 6200 gal/h)
- Total filtration area of 20 m2 (215 ft2)
- Polypropylene or AISI 316 Stainless Steel Plates
- Manual Hydraulic Enclosure
- Crossover Plate for Double Filtration
- Dual Pressure Gauges
- Flow regulation valve
- 2.5" Tri-Clamp inlet and outlet
- Electric Hydraulic Closure OPTIONAL
- AISI 304 stainless steel construction
- 110" L x 34" W x 56" H
- 2,845 lbs
- Italian made by Zambelli
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly they may be received with very minor scratches not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in working order.
