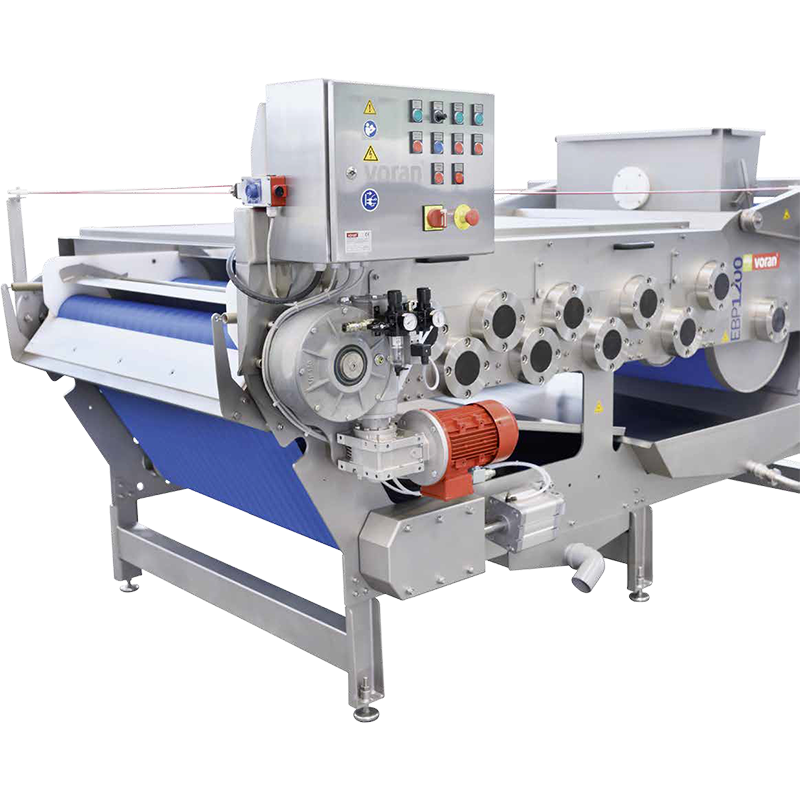

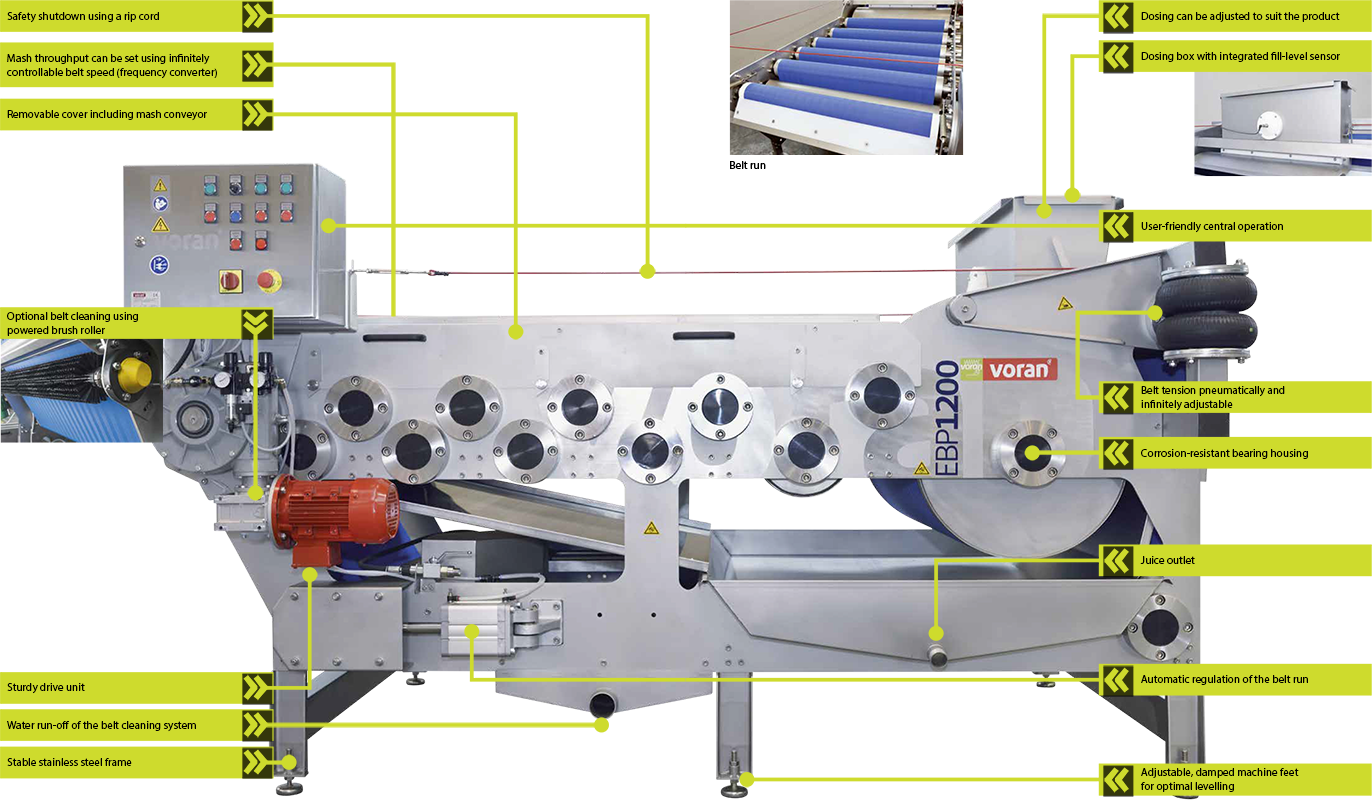

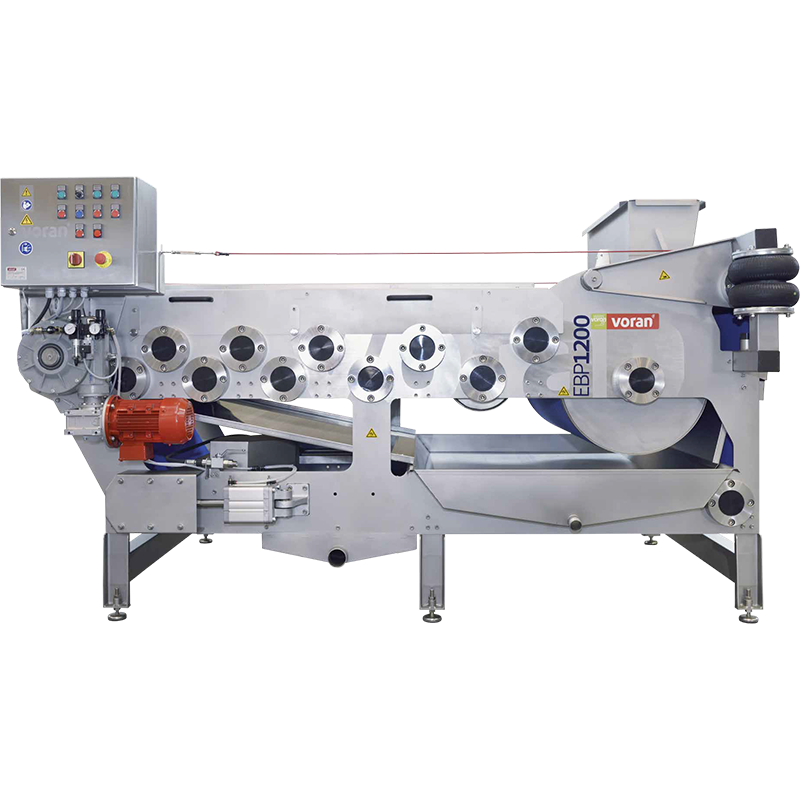

The EBP1200 Belt Press by Voran is completely automatic and continuous, requiring only very limited monitoring effort. The stepless regulation of the pressing speed and force guarantees optimal juice quality and a high yield of up to 75 %.The belt press can be used universally for various types of fruit (stone fruits must be pitted before they are pressed), berries, vegetables, and for the dehydration of various materials. Special attention was paid to the easy accessibility of all system parts and their easy cleaning.
The skimming frame can be removed without the aid of tools. This allows interim and final cleaning to be carried out easily and efficiently. All of the system parts coming into contact with products are suitable for use with foods. Since the complete structure is made from stainless steel, it meets the strict critera and highest hygienic requirementsfor food processing.
The skimming frame can be removed without the aid of tools. This allows interim and final cleaning to be carried out easily and efficiently. All of the system parts coming into contact with products are suitable for use with foods. Since the complete structure is made from stainless steel, it meets the strict critera and highest hygienic requirementsfor food processing.
DETAILS
- Hourly Production: 3.3 Ton
- Juice Yield: 75%
- Contact Time: 2 - 11 minutes
- Belt Speed: 20 - 138 in/min
- Belt Width: 47 inches
- Conveyor Width: 35 inches
- Strip Length: 392 inches
- Juice Outlet: (2) 3.0" Tri-Clamp
- Drive Motor: 4.0 HP, 220v, 1-PH, 16A
- Clean Motor: 0.7 HP, 220v, 1-PH, 16A
- Dimensions: 118" L x 82" W x 67" H
- Weight: 5,525 lbs
- AISI 304 stainless steel construction
- Made in Austria by Voran
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
*Installation and Set Up service available at additional cost
