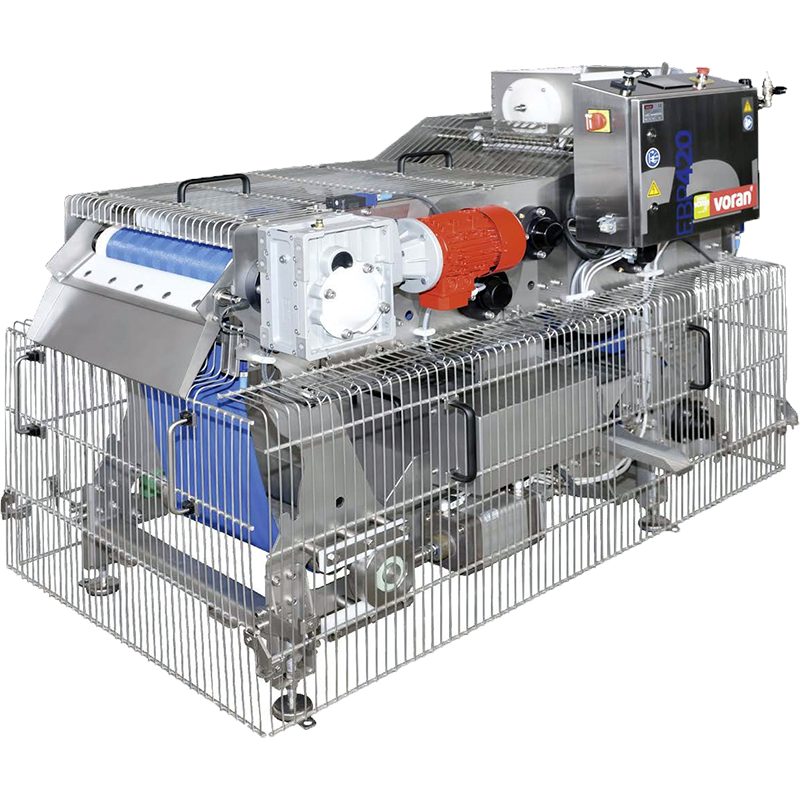

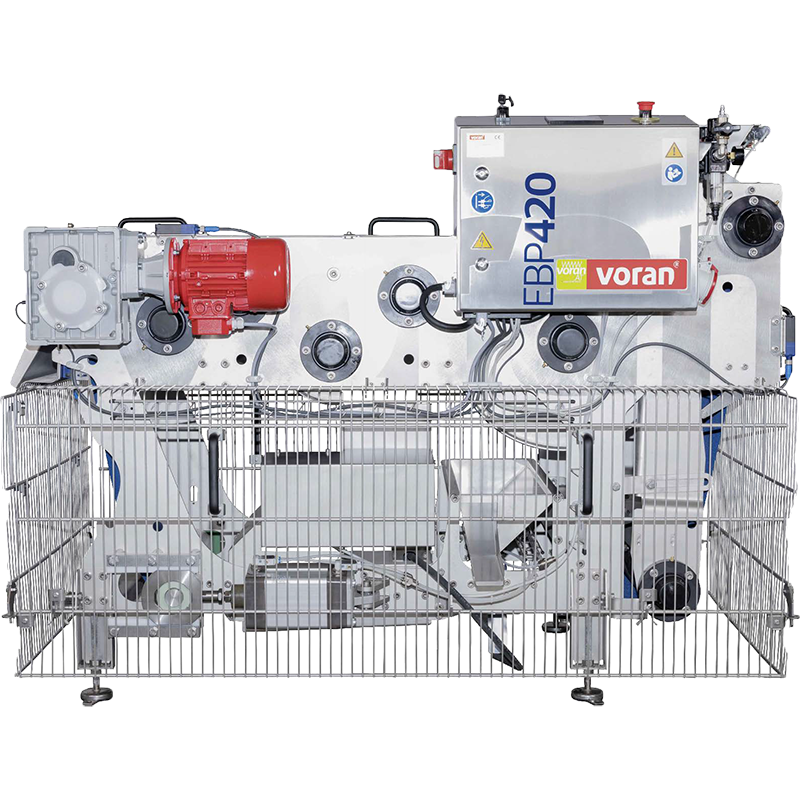

The EBP420 Belt Press by Voran is completely automatic and continuous, requiring a low level of monitoring. The infinite regulation of the press speed and pressure guarantees ideal juice quality and up to 75% yield. It can be used universally for various types of fruit (stones/pits or must be removed before pressing), berries, vegetables, herbs and to dehydrate all kinds of ingredients.

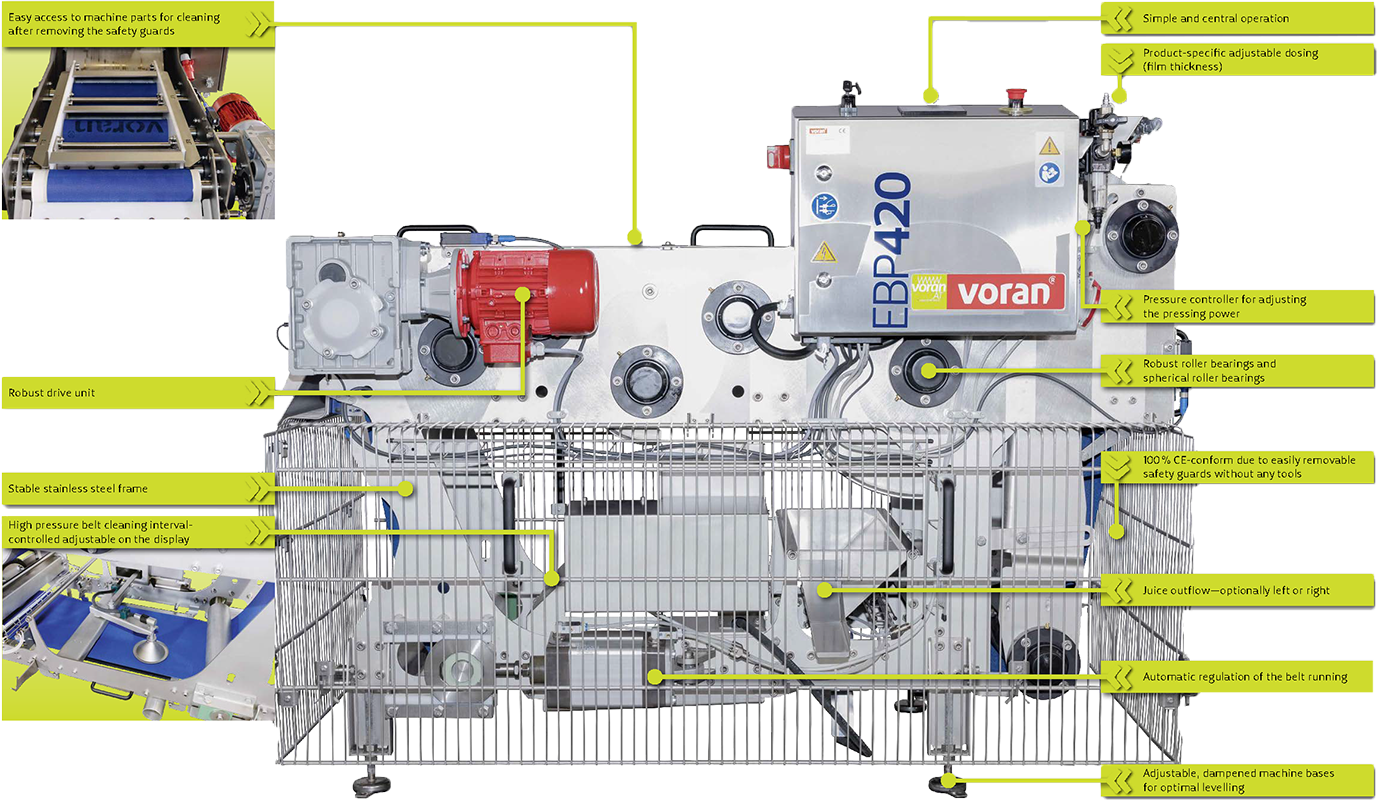

During construction the special focus is on the easy accessibility of all of the machine‘s parts and their simple cleaning. All additional accessories, such as dosing boxes, mash guidance, juice guidance sheet, juice container etc. can be removed without tools. This enables intermediate and final cleaning to be conducted efficiently. All machine parts that are in contact with the food are food-grade. The whole design is made from stainless steel and therefore meets the highest hygiene requirements for food processing.
Click Here to see the EBP580 (big brother to the EBP420) operate.
During construction the special focus is on the easy accessibility of all of the machine‘s parts and their simple cleaning. All additional accessories, such as dosing boxes, mash guidance, juice guidance sheet, juice container etc. can be removed without tools. This enables intermediate and final cleaning to be conducted efficiently. All machine parts that are in contact with the food are food-grade. The whole design is made from stainless steel and therefore meets the highest hygiene requirements for food processing.
Click Here to see the EBP580 (big brother to the EBP420) operate.
DETAILS
- Hourly Production: 0.6 Ton
- Touch Screen Control Unit
- Supplied with Variable Frequency Drive for infinite speed control
- Juice Yield: 75%
- Belt Width: 16.55 in
- Belt Speed: 6.89 - 18.05 ft/min
- Motor: 1.7 HP, 220v, 1-PH, 16A
- Dimensions: 72" L x 43" W x 51" H, 1100 lbs
- AISI 304 stainless steel construction
- Made in Austria by Voran
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly they may be received with very minor scratches not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in working order..
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly they may be received with very minor scratches not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in working order..
*Installation and Set Up service available at additional cost
