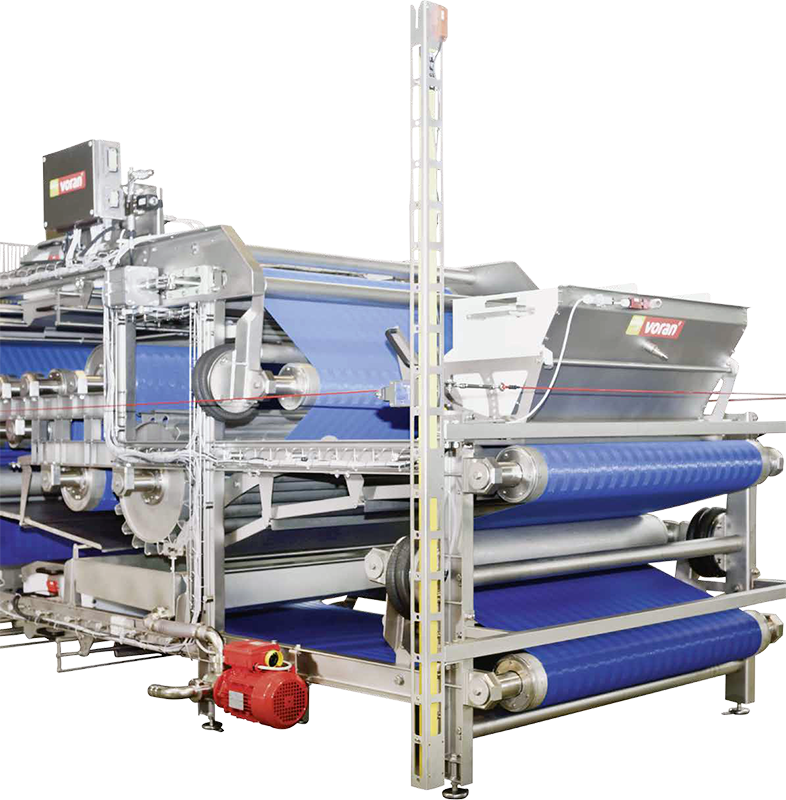

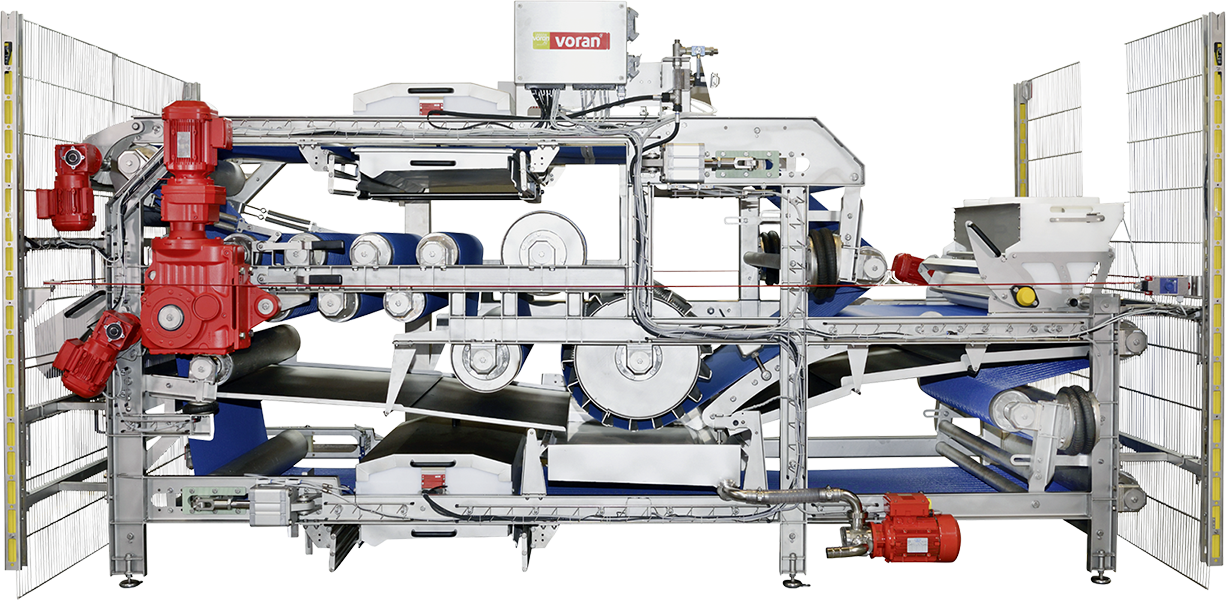

The ZBP1100 Twin Belt Press by Voran is completely automatic and continuous, requiring only very limited monitoring effort. The stepless regulation of the pressing speed and force guarantees optimal juice quality and a high yield of up to 80%. The belt press can be used universally for various types of fruit (stone fruits must be pitted before they are pressed), berries, vegetables, and for the dehydration of various materials. Yield is transferred from machine via mounted juice pump. Special attention was paid to the easy accessibility of all system parts and their easy cleaning.
The skimming frame can be removed without the aid of tools. This allows interim and final cleaning to be carried out easily and efficiently. All of the system parts coming into contact with products are suitable for use with foods. Since the complete structure is made from stainless steel, it meets the strict critera and highest hygienic requirements for food processing. On-board high-pressure cleaning system with compressor and motorized roller brush included.

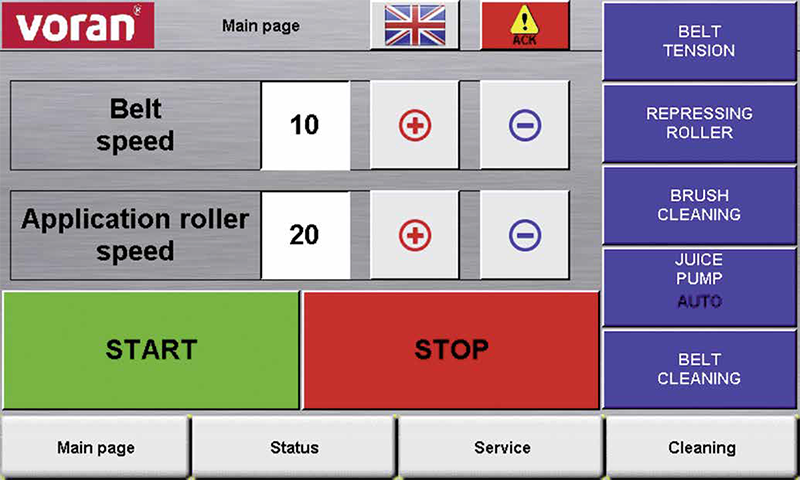

Operating Time, Belt & Roller Speed, Juice Pump, Belt & Brush Cleaning, and Calibration of Rollers & Belt can all be controlled via the on-board touch-screen control unit.
The skimming frame can be removed without the aid of tools. This allows interim and final cleaning to be carried out easily and efficiently. All of the system parts coming into contact with products are suitable for use with foods. Since the complete structure is made from stainless steel, it meets the strict critera and highest hygienic requirements for food processing. On-board high-pressure cleaning system with compressor and motorized roller brush included.
Operating Time, Belt & Roller Speed, Juice Pump, Belt & Brush Cleaning, and Calibration of Rollers & Belt can all be controlled via the on-board touch-screen control unit.
DETAILS
- Hourly Production: 7.7 Ton
- Juice Yield: 80%
- On-Board Digital Touch-Screen Control Unit
- High-Pressure Cleaning System with Compressor and Roller Brush
- Mounted Juice Pump
- Contact Time: 1.5 - 6 min
- Belt Speed: 47 - 177 in/min
- Belt Width: 43"
- Conveyor Feed Width: 12" - 35"
- Strip Length: 430", 570"
- Mash Load: 56" H
- Juice Outlet: 3.0" Tri-Clamp
- Drive Motor: 5.6 HP, 208/220v 60Hz, 3-PH, 16A
- Clean Motor: 10 HP, 208/220v 60Hz, 3-PH, 16A
- Compressor: 1.5 HP, 208/220v 60Hz, 3-PH, 16A
- Dimensions: 175" L x 90" W x 85" H
- Weight: 7,900 lbs
- AISI 304 stainless steel construction
- Made in Austria by Voran
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY!
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly they may be received with very minor scratches not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in working order.
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly they may be received with very minor scratches not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in working order.
*Installation and Set Up service available at additional cost
