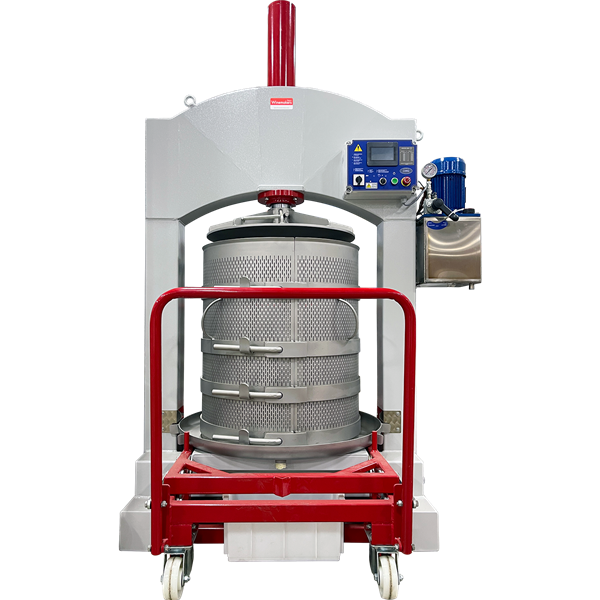

Zambelli ATON presses stand out for their special constructive innovation: with only one trolley and suitable stands you may either move the whole press or use more cages for each working cycle. The oleodinamic gearbox is outfitted with a microcontacts gauge which automatically controls both the stop and the restart of the pump at the desired pressure and length of time. The ATON has two pressing modes: Manual and Automatic.
In Manual mode, the press will operate continuously at a maximum pressure set by the user—up to 350 Bar (5,075 PSI).

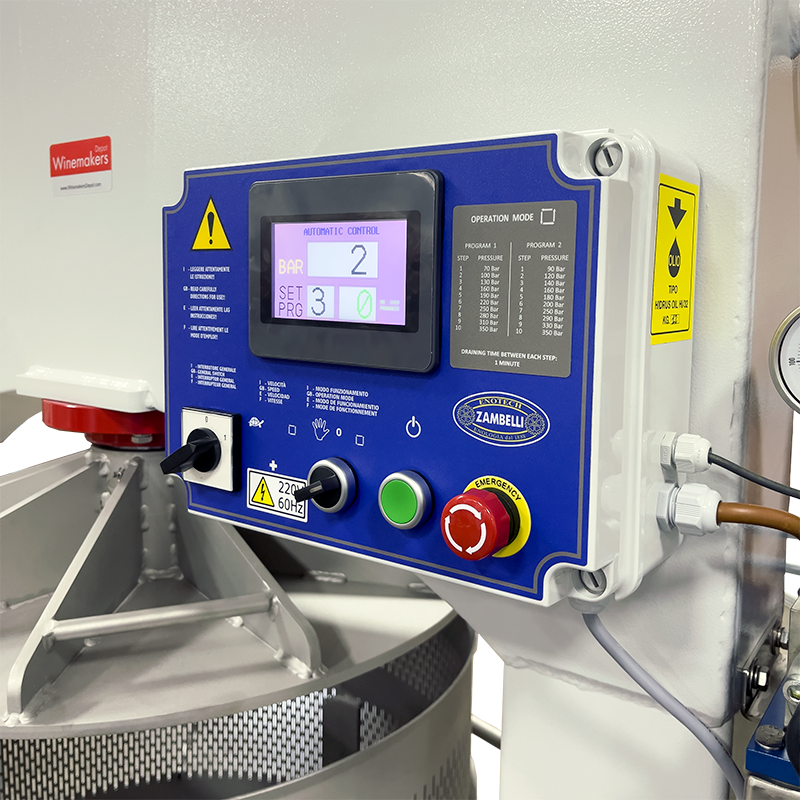

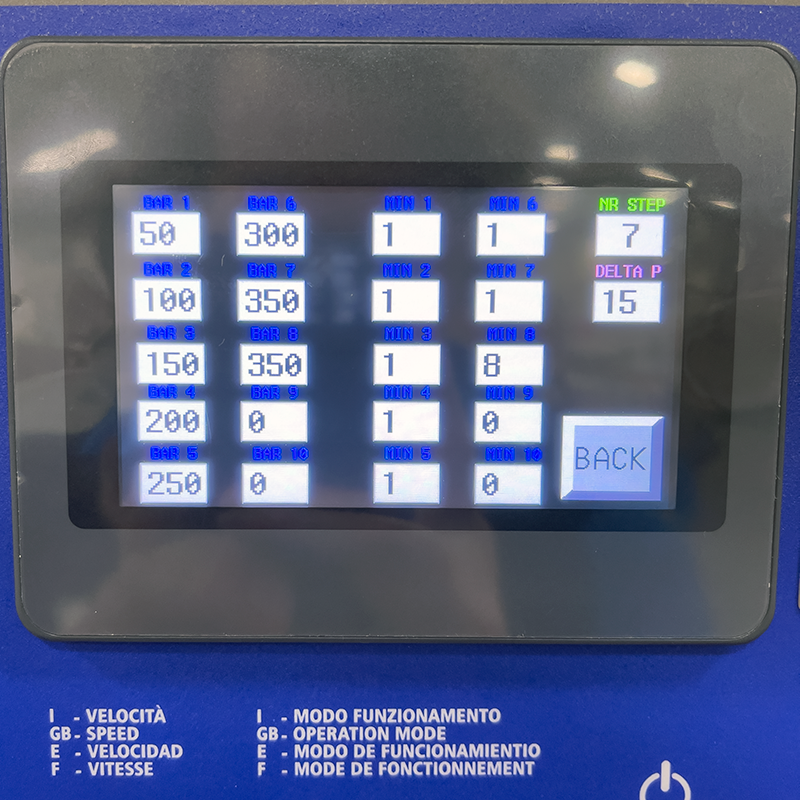

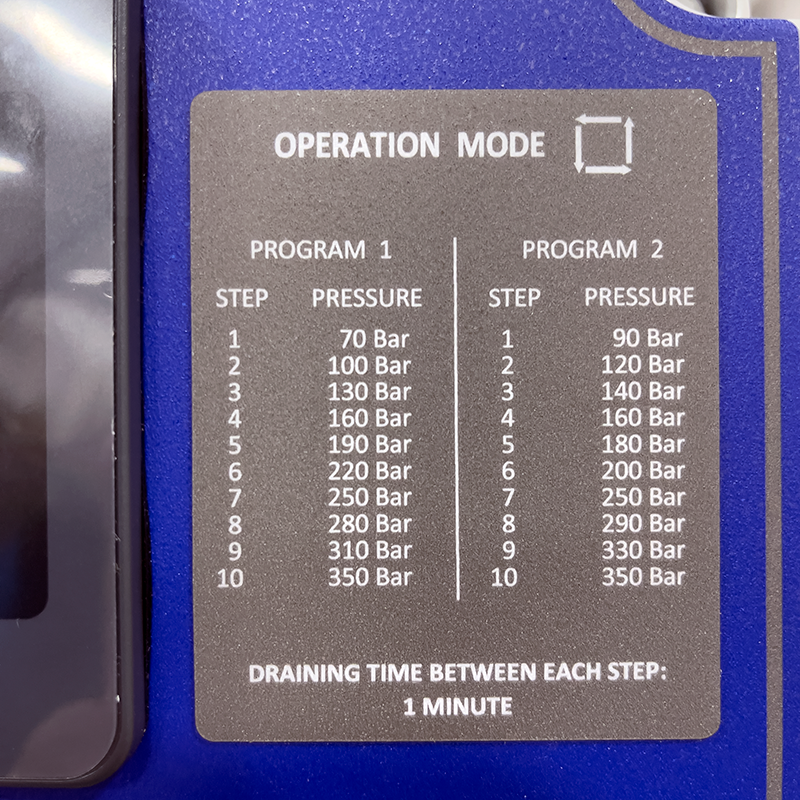

Automatic mode features a three-program pressing system that allows for 10 steps of increasing levels of pressure and pressing times per cycle. Programs 1 and 2 have been pre-set by Zambelli’s experts. Program 3 is completely customizable; allowing the user to set the number of steps, pressure levels, pressing times, and deltas.
To see a quick rundown of the operation of the press CLICK HERE
DETAILS
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
In Manual mode, the press will operate continuously at a maximum pressure set by the user—up to 350 Bar (5,075 PSI).
Automatic mode features a three-program pressing system that allows for 10 steps of increasing levels of pressure and pressing times per cycle. Programs 1 and 2 have been pre-set by Zambelli’s experts. Program 3 is completely customizable; allowing the user to set the number of steps, pressure levels, pressing times, and deltas.
To see a quick rundown of the operation of the press CLICK HERE
DETAILS
- AISI 304 Stainless Steel Press Plate, Cage, and Basin
- Oleodinamic Gearbox

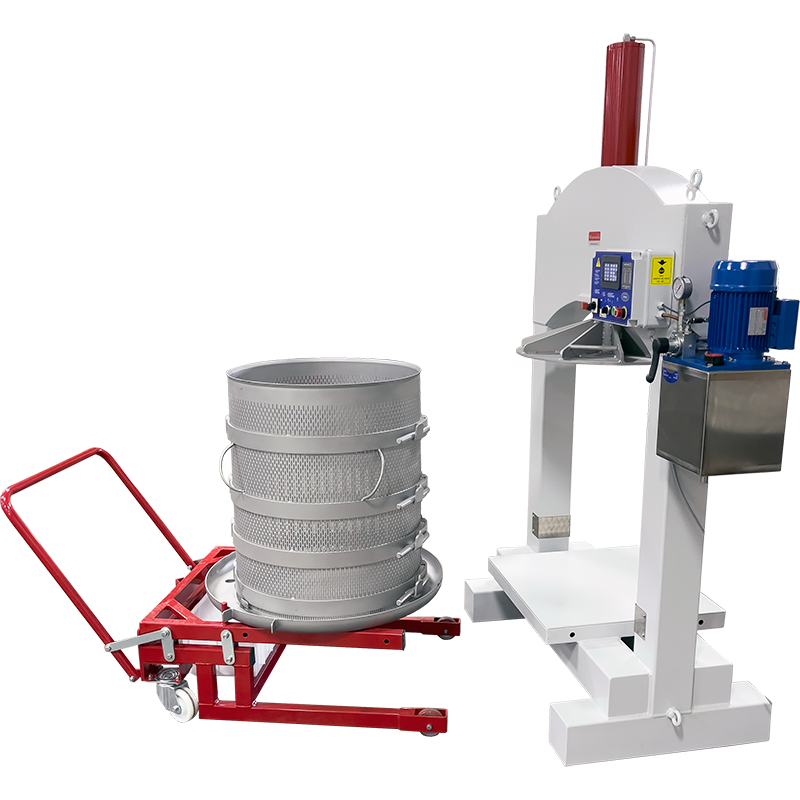

- Includes Rolling Cart with mechanical lift function for transporting Basket to and from Press
- Locking pins secure Basket and Cart in place during pressing
- Manual or Automatic pressing modes
- Automatic mode contains 3 separate cycles with adjustable pressure and duration
- Motor: 2.1 HP, 220v 1-PH, 10.2A
- Steel Frame, Base, and Cart with baked enamel finish
- Supplied with food-grade ISO 32 Bio-Hydraulic Oil
- Italian made by Zambelli
| ATON 600 | ATON 700 | ATON 800 | |
| CAPACITY: |
58 gal (220 lt) | 87 gal (330 lt) | 127 gal (480 lt) |
| MAX PRESSURE: | 350 BAR (5075 PSI) | 350 BAR (5075 PSI) | 350 BAR (5075 PSI) |
| PISTON STROKE: | 24 in (600 mm) | 26 in (650 mm) | 30 in (750 mm) |
| Ø PISTON: | 3.55 in (90 mm) | 4.33 in (110 mm) | 4.72 in (120 mm) |
| CAGE DIMENSIONS Diameter: Height: |
24 in (600 mm)
30 in (750 mm)
|
28 in (700 mm)
33 in (850 mm)
|
31 in (800 mm)
37 in (950 mm)
|
| TOTAL DIMENSIONS Length: Width: Height: |
55 in (1400 mm)
45 in (1150 mm)
90 in (2290 mm)
|
61 in (1550 mm)
55 in (1400 mm)
97 in (2460 mm)
|
66 in (1680 mm)
59 in (1500 mm)
107 in (2730 mm)
|
| WEIGHT: | 893 lb (405 kg) | 1433 lb (650 kg) | 1720 lb (780 kg) |
