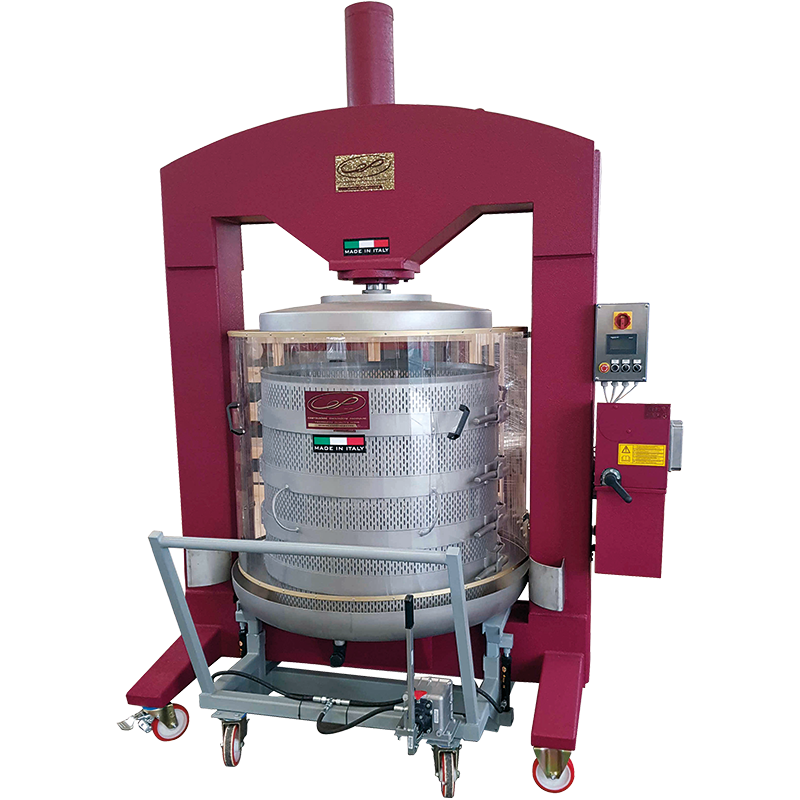

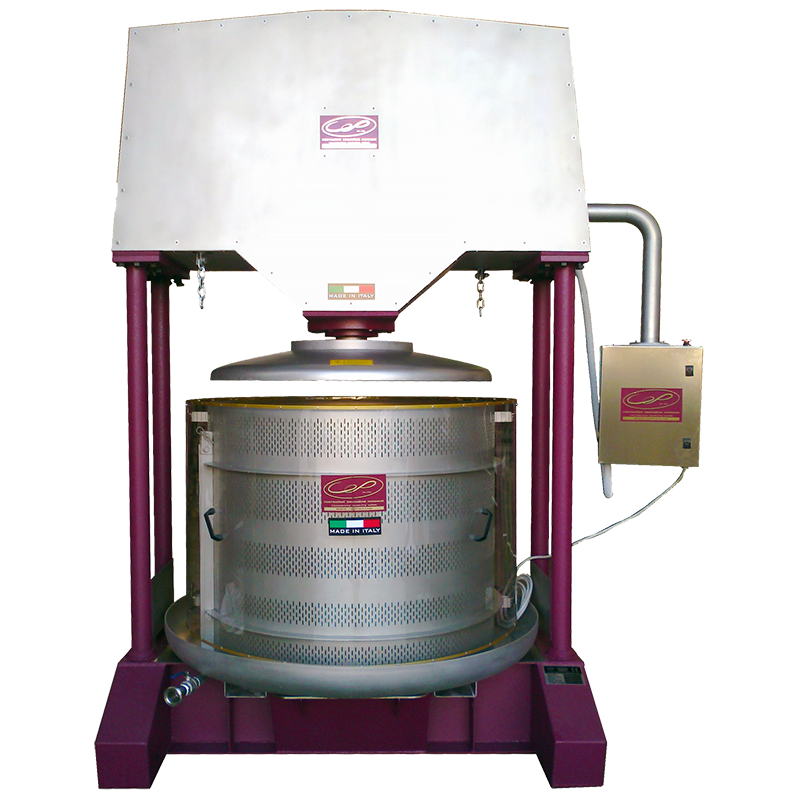

The Sirio Hydraulic Vertical Press by CEP Italy is the result of over 50 years of industry-leading oenological innovation. With exacting precision, the Sirio Press is designed to exert equal pressure on each grape, from the press plate to the basin, while avoiding the cellular breakdown of any physical particle, to ensure that the highest quality juice is extracted without the production of lees. The on-board programmable control box enables you to set multiple pressing cycles and program the pressure and duration of each cycle.
Every Sirio Press has an AISI 304 Stainless Steel Cage, Press Plate, and Basin. The Sirio 80 & Sirio 100 include a stainless-steel cart for transporting the basket to and from the press, while the Sirio 130 & Sirio 150 features CEP’s innovative forklift Basin. Each Press is also equipped with a shock-resistant polycarbonate Cage Shield, Dripping Diaphragm, and Automatic Cage Lift System.
Click Here to watch the SIRIO 80 run through a short cycle
Click Here to see how the SIRIO 130 operates (enjoy the music!)
DETAILS
CALL TO ORDER
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly they may be received with very minor scratches not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in working order.
WMD Equipment
Your Trusted Source for Food & Beverage Processing Equipment & Supplies
Every Sirio Press has an AISI 304 Stainless Steel Cage, Press Plate, and Basin. The Sirio 80 & Sirio 100 include a stainless-steel cart for transporting the basket to and from the press, while the Sirio 130 & Sirio 150 features CEP’s innovative forklift Basin. Each Press is also equipped with a shock-resistant polycarbonate Cage Shield, Dripping Diaphragm, and Automatic Cage Lift System.
Click Here to watch the SIRIO 80 run through a short cycle
Click Here to see how the SIRIO 130 operates (enjoy the music!)
DETAILS
- Dual Hydraulic Pumps provide two approach speed options
- Two pre-set programs with customizable pressing cycles
- One "open" program for complete customization
- Touch-Screen Controls rated IP56 water-proof
- Control Panel & Support Arm encased in AISI 304 stainless steel
- Automatic Cage Lift system
- Cage Shield rims gold-plated
- AISI 304 stainless steel Press Plate, Cage, & channeled Basin
- Stainless steel Transport Cart (Sirio 80 & 100)
- 2.5" Tri-Clamp Drain
- Made in Italy
| SIRIO 80 | SIRIO 100 | SIRIO 130 | SIRIO 150 | |
| CAPACITY: |
127 gal (480 lt) | 238 gal (900 lt) | 383 gal (1450 lt) | 515 gal (1950 lt) |
| PRESSURE: | 5 - 350 BAR | 5 - 350 BAR | 5 - 350 BAR | 5 - 350 BAR |
| POWER: Pump 1: Pump 2: |
220v, 1-Phase 1.5 HP 1.5 HP |
220v, 1-Phase 1.5 HP 1.5 HP |
480v, 3-Phase 4.0 HP 1.5 HP |
480V, 3-Phase 4.0 HP 1.5 HP |
| CAGE DIMENSIONS Diameter: Height: |
32 in (800 mm) 37 in (950 mm) |
39 in (1000 mm)
39 in (1000 mm)
|
51 in (1300 mm)
43 in (1100 mm)
|
59 in (1500 mm)
43 in (1100 mm)
|
| TOTAL DIMENSIONS Length: Width: Height: |
71 in (1800 mm) 51 in (1300 mm) 112 in (2850 mm) |
83 in (2100 mm)
55 in (1400 mm)
114 in (2900 mm)
|
83 in (2100 mm)
71 in (1800 mm)
91 in (2300 mm)
|
95 in (2400 mm)
79 in (2000 mm)
91 in (2300 mm)
|
| WEIGHT: | 2095 lbs (950 kg) | 3307 lb (1500 kg) | 5953 lb (2700 kg) | 7275 lb (3300 kg) |
