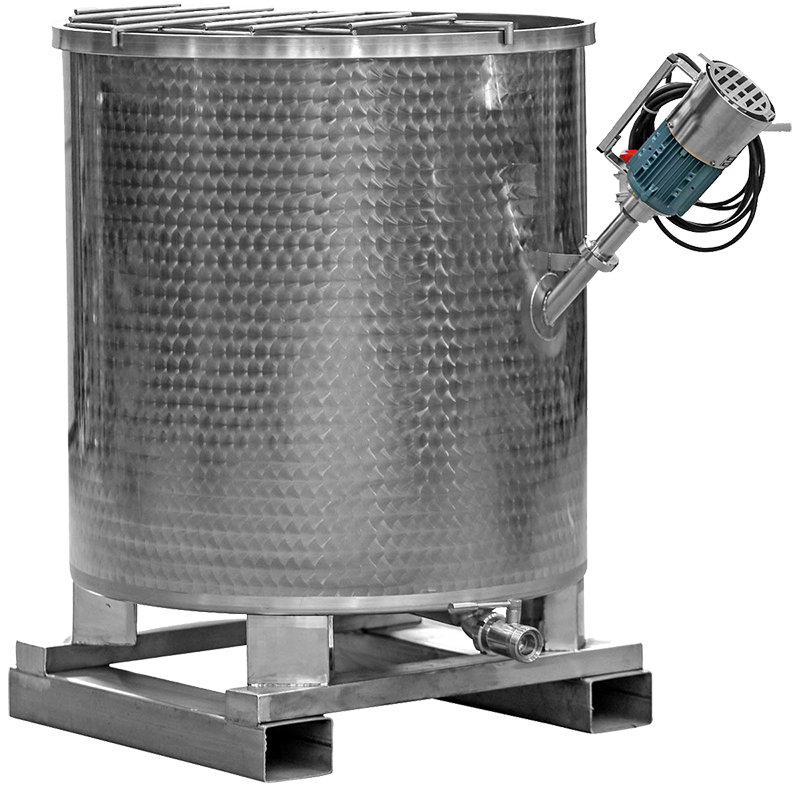

Our Round Bottom Mixing Tank with Agitator Port is constructed entirely of AISI 304 stainless steel with a mirror polished interior (BA/3D) and circle polished exterior. The tank is secured to a stainless steel forklift base outfitted for easy transport via forklift or pallet jack and is outfitted with an additional port intended for use with an external agitator (not included).
Each tank comes standard with the following features:
CALL TO ORDER
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly they may be received with very minor scratches not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in working order.
WMD Equipment - Your Trusted Source for Food and Beverage Processing Equipment
Each tank comes standard with the following features:
- Round Bottom with molded pocket for full discharge
- Welded forklift base
- Removable dust cover
- Full "Total" Drain Port with Tri-Clamp Ball Valve
- Sample/Tasting Port with Valve (included starting February 2024)
- Agitator Port with Tri-Clamp Ball Valve
- Portable Tank Agitator AVAILABLE HERE
- AISI 304 Stainless Steel Construction
- SEE BELOW FOR COMPLETE SPECIFICATIONS
- Cooling Jacket and Thermometer
- 500 - 1000L: 400mm Jacket
- 1500L: 900mm Jacket
- 2000L: 1000mm Jacket
- Sack Support
- Level Gauge
DETAILS:

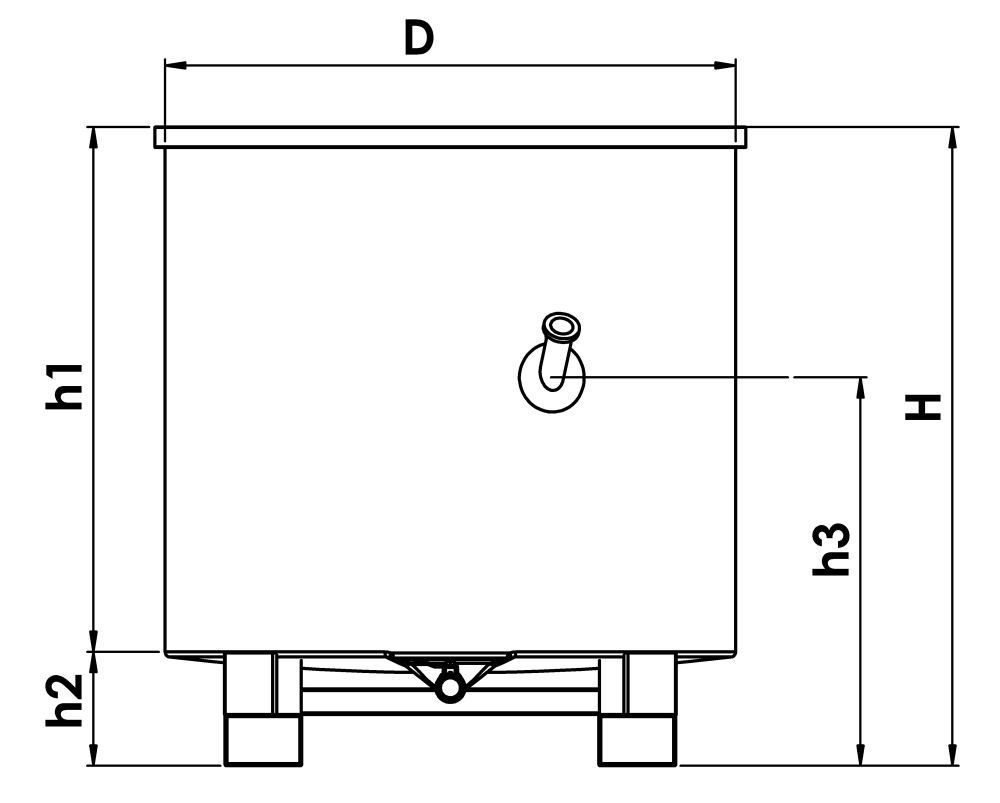

| CAPACITY | BOTTOM | BASE | VOLUME DIM (DIA x HGT) |
BASE HEIGHT |
TOTAL DIM (DIA x HGT) |
DISCHARGE PORT (TC) |
AGITATOR PORT (TC) |
WALL & BOTTOM THICKNESS |
| 500 L | ROUND | FORKLIFT / PALLET | 796x1020 mm | 250 mm | 796x1270 mm | 2.0" | 2.0" | 2 mm |
| 700 L | ROUND | FORKLIFT / PALLET | 955x1020 mm | 250 mm | 955x1270 mm | 2.0" | 2.0" | 2 mm |
| 1000 L | ROUND | FORKLIFT / PALLET | 1115x1020 mm | 250 mm | 1115x1270 mm | 2.0" | 2.0" | 2 mm |
| 1500 L | ROUND | FORKLIFT / PALLET | 1275x1270 mm | 300 mm | 1275x1570 mm | 2.0" | 2.0" | 2 mm |
| 2000 L | ROUND | FORKLIFT / PALLET | 1433x1270mm | 300 mm | 1433x1570 mm | 2.0" | 2.0" | 2 mm |
