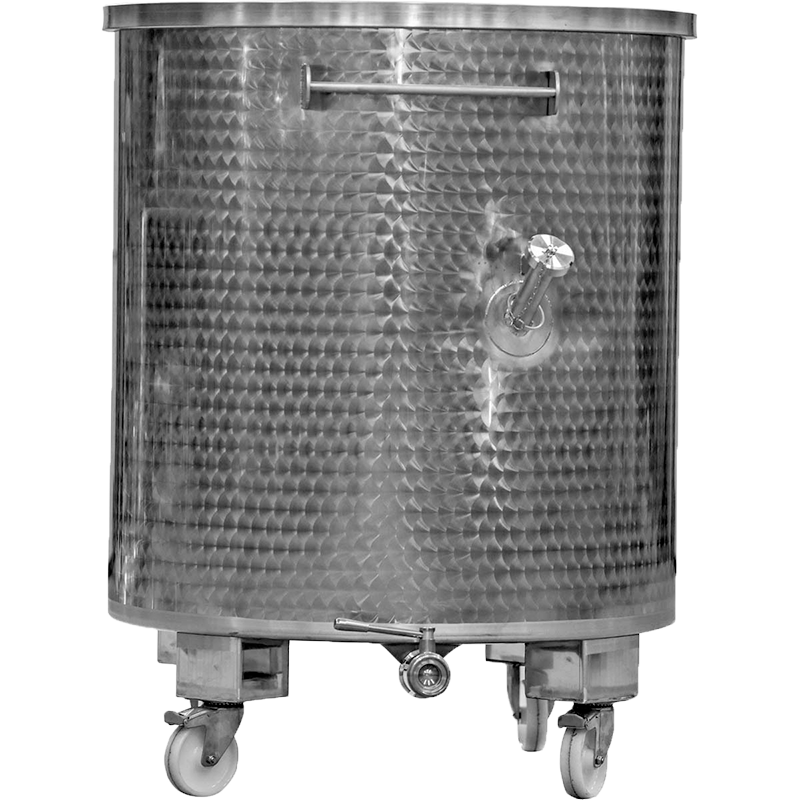

Our Round Bottom Mixing Tank with Agitator Port is constructed entirely of AISI 304 stainless steel with a mirror polished interior (BA/3D) and circle polished exterior. The tank has a wheeled base with locking casters for easy transport and is outfitted with an additional port intended for use with an external agitator (not included).
Each tank comes standard with the following features:
CALL TO ORDER
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly they may be received with very minor scratches not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in working order.
WMD Equipment - Your Trusted Source for Food and Beverage Processing Equipment
Each tank comes standard with the following features:
- Round Bottom with molded pocket for full discharge
- Wheeled base with locking casters and pull handle for easy tank movement
- Removable dust cover
- Full "Total" Drain Port with Tri-Clamp Ball Valve
- Agitator Port with Tri-Clamp Ball Valve
- Portable Tank Agitator AVAILABLE HERE
- AISI 304 Stainless Steel Construction
- SEE BELOW FOR COMPLETE SPECIFICATIONS
- CAUTION - Tanks on Wheels are NOT designed for or intended to be moved while full
- Cooling Jacket and Thermometer
- 500L to 1000L has 400mm Jacket
- 1500L has 900mm Jacket
- 2000L has 1000mm Jacket
- Sample Port with Valve
- Sack Support
- Level Gauge
DETAILS:

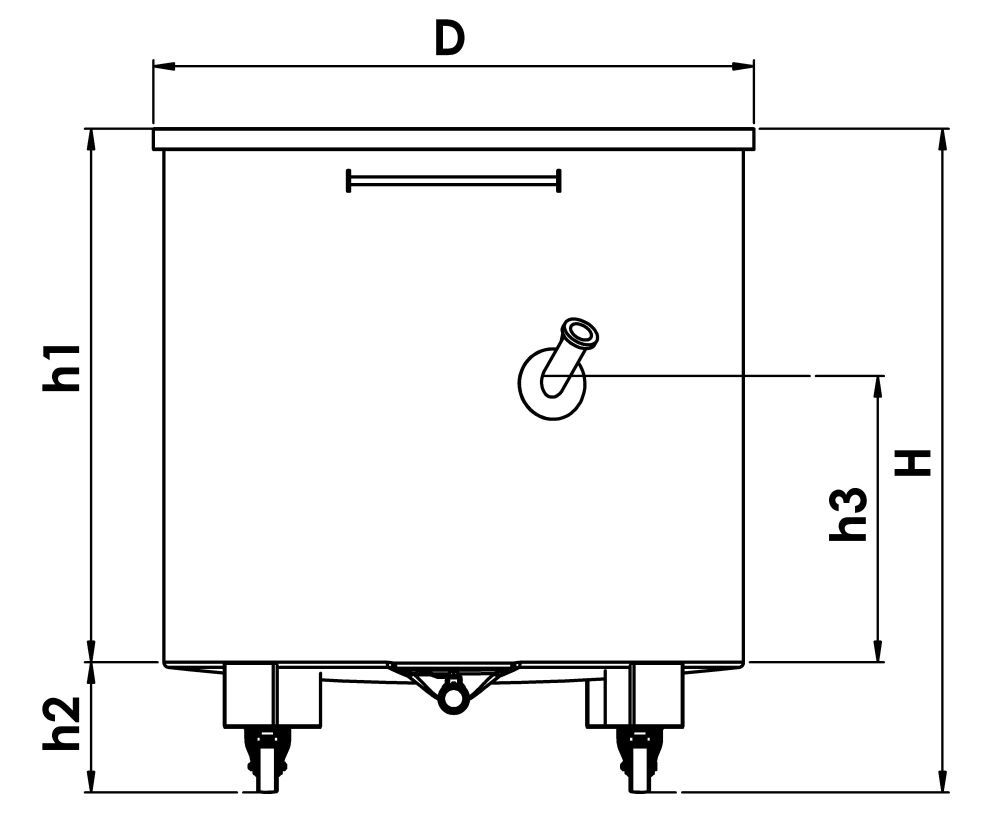

| CAPACITY | BOTTOM | BASE | VOLUME DIM (DIA x HGT) |
BASE HEIGHT |
TOTAL DIM (DIA x HGT) |
DISCHARGE PORT (TC) |
AGITATOR PORT (TC) |
WALL & BOTTOM THICKNESS |
| 500 L | ROUND | WHEELED | 796x1020 mm | 300 mm | 796x1320 mm | 2.0" | 2.0" | 2 mm |
| 700 L | ROUND | WHEELED | 955x1020 mm | 300 mm | 955x1320 mm | 2.0" | 2.0" | 2 mm |
| 1000 L | ROUND | WHEELED | 1115x1020 mm | 300 mm | 1115x1320 mm | 2.0" | 2.0" | 2 mm |
| 1500 L | ROUND | WHEELED | 1275X1270 mm | 400 mm | 1115x1670 mm | 2.0" | 2.0" | 2 mm |
| 2000 L | ROUND | WHEELED | 1433x1270 mm | 400 mm | 1275x1670 mm | 2.0" | 2.0" | 2 mm |
