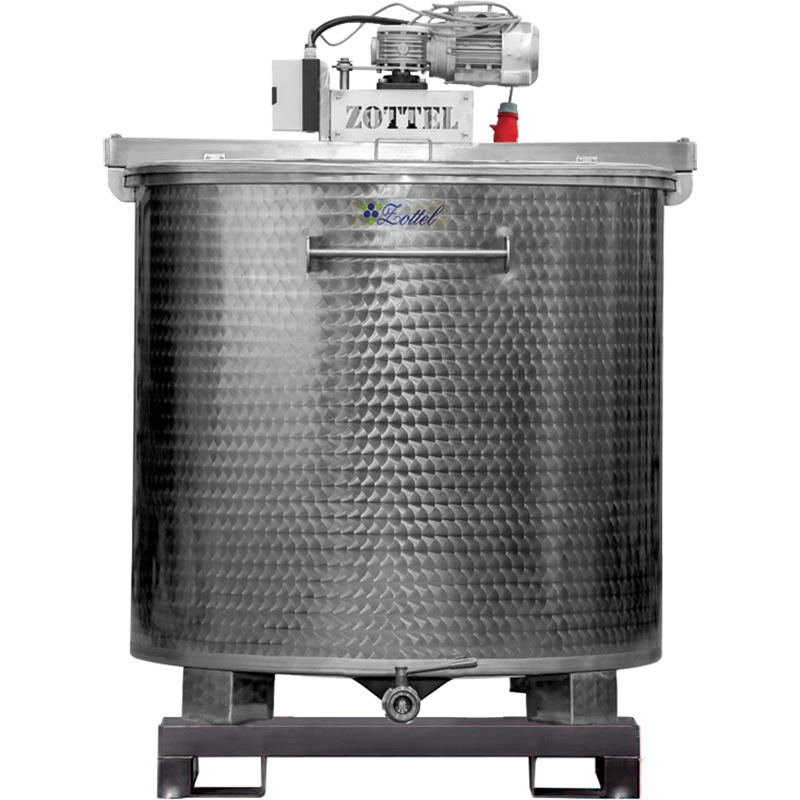

Our Round Bottom Mixing Tank is constructed entirely of AISI 304 stainless steel with a mirror polished interior (BA/3D) and circle polished exterior. The tank is equipped with a detachable motor and internal mixer, and is secured to a stainless steel forklift base outfitted for easy transport via forklift or pallet jack.
Each tank comes standard with the following features:
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly they may be received with very minor scratches not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in working order.
WMD Equipment - Your Trusted Source for Food and Beverage Processing Equipment
Each tank comes standard with the following features:
- AISI 304 Stainless Steel Construction
- Round Bottom with molded pocket for full discharge
- Welded forklift base
- Internal mixer for blending or stirring contents
- Detachable electric motor with top-mount bracket
- Removable hinged two-piece cover
- Full "Total" Drain Port with Tri-Clamp Ball Valve
- Mixer rotates at approximately 150-200 RPM's, depending on model (motor operations at approximately 1,650 RPM's)
- Custom configurations for RPM's (Mix vs Blend), blade sizes, location & count, CPS (Viscosity), available upon request
- Motors:
- 500L - 0.75HP, 110v 60hz 1-Ph, 10A - Intended to mix products up to 4,000
- 700L & 1000L - 1HP 110v 60hz 1-Ph, 15A - Intended to mix products up to 4,000 and 2,500 CPS, respectively
- 1500L & 2000L - 2HP 220v 60hz 1-Ph, 10A - Intended to mix products up to 2,500 and 1,500 CPS, respectively
- SEE CHART BELOW FOR ADDITIONAL SPECIFICATIONS
- Cooling Jacket and Thermometer
- 500L to 1000L has 400mm Jacket
- 1500L has 900mm Jacket
- 2000L has 1000mm Jacket
- Sample Port with Valve
- Sack Support
- Level Gauge
- 316 Stainless
- Food Grade Polishing
- Conical Bottom instead of Round Bottom
- Top Manway Door instead of Hinged Cover
- Custom configurations for RPM's (Mix vs Blend), blade sizes, location & count, CPS (Viscosity), available upon request
DETAILS:
| CAPACITY | BOTTOM | BASE | VOLUME DIM (DIA x HGT) |
BASE HEIGHT |
TOTAL DIM (DIA x HGT) |
DISCHARGE PORT (TC) |
WALL & BOTTOM THICKNESS |
| 500 L | ROUND | FORKLIFT / PALLET | 796x1020 mm | 250 mm | 796x1650 mm | 2.0" | 2 mm |
| 700 L | ROUND | FORKLIFT / PALLET | 955x1020 mm | 250 mm | 955x1650 mm | 2.0" | 2 mm |
| 1000 L | ROUND | FORKLIFT / PALLET | 1115x1020 mm | 250 mm | 1115x1650 mm | 2.0" | 2 mm |
| 1500 L | ROUND | FORKLIFT / PALLET | 1275x1270 mm | 300 mm | 1275x2000 mm | 2.0" | 2 mm |
| 2000 L | ROUND | FORKLIFT / PALLET | 1433x1270 mm | 300 mm | 1433x2000 mm | 2.0" | 2 mm |
